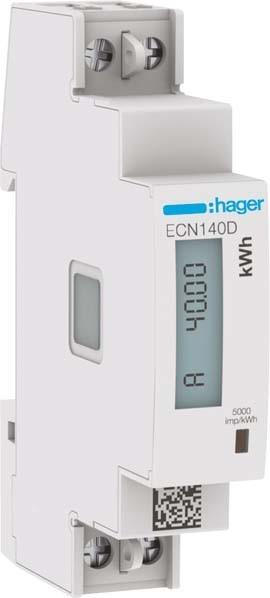

Single-phase energy meter, direct 40A, 1M. The energy meter features the following accuracy classes: Active energy Class B according to DIN EN 50470-3, Active power Class 1 according to IEC 62053-21, Active power Class 1 according to IEC 61557-12, and Reactive power Class 2 according to IEC 62053-23. It is suitable for measuring energy consumption in all network systems. The digital display shows the consumed active energy (kWh) with up to 7 digits, including decimal places. Additional measurement values can be output via an IR interface. The measurement data is periodically stored.
measurement module | Watt |
Maximum current | 40 A |
Energy meter type | Energy meter |
mounting style | Top-hat rail |
Item number | 32036977 |
Manufacturer | Hager |
Category | Energy monitors |
Manufacturer no. | ECN140D |
Release date | 28.6.2023 |
Energy meter type | Energy meter |
mounting style | Top-hat rail |
measurement module | Watt |
Maximum current | 40 A |
Display type | Digital |
Tariff execution | Single tariff |
Pulse output | Optical |
Polar type | 1-phase |
Accuracy class | B |
Protection type (IP code) | IP20 |
Country of origin | Poland |
CO₂-Emission | |
Climate contribution |
Height | 92 mm |
Width | 18 mm |
Length | 9.80 cm |
Width | 8.30 cm |
Height | 5.80 cm |
Weight | 113 g |
