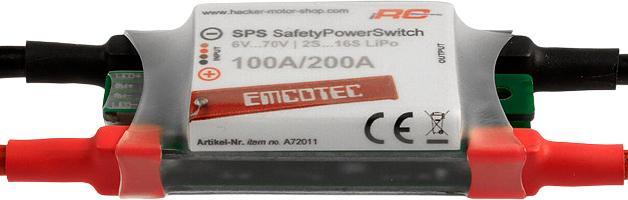

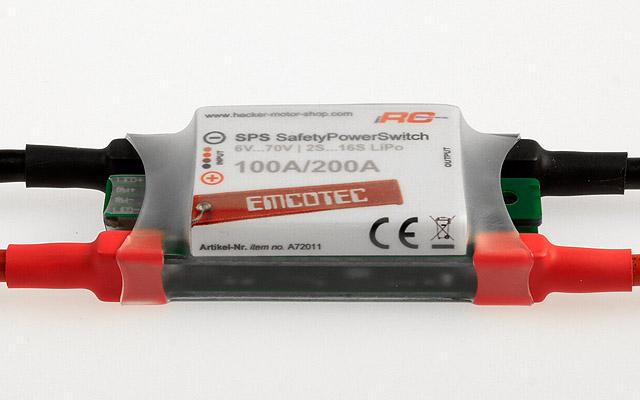

Hacker Safety switch SPS SafetyPowerSwitch 70V 100/200A

Ratings
BrandMore from Hacker
Currently out of stock
Free shipping starting at 50.–

Product details

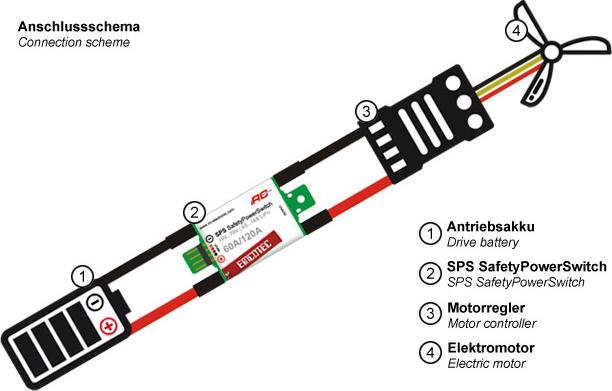

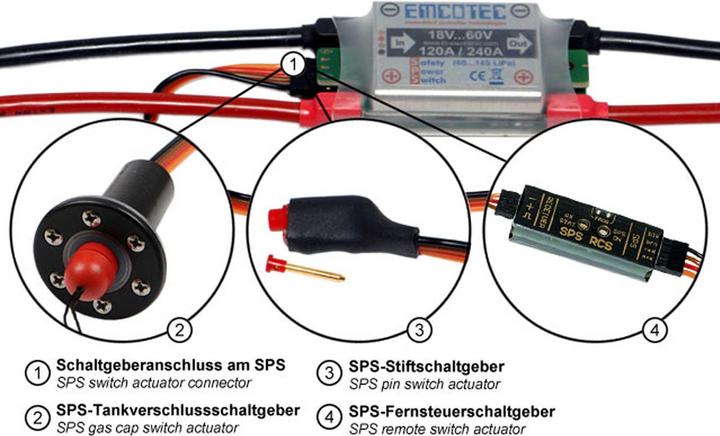

Electronic safety switch for electric drives. An anti-flash function prevents sparks when the battery is connected. The SPS SafetyPowerSwitch disconnects the motor from the drive battery, meaning the drive remains inactive and non-hazardous until it is switched on. Suitable for 2S to 16S LiPo batteries (6V to 70V). It supports 100A continuous current and 200A peak current, making it ideal for F3A-X models with up to 10kW motor power. Connecting cables for the battery and ESC consist of two silicone cables, each with a 6mm² cross-section. To operate the SPS SafetyPowerSwitch, an additional SPS switch is required (see accessories tab). This PLC switch sensor is not included in the scope of delivery. The following PLC switch sensors are available: PLC tank closure switch sensor (green LED), PLC tank closure switch sensor (blue LED), PLC pin switch sensor, and PLC remote control switch sensor.

Scope of delivery includes the SPS SafetyPowerSwitch 70V 100/200A safety switch and one quick reference guide.

Suitable batteries (LiPo): 2S to 16S LiPo
Voltage range: 6V to 70V
Current consumption (switched off): max. 0.5mA, typ. 0.25mA
Continuous current: 100A
Maximum peak current: 200A
Power loss at 100A: approximately 7.3W
Dimensions: 65 x 30 x 16mm
Weight: 71g.

Key specifications

Engine type
Accessories and spare parts
Item number
13333084

General information

Manufacturer
Hacker
Category
RC motors
Manufacturer no.
A72011-1
Release date
13.6.2020

Colour

Colour
Black, Red

Engine properties

Engine type
Accessories and spare parts
Power consumption
200 A

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
3 cm
Width
6.50 cm
Height
1.60 cm
Diameter
30 mm
Weight
71 g
