GW Instek GDP-100 Probe 100MHz 100:1, 200:1, 500:1, 1000:1 7000V

Oscilloscope
Ratings
BrandMore from GW Instek
Delivered between Sat, 13.9. and Tue, 30.9.
7 pieces in stock at supplier
free shipping

Product details

The GDP-100 probe is a highly advanced measuring instrument designed for precise high-voltage measurements in electronics development and testing. With a bandwidth of 100 MHz and a rated voltage of up to 7000 V, this probe is ideal for use with various oscilloscopes, particularly the GDS-3000/2000A/2000E/1000A-U/1000-U series. The probe offers high accuracy and reliability in frequency measurement and is equipped with various connection options, including BNC and banana plugs. Its robust construction and the use of high-quality materials ensure a long lifespan and safe handling, even in demanding applications. The package includes all necessary accessories to start measuring immediately, making the GDP-100 a practical choice for professionals in the electronics industry.

  • High-voltage differential probe with a rated voltage of 7000 V
  • Maximum input voltage of 6500 V (DC + ACp-p)
  • Compatible with GDS-3000/2000A/2000E/1000A-U/1000-U series oscilloscopes
  • Comprehensive accessories, including BNC cable and high-voltage test leads
  • UL certified for safety in CAT II and CAT III applications.

Key specifications

measurements
Suspense
Item number
30122119

General information

Manufacturer
GW Instek
Category
Metrology
Manufacturer no.
GDP-100
Release date
25.4.2023

Colour

Colour
Black

Metrology properties

Type of measuring technique
Oscilloscope
measurements
Suspense
Min. input voltage
1000 V
Max. input voltage
7000 V

Voluntary climate contribution

CO₂-Emission
Climate contribution

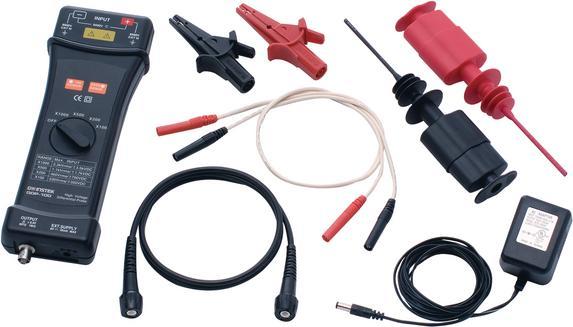

Scope of delivery

Scope of delivery
10A, AC adapter, Alligator clip, Banana Plug to Banana Plug Silicone Wire, BNC to BNC Cable, CAT III, HV IC Clip, Max 6500V (DC+ACp-p), Test lead UL 1000V, UL 1000V CAT II

Product dimensions

Length
285 mm
Width
278 mm
Height
50 mm

30-day right of return
24 Months Warranty (Bring-in)
