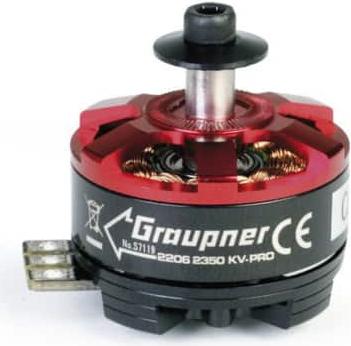

Graupner Electric motor Ultra Pro 2206, 2350 KV, brushless motor left hand thread
Product details
High-performance motor for professionals for multicopters. Hand-wound brushless outrunner motors with a special multi-winding design for optimal winding fill and thus optimal efficiency as well as improved cooling. Specially shaped, thicker, and larger N52H magnets provide up to 30% more torque and good temperature resistance. Particularly stable and thicker motor shaft. A 2206 motor stator has been installed. The motor size corresponds to the previous Graupner 2806 sizes, meaning 28 mm outer diameter with a 6 mm stack height. Optimal power-to-weight ratio. Reduced mass inertia due to the new M3 prop mounting. PCB for easy soldering of the connection cables. The set includes a set of screws and a prop adapter for securing the Graupner 3D PROP against twisting. Note: Graupner specifies a connection with 2 mm gold contacts for these motors. In fact, neither connectors nor cables are included in the delivery. The connection is made, as shown in the illustration, via PCBs for self-soldering your cables.
Technical specifications:
- Magnet: N52H
- Operating voltage range [V]: 7.4...15.2 V
- Weight approx. [g]: 35 g
- Height [mm]: 33 mm
- Weight [g]: 35 g
- Number of LiPo, Lilo cells: 2 - 4
- Number of poles: 14
- Nominal voltage [V]: 14.8 V
- Housing length: 20 mm
- Recommended propeller: 5 - 6.5
- Shaft diameter [mm]: 5 mm
- Housing diameter: 28 mm
- RPM/Volt [kV]: 2350
- Brushless: Yes
- Stator: 2206.
