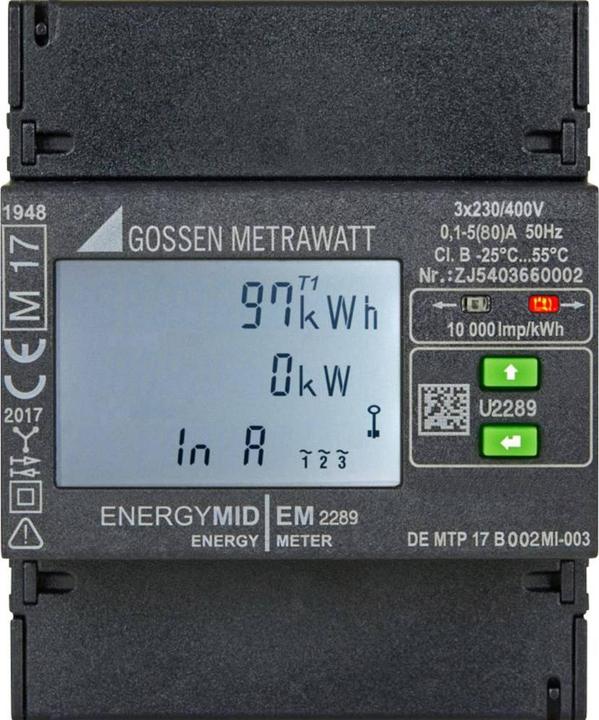

Gossen Metrawatt EM2289 S0 Three-phase cz

EnergyMID EM2289 - Multifunctional energy meter for 4-wire networks.

Applications
The calibrated energy meter can be used for recording and billing of active energy in industry, households, trade, and building services. The transmission of the values to recording, billing, and optimization systems, as well as building automation and control technology, is carried out via a programmable pulse output.

• Energy recording in industry for individual lines or machines
• Measurement of renewable energies from photovoltaic and wind energy plants
• Recording and billing of consumption for campsites, shopping centers, residential complexes, and boat docks
• Energy metering for hotels, congress centers, and trade fairs
• Internal cost allocation for timeshare apartments and sublet industrial buildings
• Consumption billing in business centers
• Set-up of energy metering systems
• Remote transmission of consumption values and cost billing

Technical features

• Design for 4-wire networks, 400V
• 5(80) A direct connection
• Ultra-compact housing 4 TE (72 mm) with integrated interface
• Fast error detection by color change on the display (e.g., rotating field direction, phase failure, or overload)
• Accuracy class B for industry and commerce, as well as increased requirements in households
• Suitable for billing purposes thanks to initial calibration according to MID ex works (conformity assessment procedure module B+D)
• Measurement of energy consumption and energy output thanks to 4 quadrant measurement
• Flexible communication via integrated universal pulse output 2x S0 with adjustable pulse rate, duration, and selectable voltage range
• High-contrast three-line LC display (42 x 28 mm) with LED backlighting
• 8 tariff inputs adaptable to future tariff structure on the energy market: 4 tariffs (hardware controlled as standard) with bus, additionally 4 tariffs (software controlled)
• Tamper protection thanks to sealable cover and parameter lock.
