Gossen Data logger for energy and power quality

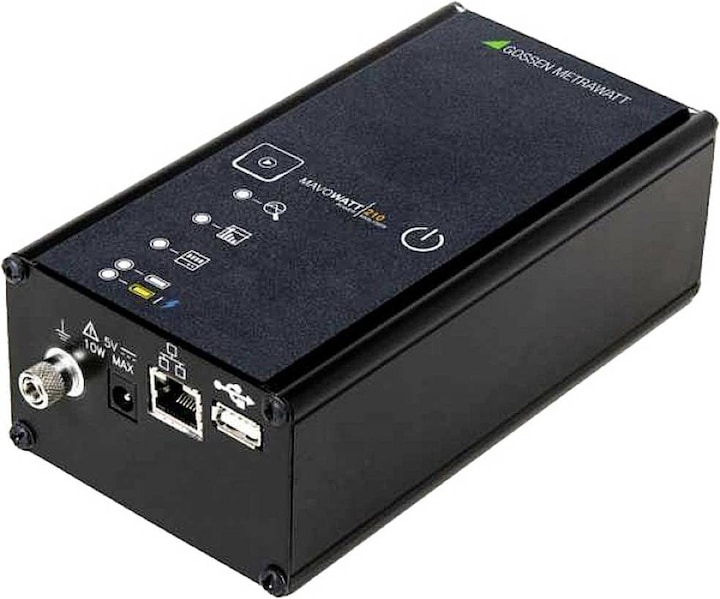

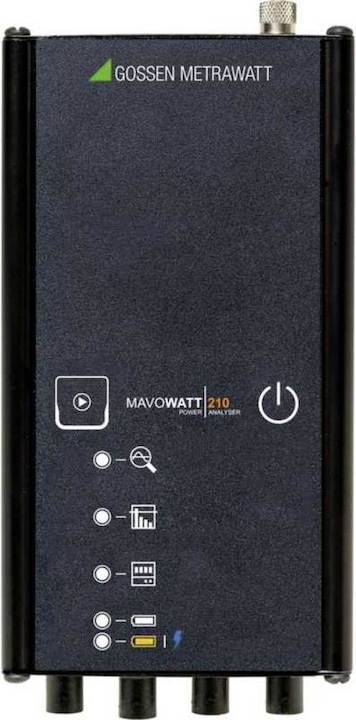

The MAVOWATT 210 records all relevant measured variables that are crucial for ensuring the quality of the energy supply. Since it is a bidirectional power meter, both the generation side and the consumer side are measured based on the power flow for use in alternative energy applications. Power quality problems such as voltage sags, voltage dips, supply voltage overshoots and voltage interruptions can be detected with a resolution of 1/2 cycle according to IEC 61000-4-30. Harmonics are recorded according to IEEE 519-2014/IEC 61000-4-7. The integrated web server of the MAVOWATT 210 facilitates the configuration of the device and enables real-time data checking (remote control). The web server can be accessed from any commercially available terminal via the network. For external data analysis via Dran-View, the data can be exported via the integrated USB port or downloaded via web browser. With the Dran-View XP software, you can conveniently analyze, compare and contrast the recorded events afterwards and present them clearly in reports.
