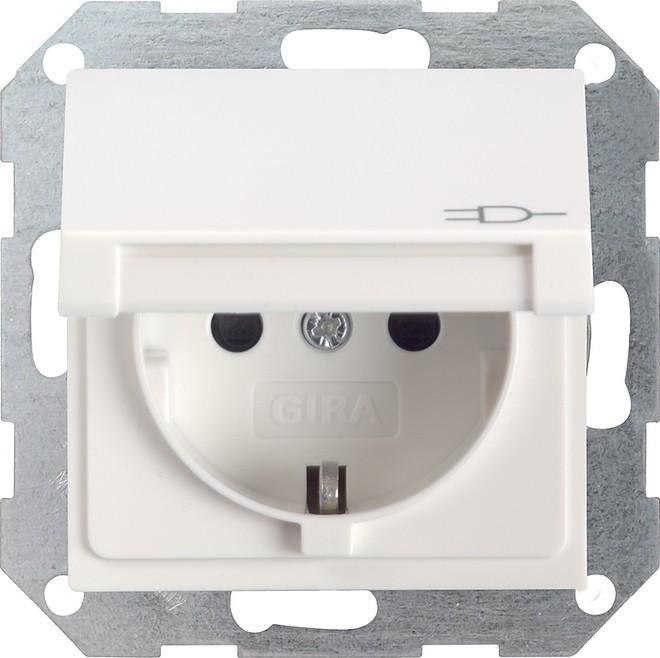

Gira SCHUKO KD + SH SRK System 55 Pure white 272403

Gira Schuko socket outlet 272403

Manufacturer: Gira
Designation: Schuko socket outlet pure white
Type: 272403
Design: Schuko
Protective contact: Yes
Round protective conductor contact: No
With signal lamp: No
With integrated USB power supply: No
Number of units: 1
Number of modules (with modular design): 1
Imprint/labelling: Without
Connection type: Screw terminal
With hinged cover: Yes
With increased touch protection: Yes
Text field/labelling area: No
Colour: White
RAL-number (similar): 9010
Metallic colour: No
Transparent: No
Lockable: No
Ejector mechanism: No
Insulated installation: No
With function lighting: No
With orientation light: No
Overvoltage protection: No
Residual current protection: No
With microfuse: No
Special power supply: Without special power supply
Mounting type: Flush-mounted
Mounting type: Claw/screw mounting
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Other
Finish: Glossy
Antibacterial treatment: No
With on/off switch: No
With loop-through function: No
Twisted central insert: No
Rated current: 10 A
Rated voltage: 230 V
Frequency: 50 Hz
Suitable for protection class (IP): IP20
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
Cover: Central plate
For "difficult conditions" (according to VDE): No

Gira Schuko socket outlet 272403: further details
Schuko socket outlet 16 A 250 V~ with hinged cover, integrated increased contact protection (shutter) and symbol screw terminals, pure white glossy.

Notes: Cover frames (1- to 5-gang) from the Standard 55 and Gira E2 switch ranges in conjunction with the sealing set are also suitable for mounting flush-mounted Schuko socket outlets with hinged cover, water-protected to IP44. Increased contact protection in accordance with DIN VDE 0620-1.
