Product details

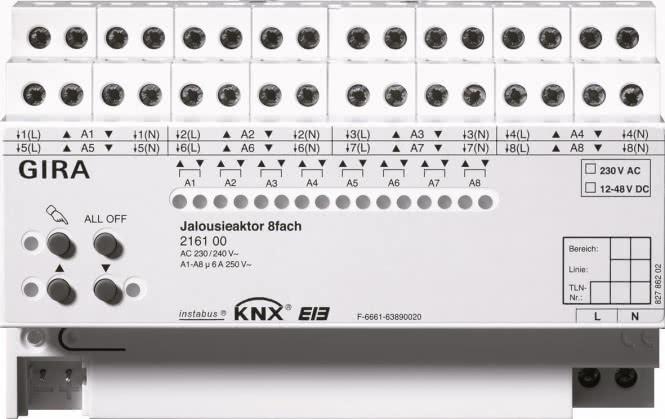

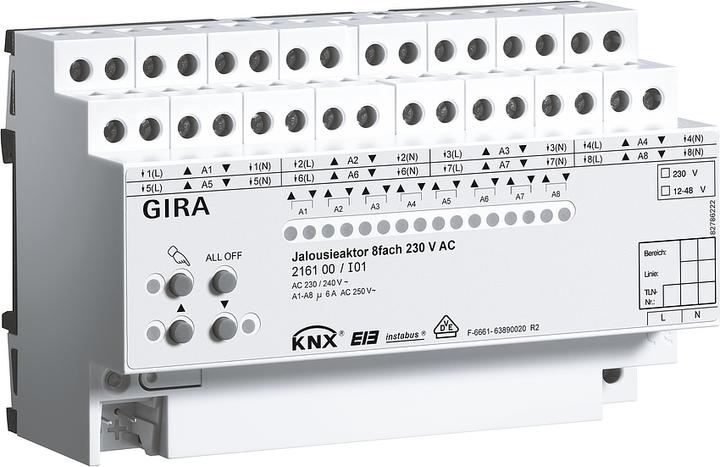

The Gira Shutter Actuator 216100 is a highly advanced roller shutter actuator specifically designed for integration into KNX/EIB bus systems. With the capability to independently control up to eight shutter outputs, this device offers a flexible solution for automating electrically operated blinds, roller shutters, awnings, and similar applications. The shutter actuator can be operated with both mains voltage of 230 V and low voltage of 12 to 48 V, making it versatile. Installation is done on a DIN rail, which facilitates integration into existing systems. Additionally, manual operation allows for manual control, while the integrated bus coupling ensures easy connection to the KNX system. The shutter actuator is suitable for indoor use and meets the IP21 protection rating, which protects it from splashes and solid foreign objects. The VDE approval guarantees compliance with high safety standards.
- Independent control of up to 8 shutter outputs
- Automatic load time detection for AC 230 V drives
- Adjustable behavior during bus voltage failure and recovery
- Separately parameterizable travel times with extension option
- Integrated bus coupling for easy KNX integration.
