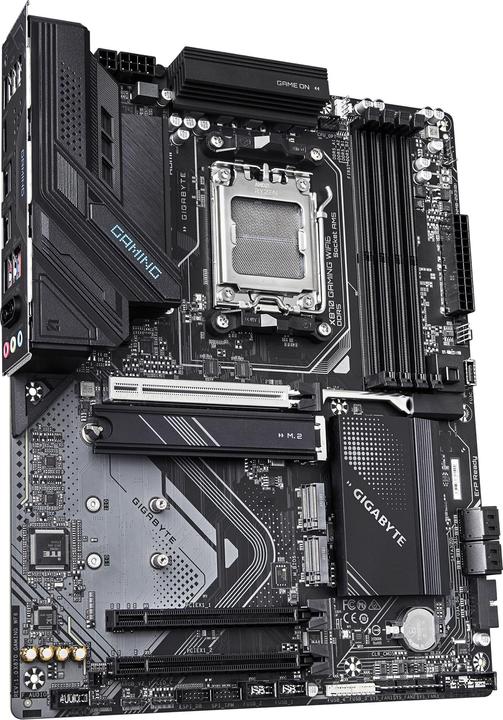

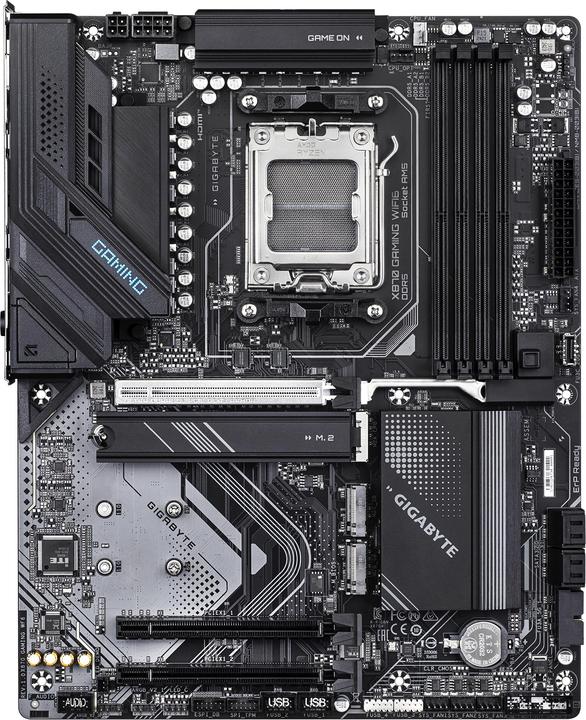

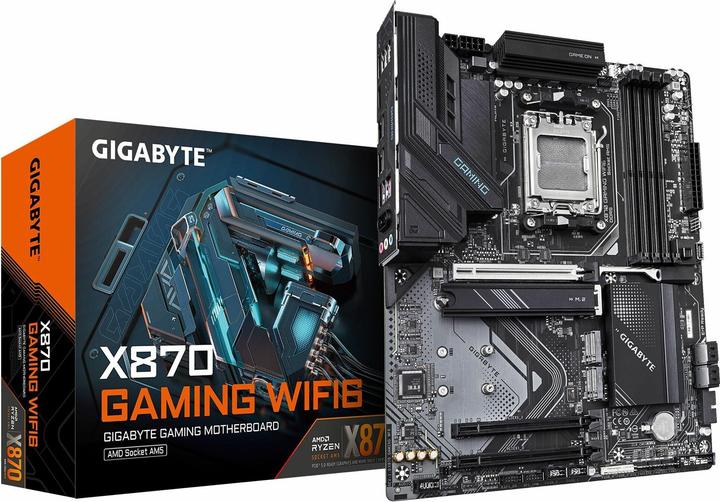

Gigabyte X870 GAMING WIFI6
AM5, AMD X870, ATXtonight with flash delivery
to check if flash delivery is available to you.
Product details
When only the fastest is good enough, an AMD X800 series motherboard delivers. With USB 4.0 onboard and robust overclocking capabilities, fast dual-channel DDR5 memory support, AMD EXPO technology and PCIe 5.0 support for graphics and NVMe, you can play the most demanding games and realise your biggest projects with the revolutionary performance of an AMD X800 series motherboard and AMD Ryzen 9000, 8000 and 7000 series processors.
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (3x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Power-On Button, Reset button, Trusted Platform Module |
Item number | 49827409 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | X870 GAMING WF6 |
Release date | 30.9.2024 |
Sales rank in Category Motherboards | 97 of 974 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD X870 |
Mainboard features | Power-On Button, Reset button, Trusted Platform Module |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory form factor | U-DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5-5200, DDR5-5600 |
Max. RAM OC | 8000 MHz |
Supported memory speed | 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz, 7600 MHz, 7800 MHz, 8000 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

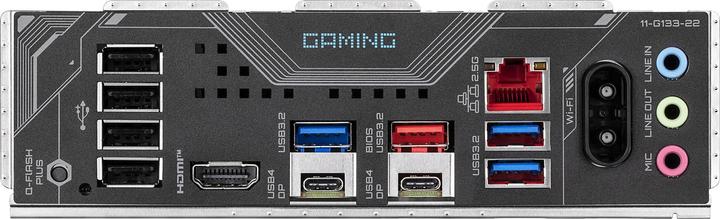

Video connections | 2 x USB-C, HDMI (1x) |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek 2.5GbE LAN |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1220-VB |
Audio channel | 7.1 Channel |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCIe (3x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (Gen 3) (2x), PCI Express x16 (Gen 5) (1x), PCI Express x4 (2x) |
PCI express version (max.) | 5 |
Number of fan connector | 4 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | LAN bandwidth management software, Norton® Internet Security (OEM version) |
Length | 244 mm |
Width | 305 mm |
Height | 35 mm |
Weight | 2230 g |
Length | 34 cm |
Width | 27 cm |
Height | 8 cm |
Weight | 1.68 kg |
