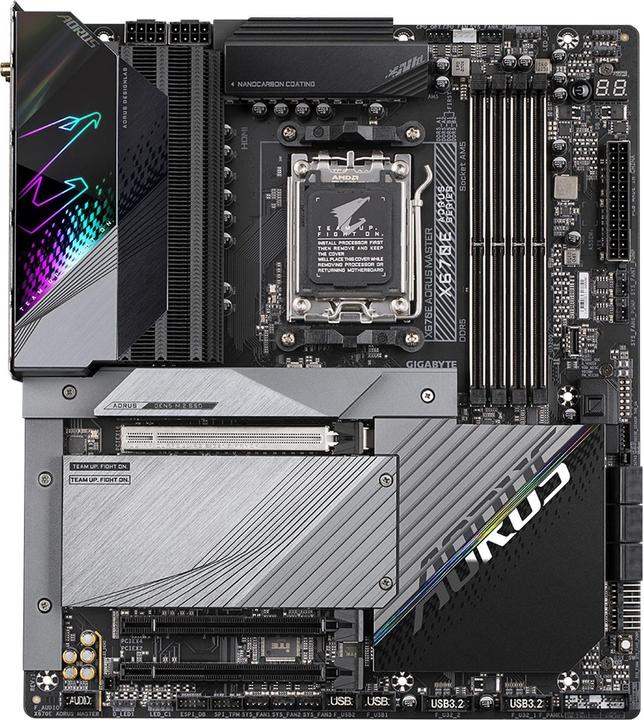

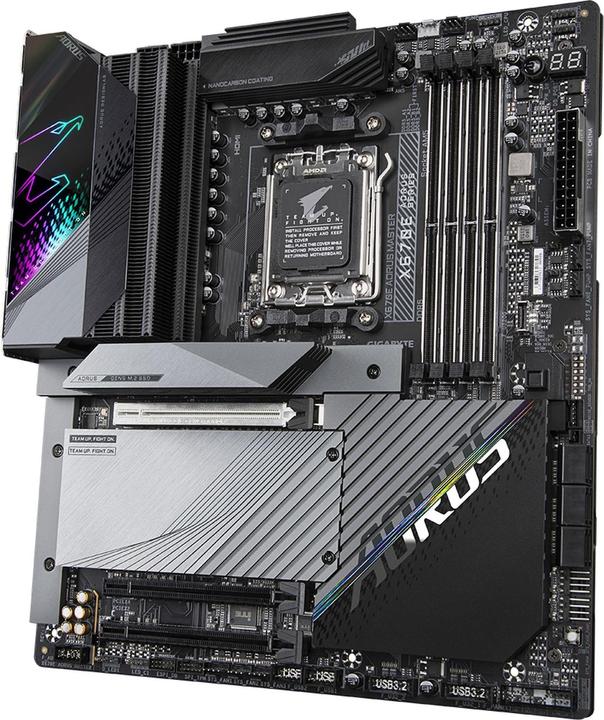

The GIGABYTE X670E AORUS Master is equipped with the high-end X670E chipset for AMD's Ryzen 7000 series processors and offers numerous features for enthusiasts and gamers. The Ryzen 7000 series processors require a socket due to support for PCIe 5.0 and enhanced power delivery, which is why the AM5 socket (LGA 1718) is used on the 600 series motherboards. Despite the increased pin count of AM5, the actual size of the socket remains the same as the older generation, allowing most CPU coolers designed for AM4 sockets to be mounted on the motherboard. The motherboard is designed for overclocking and gaming, enabling you to enjoy demanding games. The voltage regulators with a total of 16+2 real and 16+2 virtual phases provide 105 A for stable CPU power delivery, ensuring high clock rates can be maintained over extended periods. Additional features include BIOS Flashback and Clear CMOS, allowing you to regain access to your PC if something goes wrong. As usual, DDR5 RAM can also be pushed to higher clock rates.
Processor family | Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (4x), mSATA (6x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector |
Item number | 22431318 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | X670E AORUS MASTER |
Release date | 22.8.2022 |
Sales rank in Category Motherboards | 329 of 1038 |
Form factor | E-ATX |
Socket | AM5 |
Chipset | AMD X670E |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows, Windows 10 Home |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 8000 MHz |
Supported memory speed | 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Multi-GPU technology | AMD CrossfireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1220-VB |
Audio channel | 7.1 Channel |
Audio Connections | HDMI (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (4x), mSATA (6x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (Gen 3) (1x), PCI Express x16 (Gen 5) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 10 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 1 (4x), USB-C 3.2 Gen 2 (1x) |
Power connectors | 2x 8-pin ATX 12V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 269 mm |
Width | 305 mm |
Height | 30 mm |
Weight | 3330 g |
Length | 35 cm |
Width | 30 cm |
Height | 9 cm |
Weight | 2.94 kg |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Digitec Galaxus

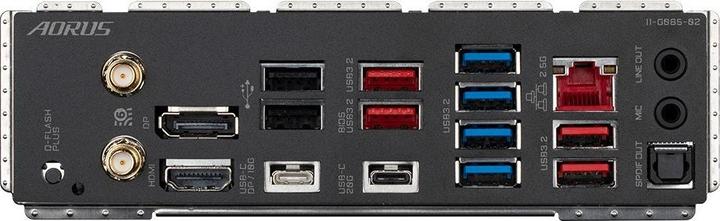

... Two USB-C sockets are embedded in the fixed I/O panel, one delivers data super-fast at 20 Gbit/s, the other can control monitors in alternate mode via DisplayPort. In addition, the X670E Aorus Master offers 4 × USB-A with 10 Gbit/s and 5 Gbit/s each, which share a line to the chipset via a hub chip...
