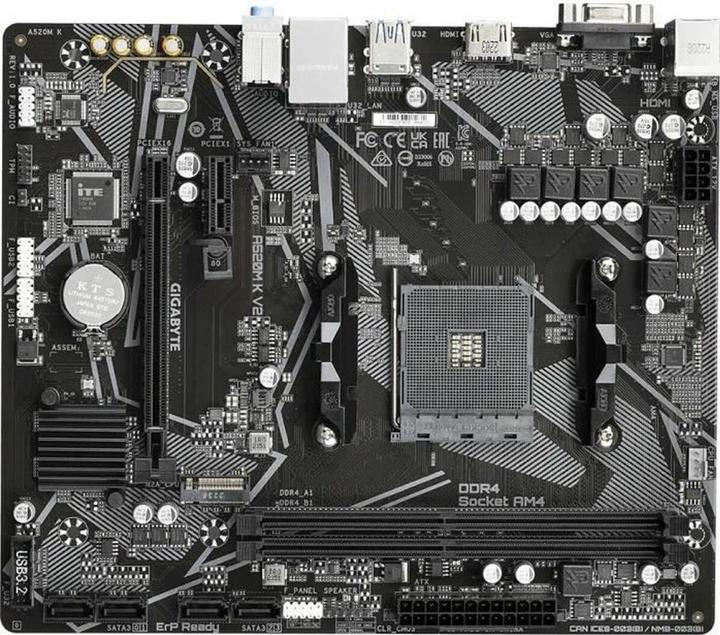

Gigabyte MB GBT AMD AM4 A520M K V2 1.0

AM4, AMD A520, mATX
12Ratings
BrandMore from Gigabyte
Delivered the day after tomorrow
5 pieces in stock
Free shipping starting at 50.–

Product details

Enhance your computer's performance with GIGABYTE's proven motherboard series: AORUS, AERO, and GIGABYTE. With innovative design and cutting-edge features, these boards deliver outstanding performance and reliability. Whether you are a gamer, content creator, or professional user, these series are tailored to your needs, ensuring excellent quality and the latest technologies.

Key specifications

Mainboard features
Clear CMOS Button, Front panel audio connector, Trusted Platform Module
Processor family
AMD 3000 Series, AMD 4000 Series, AMD 5000 Series
Memory form factor
DIMM
Number of memory modules (RAM)
2x
Memory type
DDR4-RAM
Internal connections
M.2 (1x), S-ATA III (4x)

General information

Item number
25033893
Manufacturer
Gigabyte
Category
Motherboards
Manufacturer No.
A520M K V2
Release date
17.7.2025
Sales rank in Category Motherboards
38 of 1093
External links
Manufacturer's site (de)

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
AM4
Chipset
AMD A520
Mainboard features
Clear CMOS Button, Front panel audio connector, Trusted Platform Module
Operating system compatibility
Linux, Windows
BIOS type
UEFI AMI

Processor

Processor family
AMD 3000 Series, AMD 4000 Series, AMD 5000 Series

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2x
Max. memory (RAM)
64 GB
Memory chip
DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2933, DDR4-3200, DDR4-3400, DDR4-3466, DDR4-3600, DDR4-3733, DDR4-3866
Max. RAM OC
5100 MHz
Supported memory speed
1600 MHz, 2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz
Memory type
DDR4-RAM

Graphics properties

Video connections
D-Sub (1x), HDMI (1x)
Video connection version
HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller
Realtek GbE
Max. port speed
1 Gbit/s

Audio

Audio channel
7.1 Channel

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connections
M.2 (1x), S-ATA III (4x)
Expansion slot
PCI Express x1 (1x), PCI Express x16 (1x)
PCI express version (max.)
3
Number of fan connector
1

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x)

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
279.02 kg
Climate contribution
CHF 2.18

Scope of delivery

Scope of delivery
Norton Internet Security, SATA cable

Product dimensions

Length
270 mm
Width
265 mm
Height
50 mm
Weight
675 g

Package dimensions

Length
27.30 cm
Width
25 cm
Height
5.40 cm
Weight
647 g

30-day right of return
36 Months Warranty (Bring-in)
