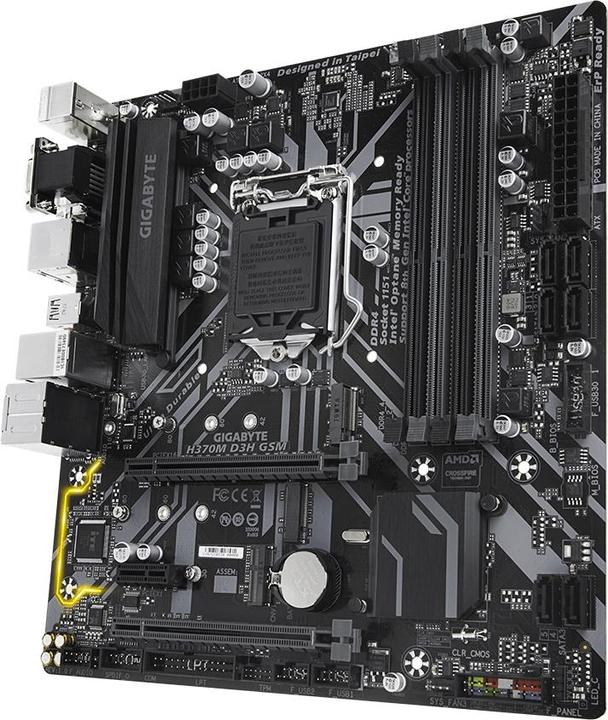

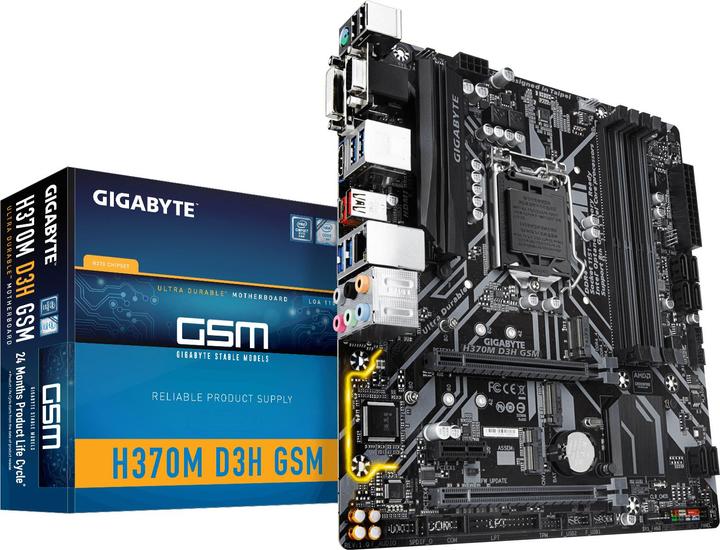

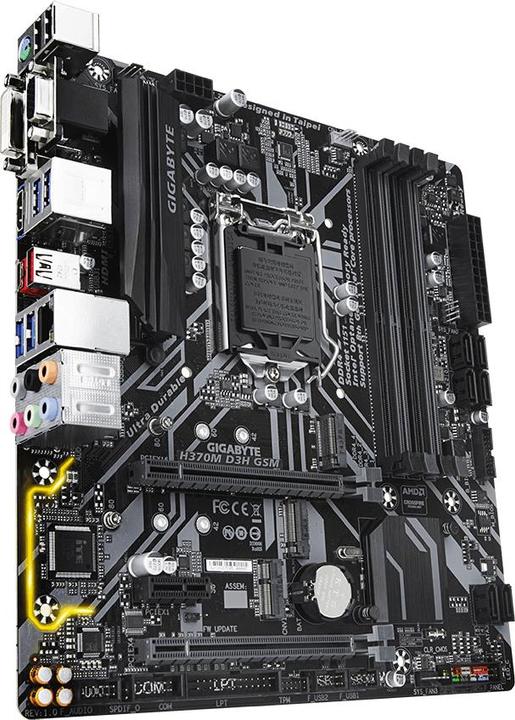

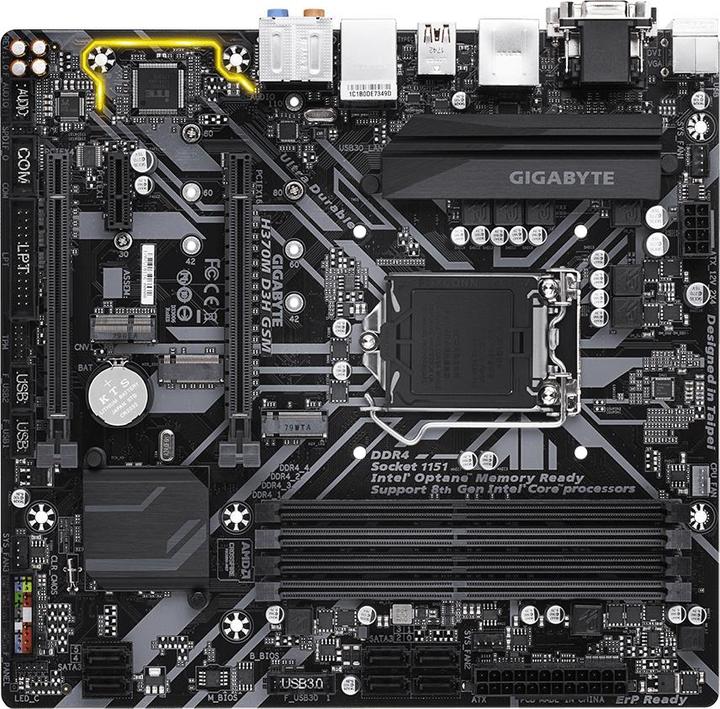

Gigabyte H370M D3H GSM S1151V2 H370 MAT
LGA 1151, Intel H370, mATXProduct details
The Gigabyte H370M D3H GSM is a powerful Micro ATX motherboard designed for use with Intel processors from the 8th and 9th generations. It supports a variety of processors, including Intel® Celeron®, Core™ i3, Core™ i5, Core™ i7, and Pentium®. With a maximum memory capacity of 64 GB DDR4 SDRAM and four DIMM slots, it provides ample capacity for demanding applications and multitasking. The motherboard is equipped with modern storage drive interfaces such as M.2 and SATA III, which support both HDDs and SSDs to ensure high data transfer rates and fast load times. The integrated Gigabit Ethernet interface ensures a reliable network connection, while the audio features with a 7.1-channel audio codec from Realtek deliver an impressive sound experience. The H370M D3H GSM is therefore an excellent choice for building a powerful PC.
- Supports Intel processors from the 8th and 9th generations with LGA 1151 socket
- Maximum memory capacity of 64 GB DDR4 SDRAM
- Integrated M.2 and SATA III interfaces for flexible storage options
- Gigabit Ethernet for fast network connections
- 7.1-channel audio with Realtek ALC892 for high-quality sound.
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Mainboard features | Front panel audio connector |
Item number | 10089270 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | H370M D3H GSM |
Release date | 4.6.2018 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1151 |
Chipset | Intel H370 |
Mainboard features | Front panel audio connector |
BIOS type | UEFI AMI |
Memory form factor | DIMM |
Number of pins | 240 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2133 |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

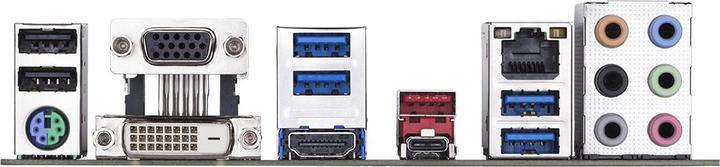

Video connections | HDMI (1x), VGA (1x) |
Network connections | RJ45 (1x) |
Chip | Realtek ALC892 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x) |
Internal connection options | S-ATA III (6x) |
Power connectors | 24-pin ATX |
CO₂-Emission | |
Climate contribution |
Scope of delivery | HD Audio (8-channel) |
Length | 230 mm |
Width | 244 mm |
Height | 230 mm |
Length | 27 cm |
Width | 27 cm |
Height | 6 cm |
Weight | 970 g |
