Product details
The NVIDIA GeForce 3080 12GB is a high-end gaming graphics card featuring 12 GB of GDDR6X memory. This model comes with factory-overclocked frequencies for enhanced performance. Compared to the RTX 20 series, the computing speed of rasterization and ray tracing performance has significantly improved with the RTX 30 series. Additionally, the Ampere generation graphics accelerators support PCI Express 4.0. With a GeForce RTX 3080 12GB, extremely high frame rates in 4K and even smooth gaming in 8K are possible.
Length | 32 cm |
Number of shaders | 8960 x |
Graphics card model | GeForce RTX 3080 |
Video memory clock | 19 GHz |
Max. connected monitors | 4 x |
Max. Video resolution | 7680 x 4320 pixels |
Power consumption | 350 W |
Item number | 18655649 |
Manufacturer | Gigabyte |
Category | Graphics card |
Manufacturer no. | GV-N3080GAMING OC-12GD |
Release date | 10.1.2022 |
Max. connected monitors | 4 x |
PCI Express version | PCIe 4.0 |
Max. Video resolution | 7680 x 4320 pixels |
Expansion card form factor | 3 slots |
LED colour | RGB |
Graphics chip (GPU) | nVidia GeForce |
Graphics card model | GeForce RTX 3080 |
Clock frequency | 1755 MHz |
Boost frequency | 1.78 MHz |
Number of shaders | 8960 x |
Video memory type | GDDR6X |
Storage capacity | 12 GB |
Video memory clock | 19 GHz |
Memory Interface | 384 bits |
Memory Bandwidth | 912 GB/s |
Graphics card cooling system | Active cooler |
OpenGL version | 4.60 |

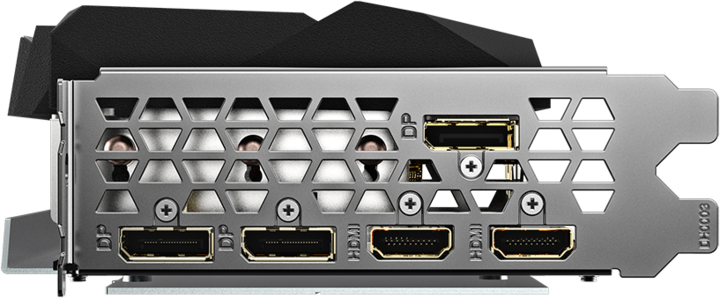

Video connections | DisplayPort (1x), DisplayPort (2x), DisplayPort (3x), HDMI (1x), HDMI (2x) |
HDMI version | 2.1 |
DisplayPort version | 1.4 |
Power consumption | 350 W |
Min. recommended system performance | 750 W |
Power connectors | 2x 8-pin PCI-E |
CO₂-Emission | |
Climate contribution |
Length | 32 cm |
Width | 12.90 cm |
Height | 5.50 cm |
Length | 41.30 cm |
Width | 24.20 cm |
Height | 9.60 cm |
Weight | 1.86 kg |
Specifications may include unverified machine translations.
