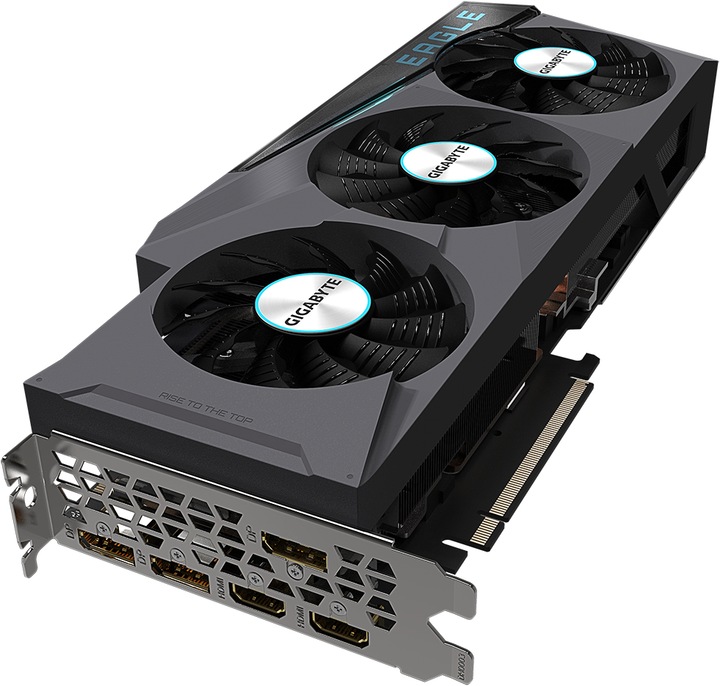

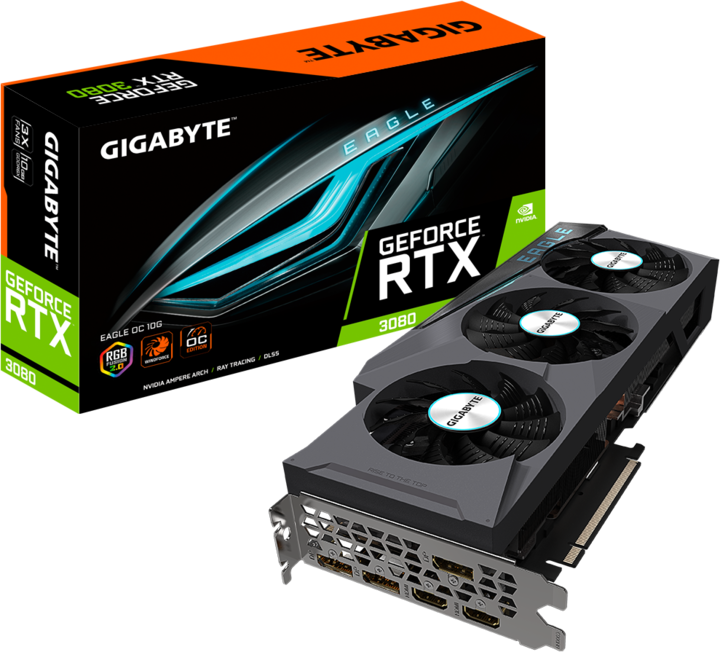

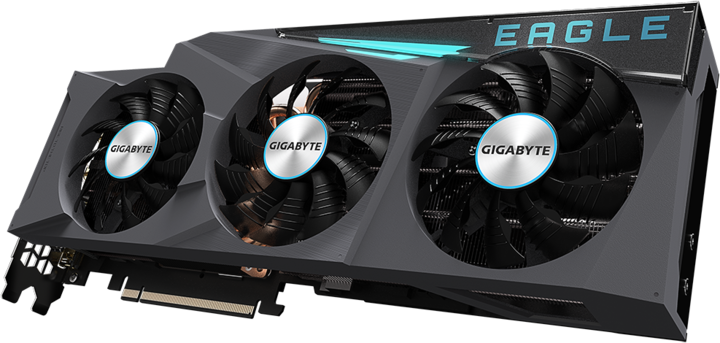

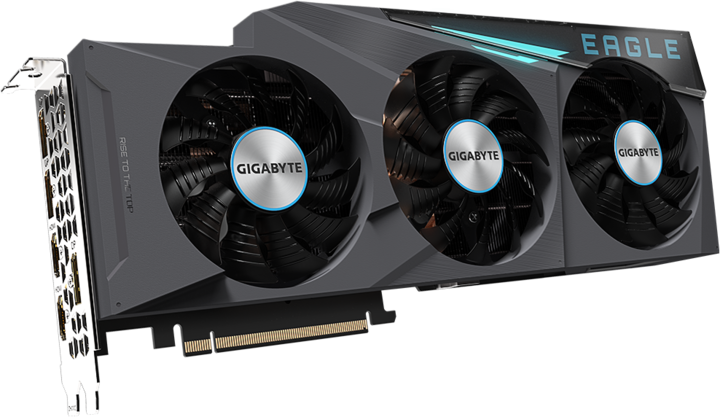

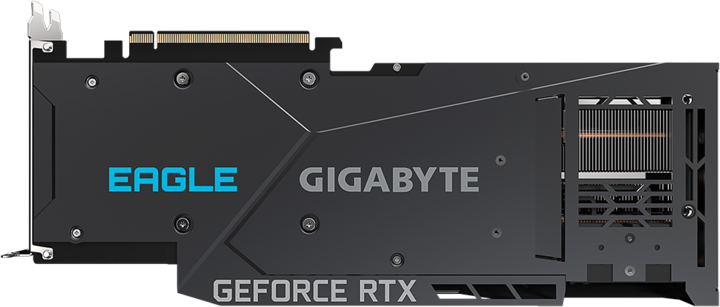

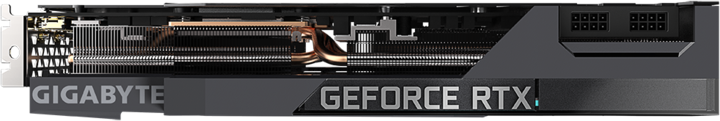

Gigabyte GeForce RTX 3080 EAGLE OC

10 GB
Currently out of stock

Product details

The expanded heatsink design allows airflow through and ensures better heat dissipation. In direct contact with the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer the heat generated by the inner cores to the heatsink. With 16.7 million customizable color options and numerous lighting effects, you can choose lighting effects or synchronize them with other Aorus devices. The graphics card uses an improved power phase design, allowing the MOSFET to operate at lower temperatures. The over-temperature protection design and load balancing for each MOSFET, along with the Ultra Durable certified chokes and capacitors, ensure excellent performance and a longer system lifespan.

Impossible orders

Unfortunately, we are unable to accept orders for this item at this time.

Key specifications

Length
32 cm
Number of shaders
8704 x
Graphics card model
GeForce RTX 3080
Video memory clock
0.02 GHz
Max. connected monitors
4 x
Max. Video resolution
7680 x 4320 pixels
Power consumption
750 W
Item number
13689627

General information

Manufacturer
Gigabyte
Category
Graphics card
Manufacturer no.
GV-N3080EAGLE OC-10GD
Release date
17.9.2020

Graphics card properties

Max. connected monitors
4 x
PCI Express version
PCIe 4.0
Max. Video resolution
7680 x 4320 pixels
Expansion card form factor
3 slots
LED colour
RGB

Graphics processing unit

Graphics chip (GPU)
nVidia GeForce
Graphics card model
GeForce RTX 3080
Clock frequency
1440 MHz
Boost frequency
1755 MHz
Number of shaders
8704 x

Video memory

Video memory type
GDDR6X
Storage capacity
10 GB
Video memory clock
0.02 GHz
Memory Interface
320 bits
Memory Bandwidth
760 GB/s

Cooling properties

Graphics card cooling system
Active cooler
Number of fans
3 x

Graphics card technologies

DirectX version
12
OpenGL version
4.60

Connections

Video connections
DisplayPort (3x)HDMI (3x)
HDMI version
2.1
DisplayPort version
1.4

Power supply

Power consumption
750 W
Min. recommended system performance
750 W
Power connectors
2x 8-pin PCI-E

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
32 cm
Width
5.60 cm
Height
12.80 cm

Package dimensions

Length
40.60 cm
Width
24 cm
Height
9.10 cm
Weight
1.81 kg
