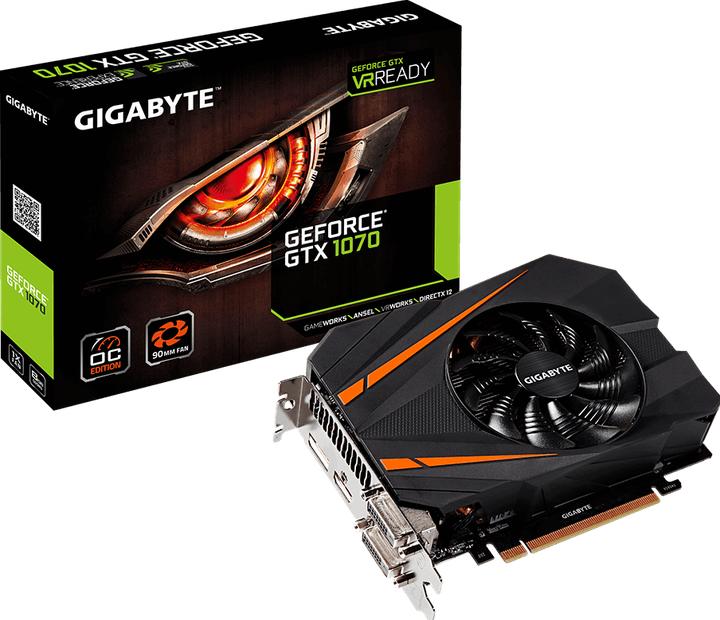

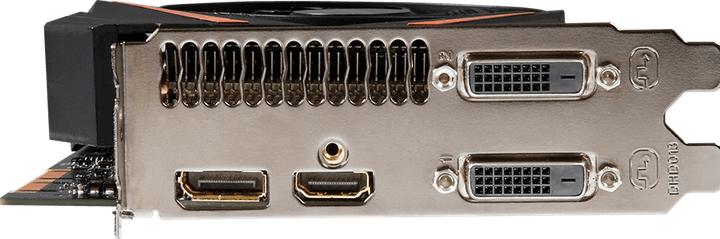

Gigabyte GeForce GTX 1070 Mini ITX OC

The Gigabyte GeForce GTX 1070 Mini ITX OC has a base clock of 1,531 MHz. With GPU Boost 3.0, this can be increased to a boost clock of 1,721 MHz when needed. Through the XTREME software, the Gigabyte GeForce GTX 1070 Mini ITX OC can switch to "OC" mode. The OC mode raises the base clock to 1,556 MHz and the boost clock to 1,746 MHz. The memory clock is set at 4,004 MHz (effectively 8,008 MHz).

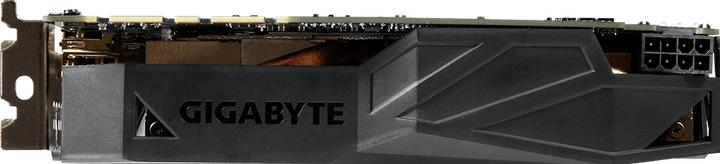

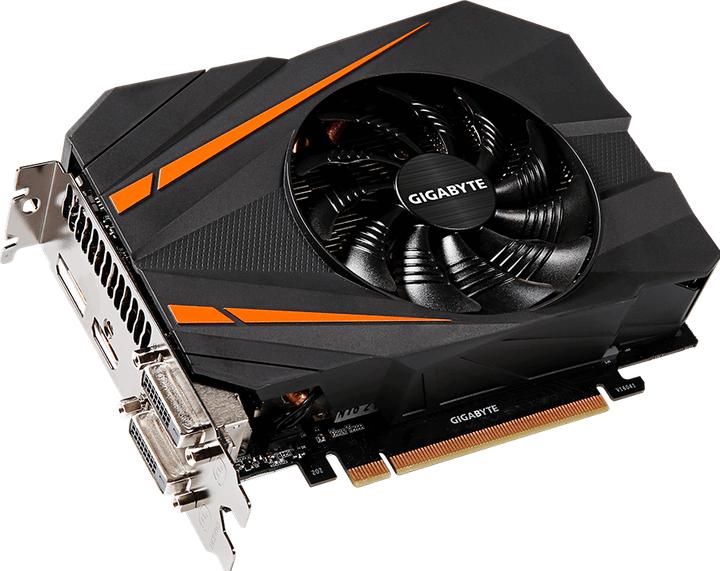

For cooling, the graphics card features a semi-passive single-fan cooler design from Gigabyte, which consists of three heat pipes, a large aluminum fin heat sink, and a 90 mm fan. The Gigabyte GeForce GTX 1070 Mini ITX OC is just under 17 cm long, making it one of the smallest GeForce GTX 1070 graphics cards.
