Gigabyte Brix GB-BLPD-5005
Intel Pentium Silver J5005Product details
The Gigabyte Brix GB-BLPD-5005 is a compact barebone PC suitable for a variety of applications, including office work and multimedia. Equipped with an Intel Pentium Silver J5005 processor, which features four cores and offers a base clock frequency of 1.50 GHz, it can be boosted to up to 2.80 GHz when needed. The barebone supports up to 8 GB of DDR4 RAM and provides space for an M.2 SSD or a 2.5-inch hard drive, allowing for flexible storage expansion. The integrated Intel UHD Graphics 605 ensures appealing visual representation, while the variety of connectivity options, including HDMI, Mini DisplayPort, and multiple USB 3.0 ports, facilitates easy connection to external devices. With integrated Wi-Fi and Bluetooth technology, the Brix GB-BLPD-5005 is also well-equipped for wireless networks.
- Supports up to 8 GB of DDR4 RAM for enhanced performance
- Integrated Intel UHD Graphics 605 for basic graphic needs

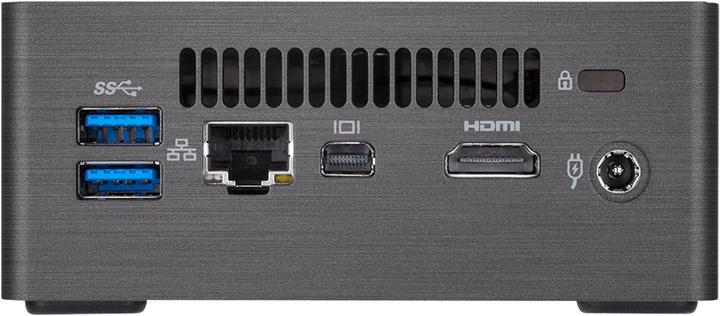

- Versatile connectivity options, including HDMI and Mini DisplayPort
- Compact design ideal for space-saving applications
- Integrated Wi-Fi and Bluetooth functionality for wireless connectivity.
Number of processor cores | 4 -Core |
Graphics card model | UHD Graphics 605 |
Internal connection options | M.2 (2x), S-ATA III (1x) |
Network connections | RJ45 (1x) |
Video connections | HDMI (1x), Mini DisplayPort (1x) |
Memory type | DDR4-RAM |
USB ports | USB-A |
Item number | 10301304 |
Manufacturer | Gigabyte |
Category | Barebones |
Manufacturer no. | GB-BLPD-5005 |
Release date | 11.1.2019 |
Design | Small Form |
Processor type | Intel Pentium Silver J5005 |
Clock frequency | 1.50 GHz |
Number of processors | 1 x |
Number of processor cores | 4 -Core |
Number of threads | 4 |
Socket | BGA 1090 |
Max. turbo clock rate | 2.80 GHz |
Max. TDP | 10 W |
Processor properties | 64-bit architecture, Direct I/O Virtualization Technology (VT-d), Intel Virtualisation Technology (VT-x), Onboard processor |
Memory type | DDR4-RAM |
Memory form factor | SO-DIMM |
Number of pins | 260 x |
Memory chip compatibility | DDR4-2400 |
Memory Slots available | 2 |
Max. memory slots | 2 |
Max. RAM | 8 GB |
Graphics card model | UHD Graphics 605 |
Hardware application range | Beginner, Low-end, Workstations |
Max. connected monitors | 3 x |
Internal connection options | M.2 (2x), S-ATA III (1x) |
"Number of 2.5"" drive slots" | 1 x |
USB ports | USB-A |
Exact USB ports | USB-A 3.0 (3x) |
Network connections | RJ45 (1x) |
Max. port speed | 1000 Mbit/s |
Connectivity | WLAN |
Wi-Fi standard | Wi-Fi 5 / 802.11ac |
Video connections | HDMI (1x), Mini DisplayPort (1x) |
Audio outputs | 3.5mm jack (1x) |
Power | 65 W |
CO₂-Emission | |
Climate contribution |
Scope of delivery | VESA wall mounting adapter |
Width | 112.60 mm |
Length | 119.40 mm |
Height | 46.80 mm |
Length | 21 cm |
Width | 17.50 cm |
Height | 13 cm |
Weight | 1.47 kg |
