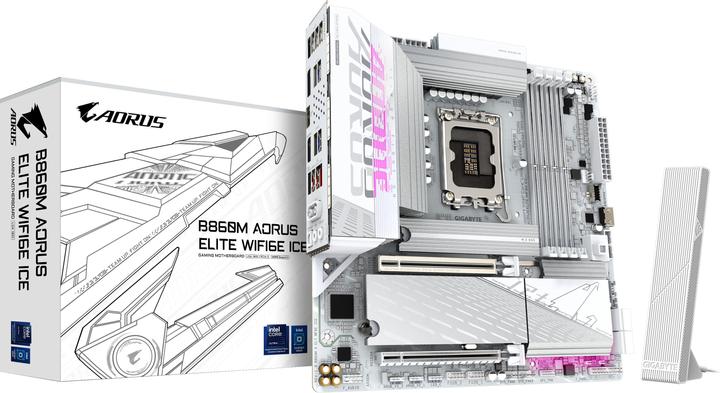

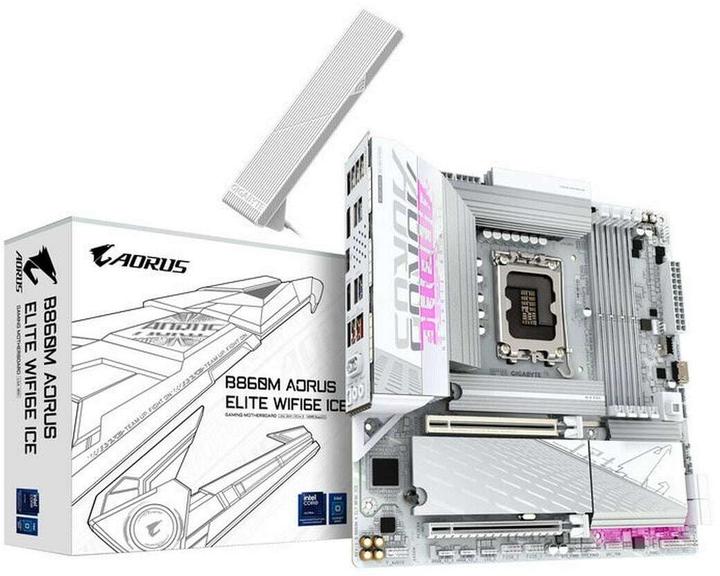

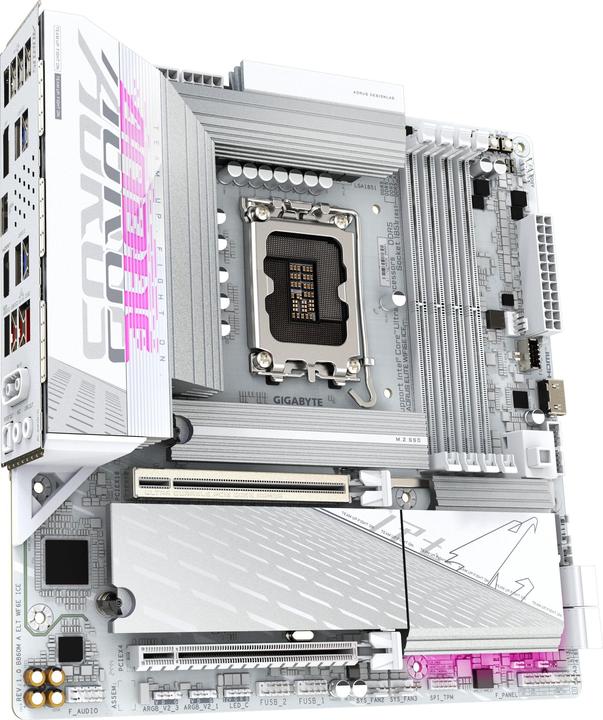

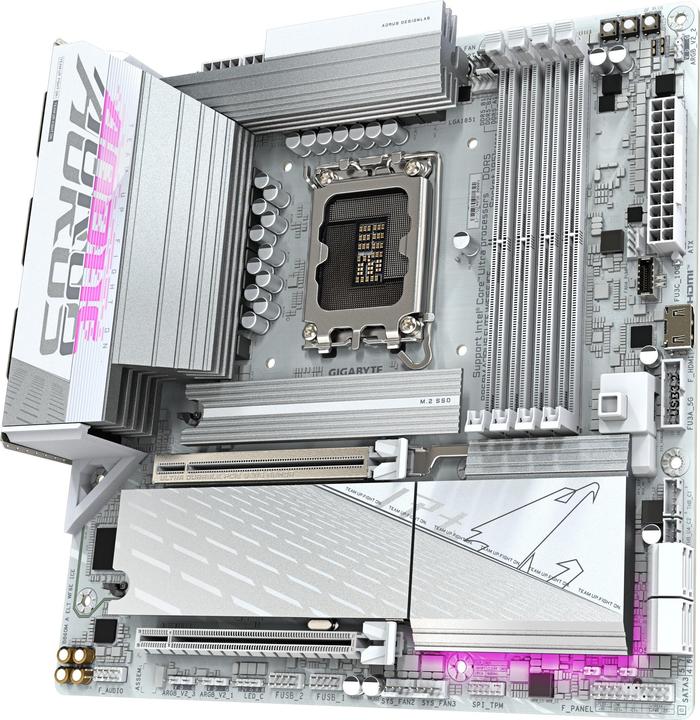

Gigabyte B860M AORUS ELITE WIFI6E ICE

LGA 1851, Intel B860, mATX
Ratings
BrandMore from Gigabyte
Delivered between Tue, 10.6. and Wed, 18.6.
Only 1 item in stock at supplier

Product details

The Gigabyte B860M AORUS ELITE WIFI6E ICE is based on the Intel B860 chipset and supports Intel processors for socket 1851. It has four DDR5 slots for up to 128 GB of RAM. The Gigabyte B860M AORUS ELITE WIFI6E ICE is also equipped with one PCIe 5.0 x16 slot and one PCIe 4.0 x16 slot (x4 lanes). The Gigabyte B860M AORUS ELITE WIFI6E ICE also has 8-channel sound, a 2.5 Gigabit LAN interface, WiFi 6E, Bluetooth 5.3, four SATA3 ports, three M.2 ports and a range of USB interfaces.

Key specifications

Processor family
Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 (3x), S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button, Front panel audio connector
Item number
53918389

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
B860M A ELT WF6E ICE
Release date
8.1.2025

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1851
Chipset
Intel B860
Mainboard features
Clear CMOS Button, Front panel audio connector
Operating system compatibility
Windows
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6E / 802.11az

Processor

Processor family
Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
256 GB
Memory chip
DDR5 SDRAM
Supported memory speed
5600 MHz, 6400 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x)
Video connection version
DisplayPort 2.1, HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8125
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Headphone output (1x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
M.2 (3x), S-ATA III (4x)
Expansion slot
PCI Express x16 (Gen 4) (1x), PCI Express x16 (Gen 5) (1x)
PCI express version (max.)
5
Number of fan connector
2

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 2.0 (4x), USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (2x)

Power supply

Power connectors
24-pin ATX, 8-pin PCI-E

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Norton Internet Security (OEM version)

Product dimensions

Length
244 mm
Width
244 mm
Height
35 mm
Weight
1700 g

Package dimensions

Length
28 cm
Width
27 cm
Height
8 cm
Weight
1.69 kg
