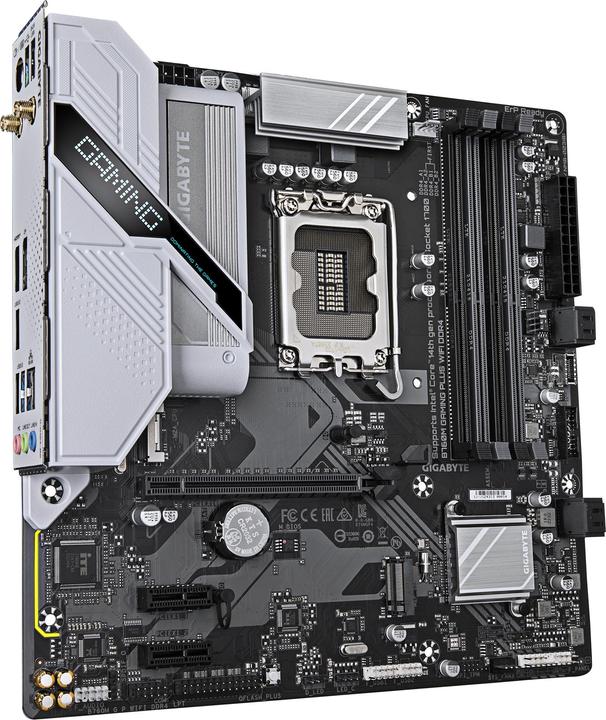

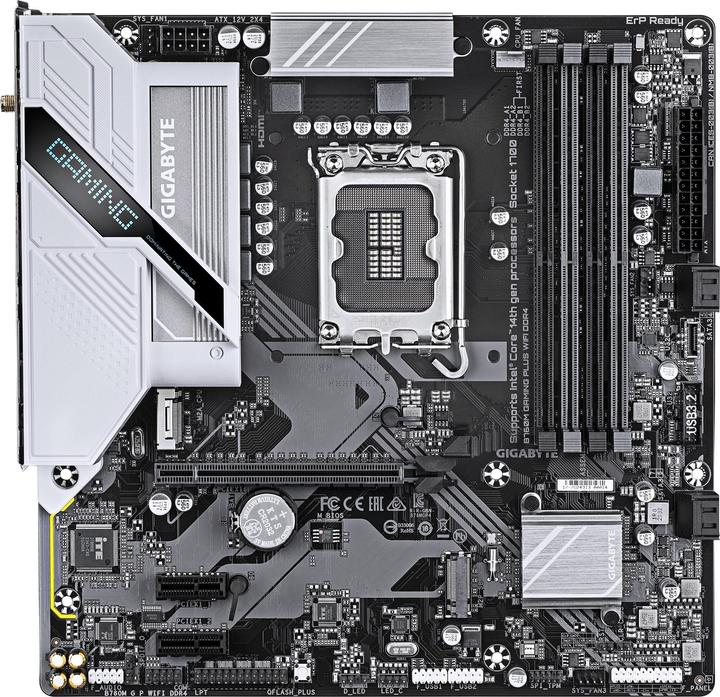

Gigabyte B760M Gaming Plus WIFI DDR4

LGA 1700, Intel B760, mATX
1Ratings
BrandMore from Gigabyte
Delivered Wed, 8.4.
More than 10 pieces in stock
free shipping

Product details

Boost the performance of your computer with GIGABYTE's proven motherboard series: AORUS, AERO and GIGABYTE. With innovative design and state-of-the-art functions, these boards deliver outstanding performance and reliability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and guarantee excellent quality.

Key specifications

Mainboard features
Clear CMOS Button, Front panel audio connector, Parallel header, RGB header, S/PDIF header
Wireless transmission
Bluetooth, Wi-Fi
Processor family
Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium Gold
Number of memory modules (RAM)
4x

General information

Item number
53215097
Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
B760M G P WIFI DDR4
Release date
17.7.2025
Sales rank in Category Motherboards
210 of 1030

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1700
Chipset
Intel B760
Mainboard features
Clear CMOS Button, Front panel audio connector, Parallel header, RGB header, S/PDIF header
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium Gold

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4x
Max. memory (RAM)
128 GB
Max. RAM OC
3300 MHz
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4000 MHz, 4300 MHz, 4400 MHz, 4800 MHz, 5000 MHz
RAM buffer
Unbuffered

Graphics properties

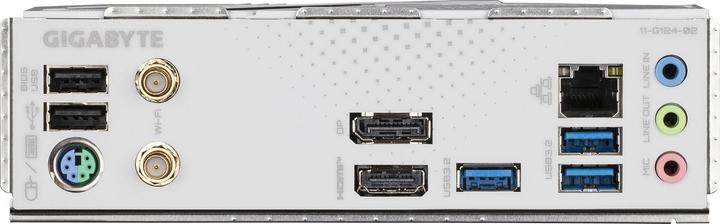

Video connections
DisplayPort (1x), HDMI (1x)

Network

Network connections
RJ45 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8111H
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC897
Audio Connections
Headphone output (1x), Jack 3.5mm Line In (1x), Jack 3.5mm Microphone In (1x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Expansion slot
PCI Express x1 (Gen 3) (2x), PCI Express x16 (Gen 4) (1x)
PCI express version (max.)
4
Number of fan connector
3

Further connections

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 1 (3x)

Power supply

Power connectors
8-pin ATX 12V

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
1686.38 kg
Climate contribution
CHF 4.75

Scope of delivery

Scope of delivery
LAN Manager, Norton Internet Security (OEM version)

Product dimensions

Length
244 mm
Width
244 mm
Height
35 mm
Weight
1100 g

Package dimensions

Length
28.10 cm
Width
27.40 cm
Height
7.60 cm
Weight
1.14 kg

30-day right of return
36 Months Warranty (Bring-in)
