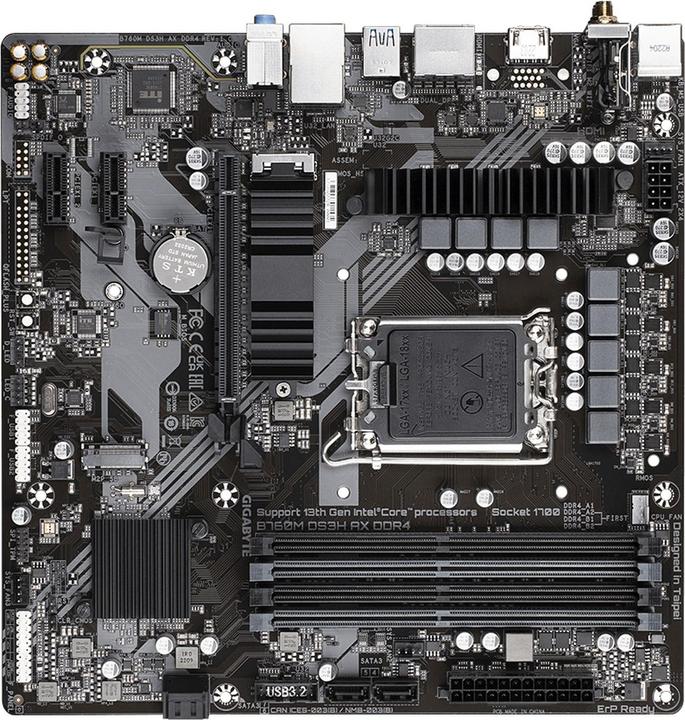

Gigabyte B760M DS3H AX DDR4
LGA 1700, Intel B760 Express, mATXProduct details
The GIGABYTE B760M Gaming X DDR4 is an ATX mainboard with the Intel B760 chipset and socket LGA 1700. The motherboard is suitable for desktop processors of the 12th generation and 13th generation Intel Core CPUs, codename: Alder Lake and Raptor Lake. It supports DDR4 RAM with up to 5,333 MHz and is ideal for overclocking thanks to its outstanding power supply. In addition to a stable power supply with high-quality VRMs, the GIGABYTE B760M Gaming X DDR4 impresses with other highlights that make overclocking your system much easier. DrMOS for adjusting the VRM voltage and frequency modulation, VRM cooler or a Clear CMOS jumper and a Q-Flash Plus button and reset buttons ensure safety on this board during overclocking attempts.
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header |
Wireless transmission | Bluetooth, Wi-Fi |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i9 12th Gen, Core i9 13th Gen |
Memory form factor | DIMM |
Memory type | DDR4-RAM |
Internal connections | M.2 (2x), S-ATA III (4x) |
Item number | 23677383 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer No. | B760M DS3H AX DDR4 |
Release date | 9.12.2022 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel B760 Express |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i9 12th Gen, Core i9 13th Gen |
Memory form factor | DIMM |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 5333 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4800 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

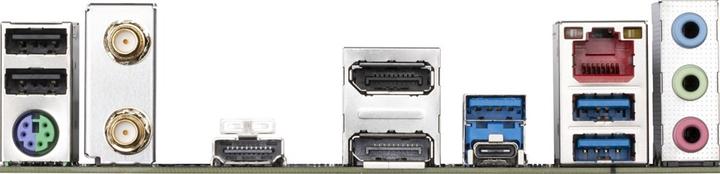

Video connections | DisplayPort (2x), HDMI (1x) |
Video connection version | Display port 1.2, HDMI 2.0 |
Network connections | RJ45 (1x) |
Ethernet controller | RZ608 |
Max. port speed | 2.50 Gbit/s |
Chip | High Definition Audio |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (3x) |
RAID configuration | 0, 1, 10, 5 |
Internal connections | M.2 (2x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (2x), PCI Express x16 (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 4 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (3x), USB-C 4 (3x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Country of origin | China |
CO₂ emissions | 1686.38 kg |
Climate contribution | CHF 7.30 |
Scope of delivery | Norton Internet Security, SATA cable |
Length | 244 mm |
Width | 244 mm |
Height | 35 mm |
Weight | 1100 g |
Length | 27 cm |
Width | 27 cm |
Height | 7 cm |
Weight | 1.02 kg |
