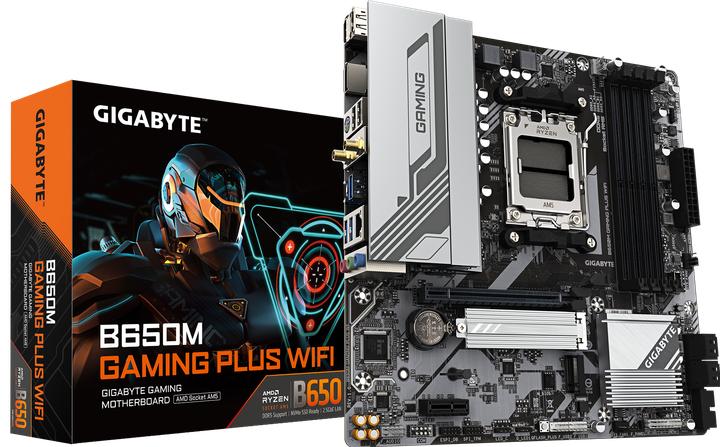

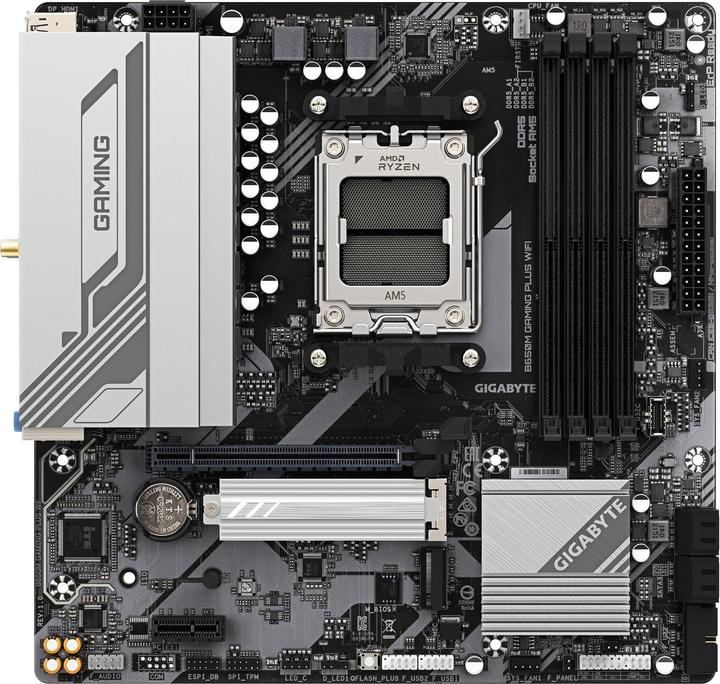

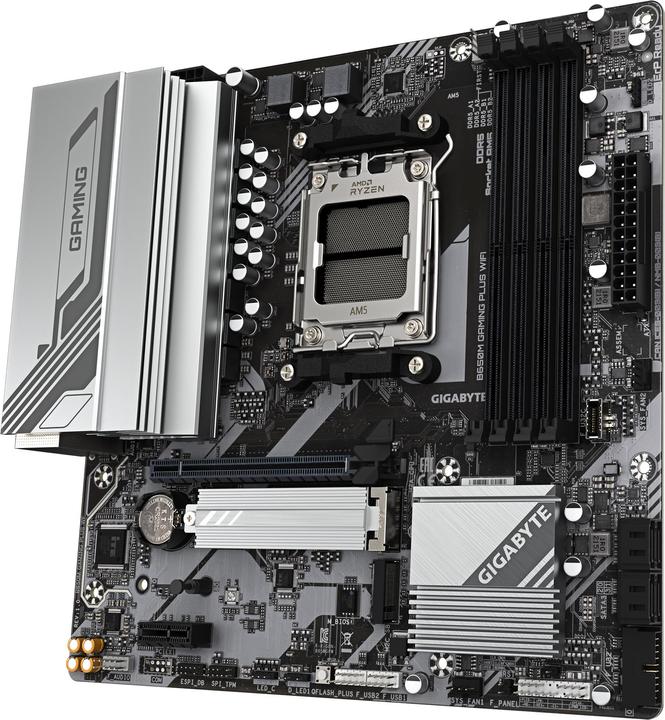

The GIGABYTE B650M Gaming Plus WF is a powerful Micro-ATX motherboard designed for the AMD Ryzen processors of the 7000, 8000 and 9000 series. With the AM5 socket and the AMD B650 chipset, it provides a solid foundation for gaming and high-performance PCs. The motherboard supports up to 256 GB DDR5 RAM with speeds of up to 8000 MHz, ensuring excellent performance for demanding applications and games. The versatile connectivity options include multiple M.2 slots, SATA ports as well as HDMI and DisplayPort outputs for flexible connectivity. This motherboard is ideal for users looking for a future-proof platform for their systems.
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Serial header, Trusted Platform Module |
Item number | 53720202 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | B650M Gaming Plus WF |
Release date | 17.7.2025 |
Sales rank in Category Motherboards | 274 of 969 |
Form factor | Micro ATX (mATX) |
Socket | AM5 |
Chipset | AMD B650 |
Mainboard features | Serial header, Trusted Platform Module |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory form factor | U-DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 8000 MHz |
Supported memory speed | 4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz, 7600 MHz, 7800 MHz, 8000 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (2x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125 |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x), Jack 3.5mm Line In (1x), Microphone |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (Gen 3) (1x), PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 3 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (3x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 24-pin ATX, 8-pin EATX 12V |
Country of origin | China, Taiwan |
CO₂-Emission | |
Climate contribution |
Scope of delivery | LAN bandwidth management software, Norton® Internet Security (OEM version) |
Length | 244 mm |
Width | 244 mm |
Height | 35 mm |
Weight | 1438 g |
Length | 28.40 cm |
Width | 27.30 cm |
Height | 7.30 cm |
Weight | 1.43 kg |
