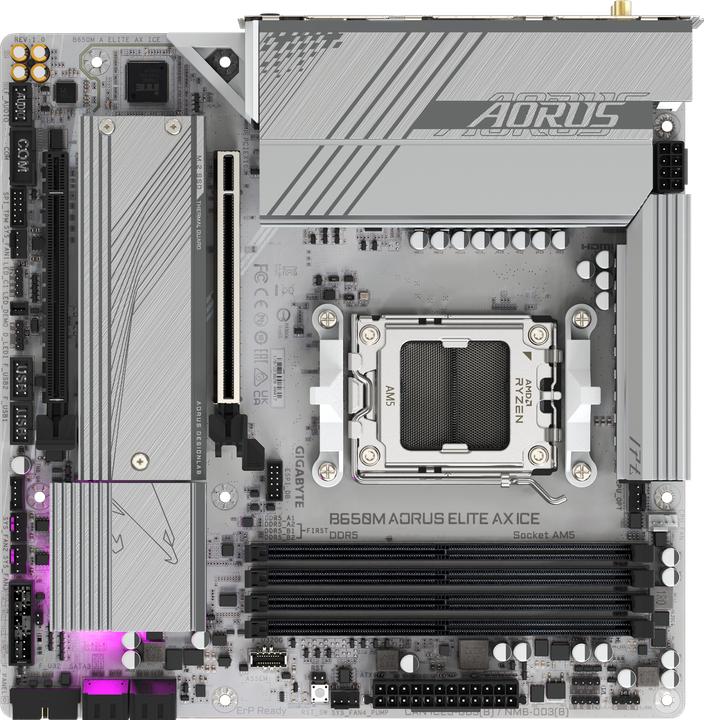

Gigabyte B650M Aorus Elite AX ICE
AM5, AMD B650, mATXProduct details
The AORUS gaming motherboards offer everything gamers and enthusiasts need for maximum performance. With a fully digital power supply and the innovative Digital Twin VRM design, the board ensures a stable power supply, making it ideal for advanced overclocking. The innovative BIOS optimization and technologies such as DDR5 Auto Booster and AMD EXPO™/Intel® XMP 3.0 provide impressive memory performance that can be adjusted with just one click.
Processor family | Ryzen 7th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Front panel audio connector, Power-On Button, Reset button, RGB header, Trusted Platform Module |
Item number | 39794058 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | B650M A ELITE AX ICE |
Release date | 3.11.2023 |
Sales rank in Category Motherboards | 100 of 951 |
External links |
Form factor | Micro ATX (mATX) |
Socket | AM5 |
Chipset | AMD B650 |
Mainboard features | Clear CMOS Button, Front panel audio connector, Power-On Button, Reset button, RGB header, Trusted Platform Module |
Operating system compatibility | Windows 10, Windows 11 Home |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 7th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 8000 MHz |
Supported memory speed | 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125 |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Digital Audio Out (1x), Headphone output (1x), Jack 3.5mm Line In (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (2x) |
PCI express version (max.) | 5 |
Number of fan connector | 4 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (5x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Norton® Internet Security (OEM version), Sata Cables |
Length | 244 mm |
Width | 244 mm |
Height | 35 mm |
Weight | 970 g |
Length | 27.80 cm |
Width | 27.60 cm |
Height | 7.80 cm |
Weight | 1.70 kg |
