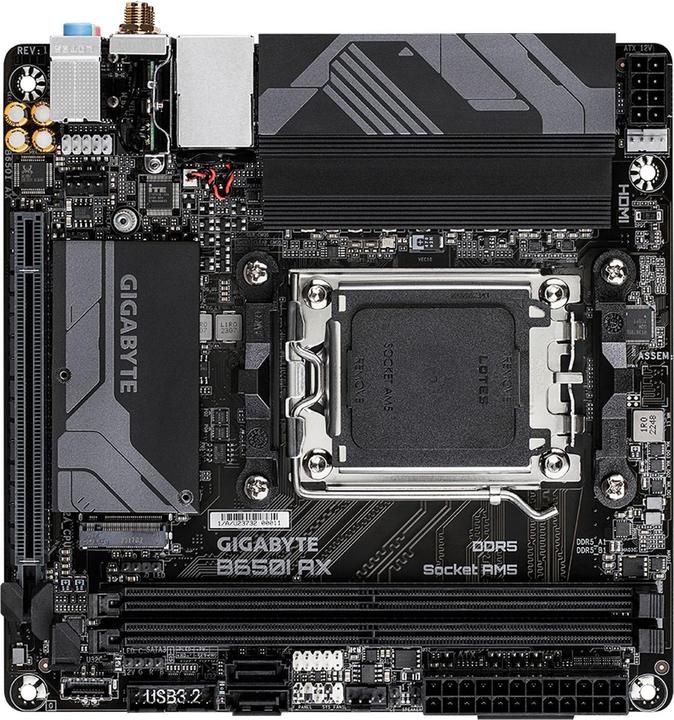

Gigabyte B650I AX

AM5, AMD B650, Mini-ITX
3Ratings
BrandMore from Gigabyte
tomorrow with flash delivery
to check if flash delivery is available to you.

Product details

Enhance your computer's performance with GIGABYTE's proven motherboard series: AORUS, AERO, and GIGABYTE. With innovative design and cutting-edge features, these boards deliver outstanding performance and reliability. Whether you are a gamer, content creator, or professional user, these series are tailored to your needs, ensuring excellent quality and the latest technologies.

Key specifications

Processor family
AMD 7000 Series
Memory type
DDR5 RAM
Number of memory modules (RAM)
2 x
Internal connection options
M.2 (1x), S-ATA III (2x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header
Item number
40738942

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
B650I AX
Release date
5.12.2023
Sales rank in Category Motherboards
113 of 989
External links
Manufacturer's site (de)

Motherboard properties

Form factor
Mini-ITX
Socket
AM5
Chipset
AMD B650
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax

Processor

Processor family
AMD 7000 Series

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2 x
Max. memory (RAM)
96 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
6400 MHz
Supported memory speed
4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8125
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (3x)

Data storage

RAID configuration
0, 1

Internal interfaces

Internal connection options
M.2 (1x), S-ATA III (2x)
Expansion slot
PCI Express x16 (1x)
PCI express version (max.)
4
Number of fan connector
3

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 2.0 (3x), USB-A 3.2 Gen 1 (2x)

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Norton® Internet Security (OEM version) LAN bandwi, Sata Cables

Product dimensions

Length
170 mm
Width
170 mm
Height
35 mm
Weight
790 g

Package dimensions

Length
22.30 cm
Width
18.20 cm
Height
10.30 cm
Weight
821 g
