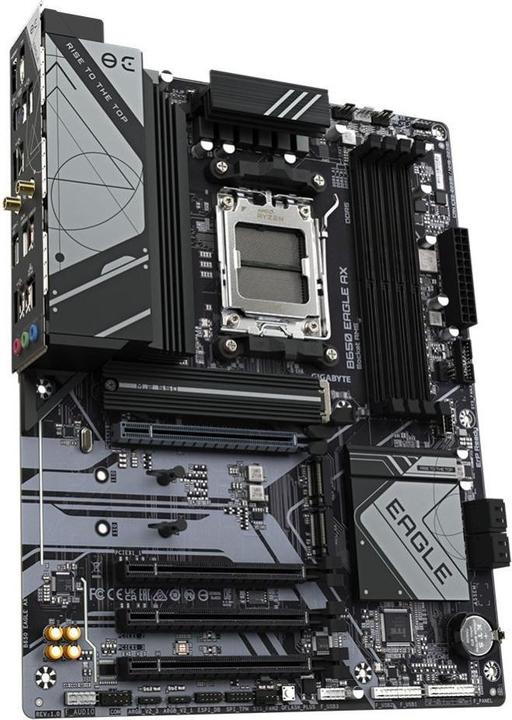

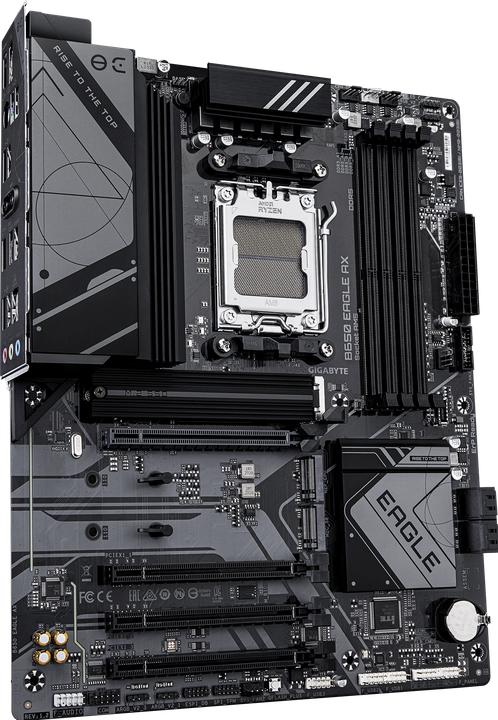

Gigabyte B650 EAGLE AX
AM5, AMD B650, ATXProduct details
Durable performance
Gigabyte Ultra Durable motherboards, equipped with optimal components inside and out, offer first-class performance and a timeless platform.
Future-proof connectivity
Ultimate connectivity with blazing fast data transfer speeds through next-generation networking and storage.
Simple and user-friendly
Innovative and intuitive design of hardware, software and BIOS interface to help you realise your personal style.
EZ-Latch
Easily unlock the PCIe slot latch when you remove the graphics card from the PCIe slot.
Q-Flash Plus
Easily update the BIOS without having to install the CPU, memory and graphics card.
Smart Fan 6
ensures optimal cooling and quiet operation of your gaming PC, with support for PWM/DC fans and pumps, customisable settings and intuitive temperature monitoring.
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Front panel audio connector, Trusted Platform Module |
Item number | 41877853 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | B650 EAGLE AX |
Release date | 8.1.2024 |
Sales rank in Category Motherboards | 9 of 973 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD B650 |
Mainboard features | Clear CMOS Button, Front panel audio connector, Trusted Platform Module |
Operating system compatibility | Windows 10, Windows 11 Home |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 7600 MHz |
Supported memory speed | 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz, 7600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (3x), PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 2 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (6x), USB-A 3.2 Gen 2 (2x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Clear CMOS Button, Front panel audio plug, RGB header |
Length | 244 mm |
Width | 305 mm |
Height | 35 mm |
Weight | 1940 g |
Length | 34.40 cm |
Width | 27.90 cm |
Height | 8.60 cm |
Weight | 1.75 kg |
