The latest wireless solution 802.11ax Wi-Fi 6E with a new dedicated 6 GHz band enables gigabit wireless performance, ensuring smooth video streaming, an enhanced gaming experience, fewer disconnections, and speeds of up to 2.4 Gbps. Additionally, Bluetooth 5 offers four times the range compared to BT 4.2 and faster transmission.
Gigabyte's A620 motherboards are ready for use with PCIe 4.0 devices, which are expected to provide double the bandwidth of current PCIe 3.0 devices. To achieve high speeds and maintain good signal integrity, Gigabyte R&D utilizes low-impedance circuit boards to deliver maximum performance.
Processor family | AMD 7000 Series |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | M.2 (1x), S-ATA III (2x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header |
Item number | 37124090 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | A620I AX 1.0 |
Release date | 17.7.2025 |
Form factor | Mini-ITX |
Socket | AM5 |
Chipset | AMD A620 |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | AMD 7000 Series |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 96 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 6400 MHz |
Supported memory speed | 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

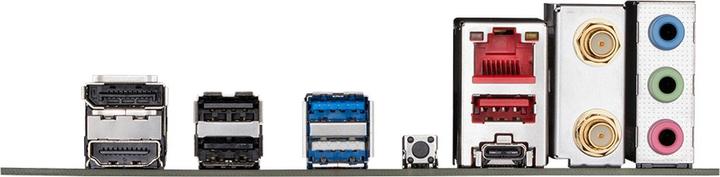

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8852AE |
Max. port speed | 2.50 Gbit/s |
Audio channel | 7.1 Channel |
Internal connection options | M.2 (1x), S-ATA III (2x) |
Expansion slot | PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 1 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (3x), USB-C 4 (1x) |
Power connectors | 12V-2x6, 24-pin ATX, 8-pin PCI-E |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Norton Internet Security, Sata Cables |
Length | 170 mm |
Width | 170 mm |
Height | 35 mm |
Weight | 860 g |
Length | 22.90 cm |
Width | 18.70 cm |
Height | 7 cm |
Weight | 780 g |
