The Gainward GeForce GTX 1070 Phoenix GLH (Goes like Hell) has a base clock of 1,670 MHz. With GPU Boost 3.0, this can be increased to a boost clock of 1,873 MHz when needed. The memory clock is set at 4,250 MHz (effectively 8,500 MHz). The cooling of the graphics card utilizes a dual-fan Phoenix cooler design.

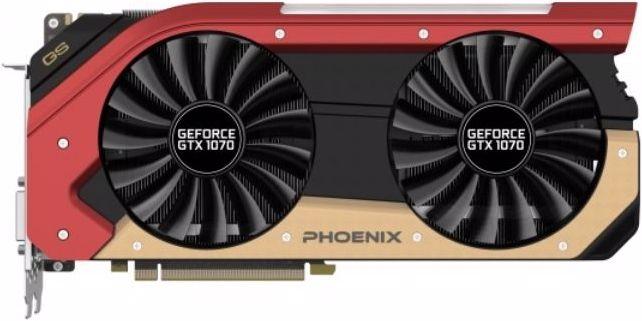

To ensure that NVIDIA's GPU Boost 3.0 can operate effectively, it is important for the card's electronics to remain as cool as possible. Therefore, Gainward employs its own "Phoenix" cooler design featuring multiple heat pipes, a large aluminum radiator, and two large axial fans that ensure a constant supply of fresh air to cool the GPU, voltage regulators, RAM, and more. Below 60 degrees GPU temperature, the fans even stop completely ("0 db Tech"), allowing the card to be passively cooled and completely silent during idle.
A new feature of the Phoenix cooler design is the integrated LED lighting. The black-red-gold cooler cover now includes LED lighting that changes colors in accordance with the graphics card's load.
Length | 28.50 cm |
Number of shaders | 1920 x |
Graphics card model | GeForce GTX 1070 |
Video memory clock | 8 GHz |
Max. connected monitors | 4 x |
Max. Video resolution | 3840 x 2160 Pixels |
Power consumption | 150 W |
Documents | |
Item number | 5820781 |
Manufacturer | Gainward |
Category | Graphics card |
Manufacturer no. | 426018336-3675 |
Release date | 1.7.2016 |
External links |
Max. connected monitors | 4 x |
PCI Express version | PCIe 3.0 |
Max. Video resolution | 3840 x 2160 Pixels |
Expansion card form factor | 2 slots |
Graphics chip (GPU) | nVidia GeForce |
Graphics card model | GeForce GTX 1070 |
Clock frequency | 1670 MHz |
Boost frequency | 1873 MHz |
Number of shaders | 1920 x |
Video memory type | GDDR5 |
Storage capacity | 8 GB |
Video memory clock | 8 GHz |
Memory Interface | 256 bits |
Memory Bandwidth | 272 GB/s |
Graphics card cooling system | Active cooler |
Number of fans | 2 x |
DirectX version | 12 |
OpenGL version | 4.50 |
Video connections | DisplayPort (3x), DVI-D (Dual Link) (1x), HDMI (1x) |
HDMI version | 2.0 |
DisplayPort version | 1.4 |
Power consumption | 150 W |
Min. recommended system performance | 500 W |
Power connectors | 8-pin PCI-E |
CO₂-Emission | |
Climate contribution |
Length | 28.50 cm |
Width | 11.20 cm |
Length | 41 cm |
Width | 27 cm |
Height | 10 cm |
Weight | 1.86 kg |
How often does a product of this brand in the «Graphics card» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Graphics card» category returned?
Source: Digitec Galaxus
Leiser geht es kaum: Die GTX 1070 von Gainward ist selbst bei Dauerlast kaum wahrnehmbar. In unserer Messkabine ermittelten wir einen Wert von 0,2 Sone ? absolut rekordverdächtig für diese Leistungsklasse. Überdies hält das Kühlsystem den Grafikchip unter 70 °C. Im Turbo-Modus erreicht er bis zu 2076 MHz und sorgt so für flüssige Bildraten auf 4K-Displays oder VR-Brillen...
