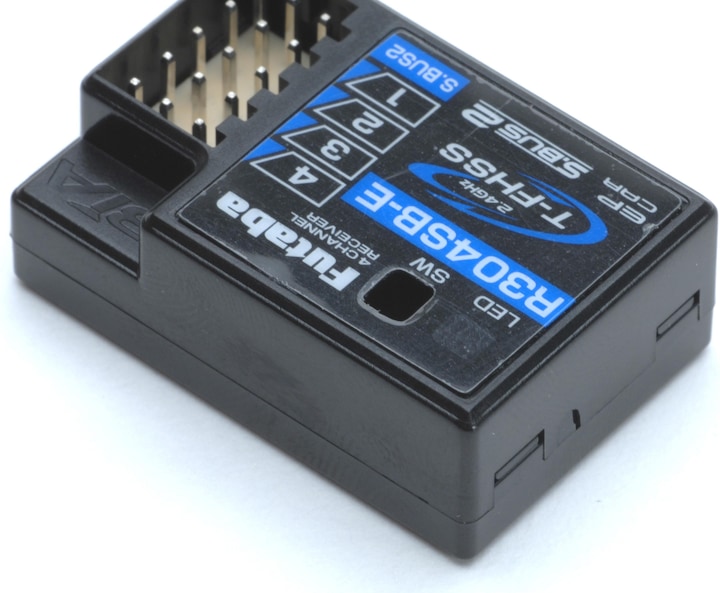

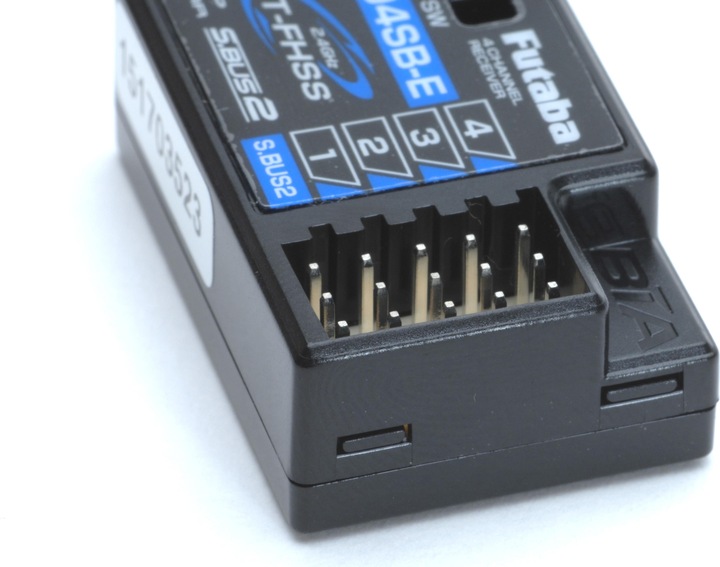

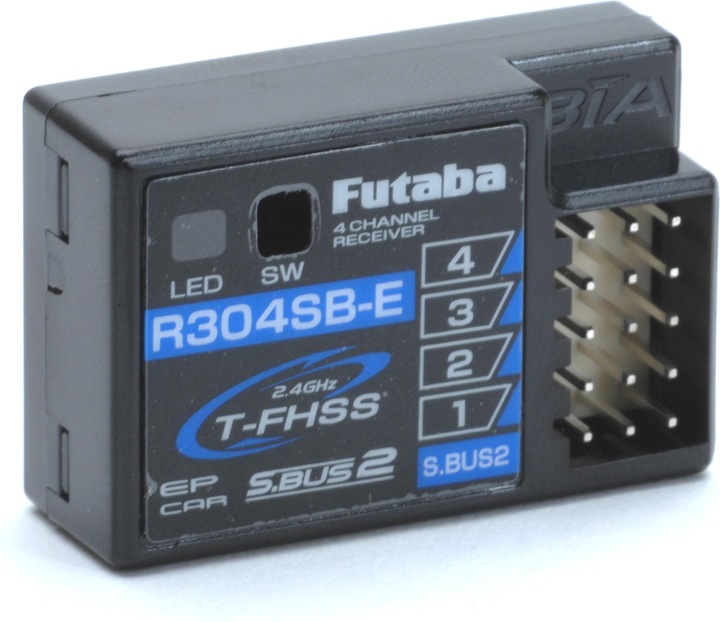

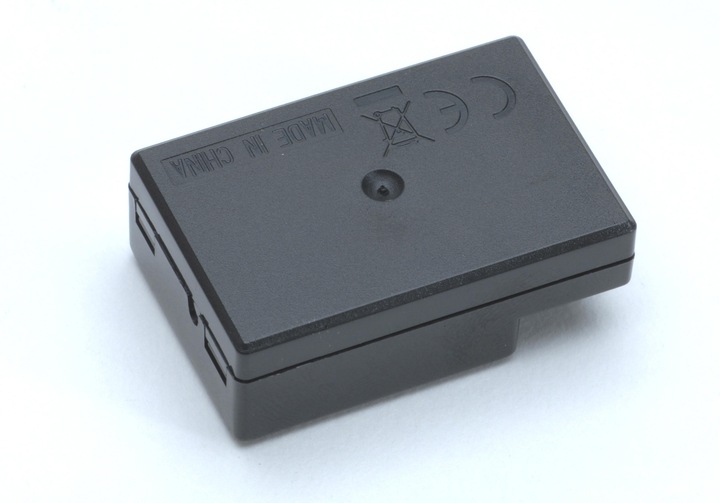

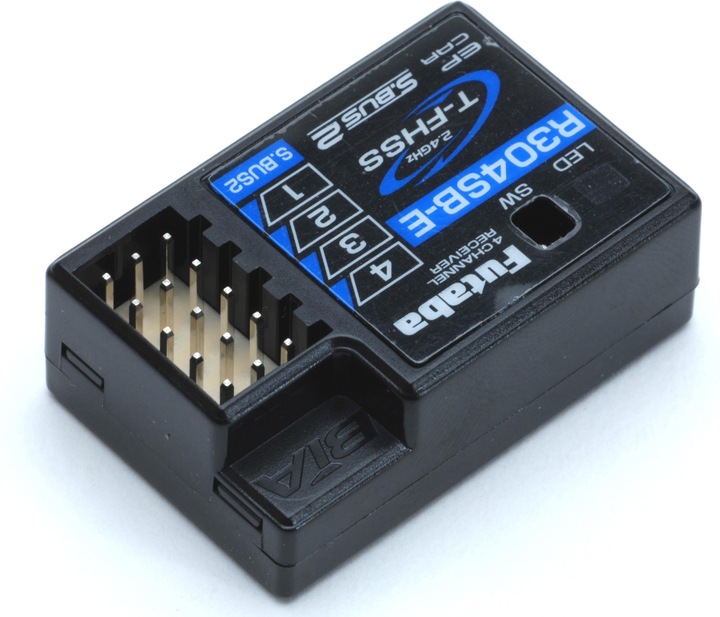

4-channel T-FHSS receiver with 4 connections for standard servos and controllers. Includes an additional S.BUS2 output for connecting S.BUS2 devices such as servos and telemetry sensors. The internal telemetry transmitter sends data to the transmitter, where it is displayed on the screen. High protection against interference and electromagnetic pollution thanks to 2.4 GHz FHSS technology. Suitable only for T-FHSS systems.
Technical specifications:
Channel: 4
Transmission: T-FHSS bidirectional
Current consumption: 40 mA or less
Input voltage: 4.8 V – 7.4 V
Weight: 6.6 g
Dimensions: 35.1 x 23.2 x 8.5 mm
Antenna: integrated in the housing
Note: When using 7.4 V LiPo batteries as the receiver battery, the connected servos must also be rated for this voltage. The receiver does not have an internal voltage converter for the servo voltage.
Frequency | 2.40 GHz |
conduits | 4 |
Operating voltage | 8.40 V |
Item number | 5747051 |
Manufacturer | Futaba |
Category | RC receivers |
Manufacturer no. | 05102601-3 |
Release date | 16.10.2017 |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Frequency | 2.40 GHz |
conduits | 4 |
Operating voltage | 8.40 V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece |
Length | 3.50 cm |
Width | 2.30 cm |
Height | 1.20 cm |
Weight | 6.70 g |
Length | 8.50 cm |
Width | 6.50 cm |
Height | 4 cm |
Weight | 40 g |
