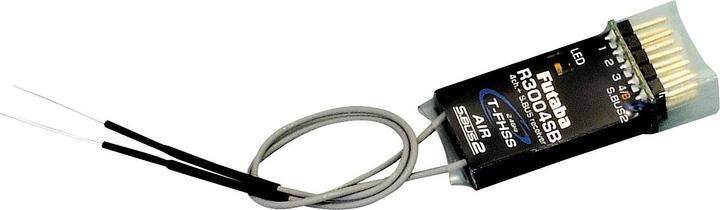

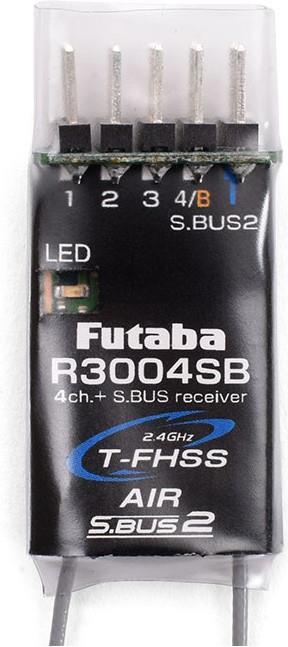

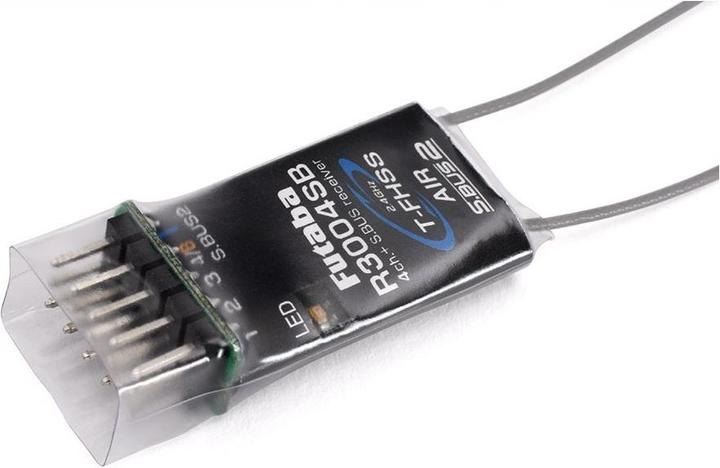

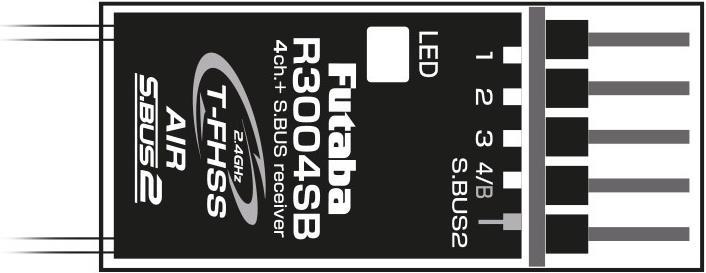

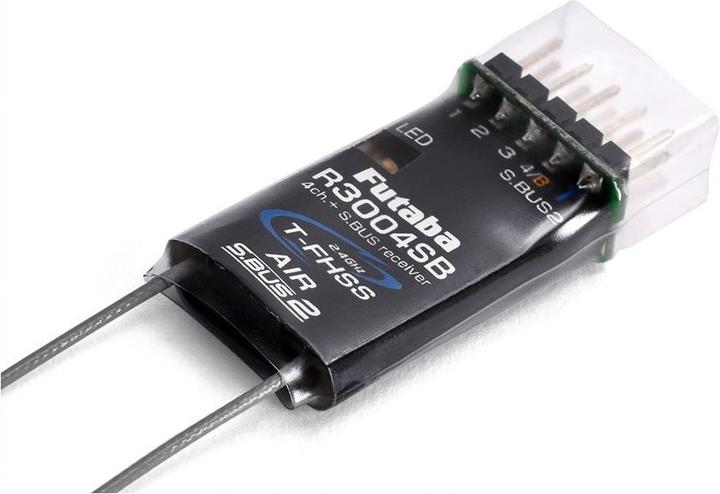

Futaba R3004SB T-FHSS 4-CH Diversity Receiver

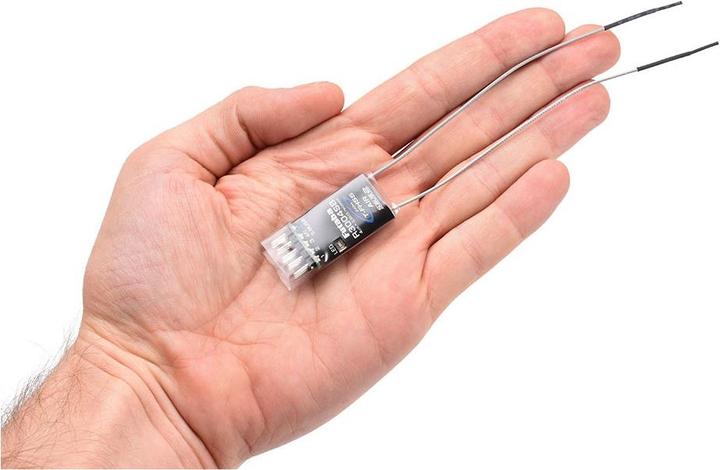

The Futaba R3004SB is a very compact and lightweight T-FHSS 2.4 GHz receiver with an integrated telemetry function. It weighs only 4.8 g. Due to its slim design, the receiver is ideally suited for small, lightweight model aircraft.

Up to 18 programmable S.BUS2 servos or peripheral devices can be connected to the S.BUS output. Thanks to digital addressing, each servo only responds to information that includes the correct servo address. No more cable clutter; just one line to the wing, and for larger models, one cable per wing and one cable to the tail. It couldn't be simpler.

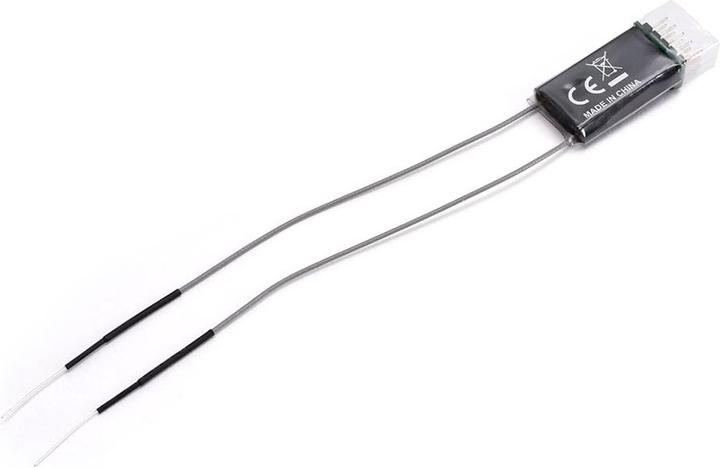

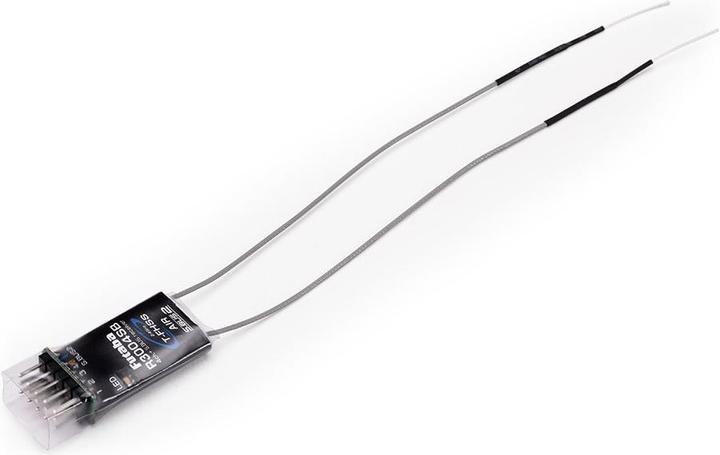

The R3004SB features antenna diversity and continuously checks the signal quality of both antenna inputs. It quickly and seamlessly switches to the better input signal.

Through the S.BUS2 connection, S.BUS2 sensors can be connected, allowing for the transmission of up to 32 telemetry data sets. The integrated telemetry transmitter in the receiver sends the telemetry data present at the S.BUS2 connection to the transmitter, which displays it on the screen, announces it, or outputs it audibly.

Note: When using 7.4 V LiPo batteries as the receiver battery, the connected servos must also be rated for this voltage. The receiver does not have an internal voltage converter for the servo voltage.

Technical specifications:
2.4 GHz T-FHSS
4 channels + S.BUS
S.BUS2
Antenna diversity
Suitable for: small model airplanes
Housing: soft case
Voltage range: 4.8-7.4 V
Length: 41.4 mm
Width: 18 mm
Height: 9.9 mm
Weight: 4.8 g

Compatible with the following transmitters:
T6K
T6L
T10JS
T12K
T16SZ
T18SZ
FX-36.
