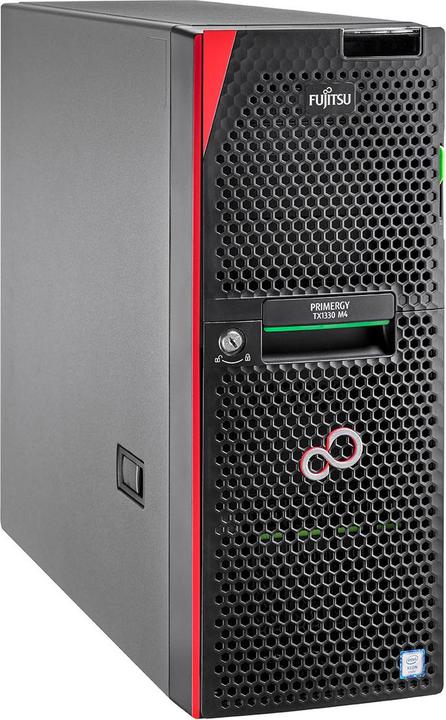

Fujitsu Primergy TX1330 M4

Intel Xeon E-2176G, 16 GB, Rack Server
Currently out of stock

Product details

The Fujitsu Server Primergy TX1330 M4 is an extremely scalable mono-socket server designed for small and medium-sized enterprises that require application-oriented performance along with high memory expandability and growth potential. It features the latest processors from the Intel Xeon E-2200/E-2100 product family and supports up to 128 GB of RAM with 2,666 MT/s to deliver application-oriented performance today and in the future. The server is designed with maximum scalability and workload versatility in mind, with features such as up to four NVMe devices plus sixteen 2.5-inch storage devices or up to twenty-four 2.5-inch devices, backup options, and 4 x PCIe slots, as well as forward-looking RAID (4/8 Gb Cache) and network options (10/25 Gb Ethernet, FC controller). The server also supports two M.2 devices for efficient operating system booting, while dual MicroSD allows for mirrored booting for VMware ESXi. Additionally, the server is equipped with more powerful USB 3.1 Gen2 ports for newer generations of peripherals. Reliability has been enhanced with a cost-effective Fujitsu Battery Backup Unit and highly efficient (94%), redundant power supplies. Comprehensive server management via the iRMC S5, along with quiet operation, simplifies administration and deployment, making the platform ideal for SME environments.

Key specifications

Number of rack units
4 U
Processor family
Xeon
Processor type
Intel Xeon E-2176G
Max. number of hard disks
3
Number of processors
1 x
RAM
16 GB
Operating system
No operating system
Item number
13310615

General information

Manufacturer
Fujitsu
Category
Servers
Manufacturer no.
VFY:T1334SC170IN
Release date
9.6.2020

Hardware form factor

Design
Rack Server
Number of rack units
4 U

Processor

Processor family
Xeon
Processor type
Intel Xeon E-2176G
Number of processors
1 x
Number of processor sockets
1 x
Clock frequency
3.70 GHz
Number of threads
12
Number of processor cores
6 -Core
Max. turbo clock rate
4.70 GHz
Max. TDP
80 W
L3 Cache
12 MB

Motherboard properties

Socket
LGA 1151
Chipset
Intel C246

Memory

Memory type
DDR4-RAM
Max. memory slots
4
Memory configuration
1 x 16GB
RAM
16 GB
Max. RAM
128 GB
RAM speed
2666 MHz
RAM error correction
ECC

Data storage controller

RAID configuration
0+11056
Possible raid configuration
011056
Mass storage controller type
SATA III

Hard drive slots

Max. number of hard disks
3
Form factor
5.25"
Interface
SASSATA
Hard disk additional functions
Hot swapping

Internal interfaces

Expansion slot
PCI Express x1 (1x)PCI Express x8 (2x)
PCI express version (max.)
3
Internal connection options
PCI Express x16 (1x)PCI Express x8 (2x)

External interfaces

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (3x)USB-A 3.2 Gen 2 (2x)
Data ports
PS/2 (4x)
Connectivity
Ethernet

Network

Network connections
RJ45 Gigabit Ethernet (2x)
Ethernet controller
Intel I210
Ethernet controller brand
Intel
Max. port speed
1000 Mbit/s

Graphics card properties

Graphics card model
UHD Graphics P630
Graphics chip (GPU)
Intel UHD Graphics
Dedicated graphics memory
64 GB
Hardware interface
EthernetRJ45USB 2.0USB 3.1

Video connections

Video connections
VGA (1x)

Optical drive properties

Optical drive type
No drive

Operating system

Operating system
No operating system
Processor design
64-bit

Mains supply properties

Power
450 W
input voltage
230 V

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
177 mm
Width
560 mm
Height
455 mm
Weight
15 kg

Package dimensions

Length
88 cm
Width
57.50 cm
Height
39.50 cm
Weight
21.12 kg
