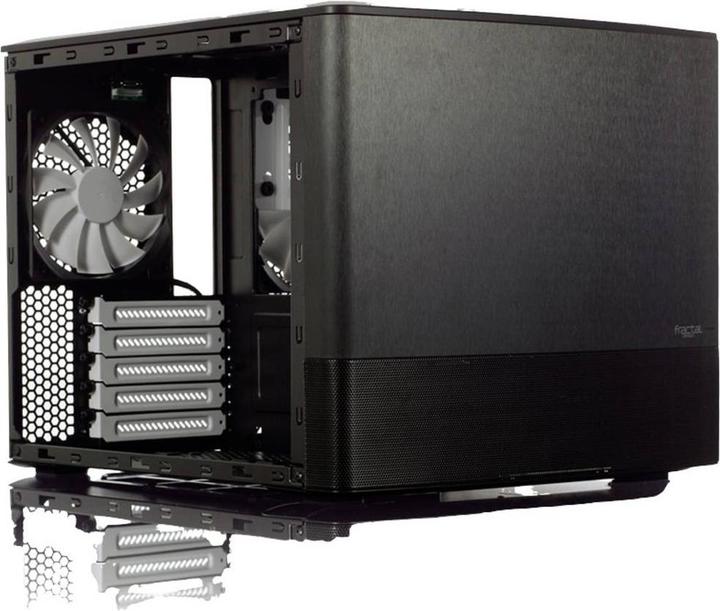

Fractal Node 804

mATX, Mini-ITX
64Ratings
Delivered between Wed, 7.5. and Thu, 8.5.
5 items ordered

Product details

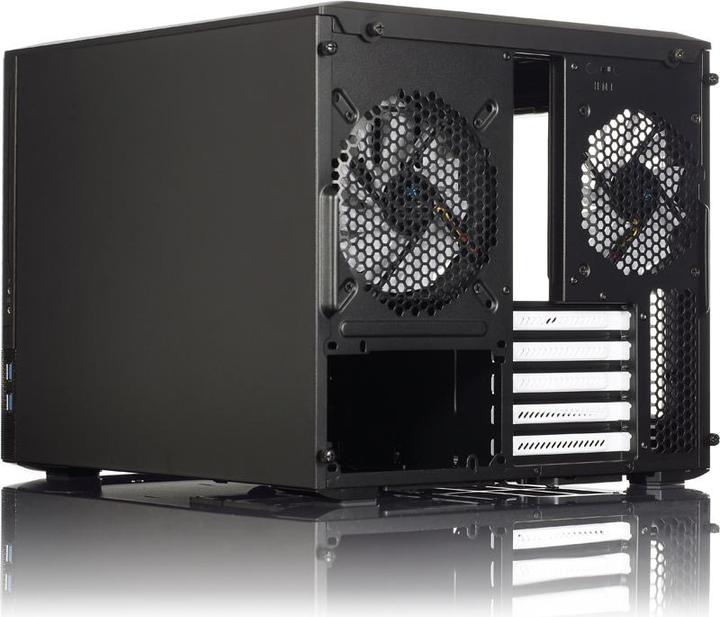

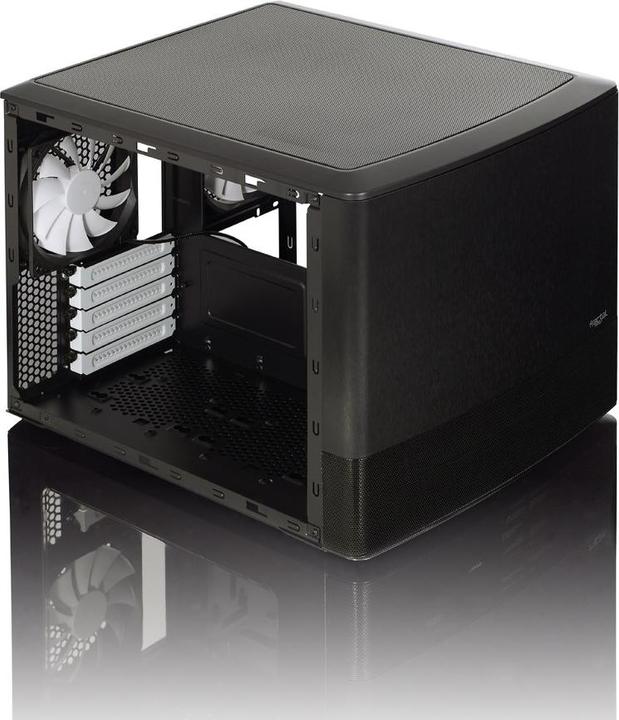

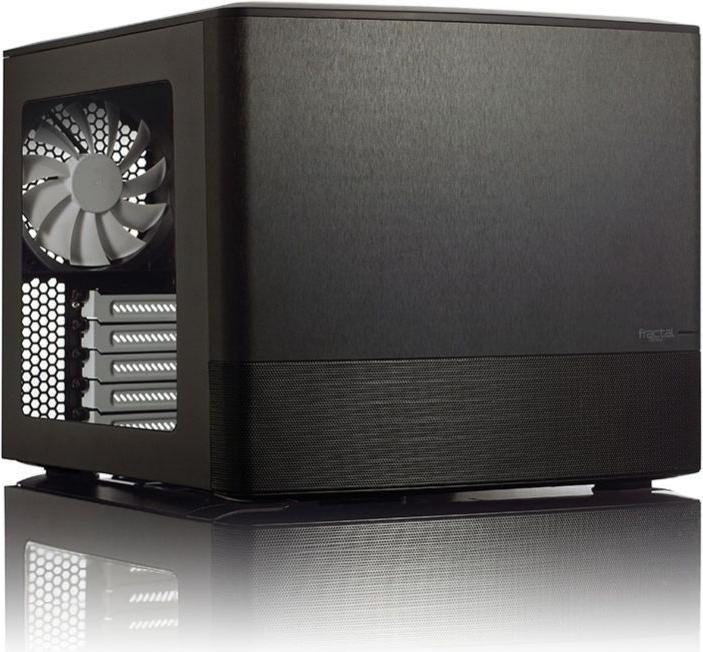

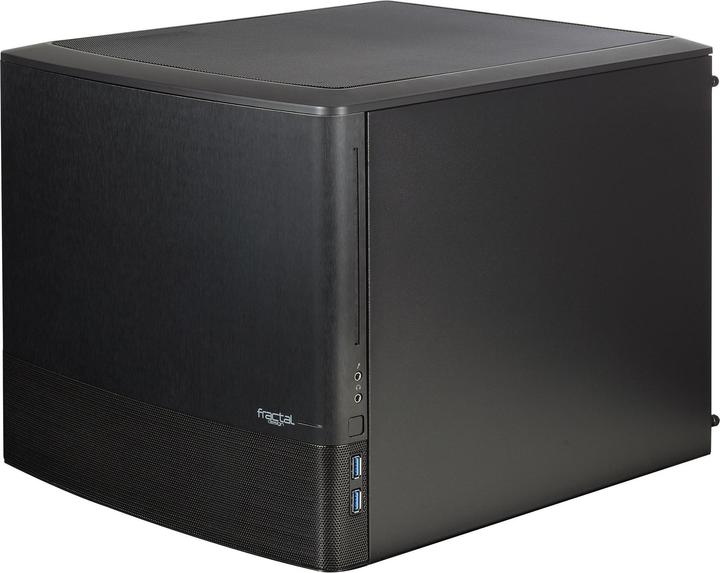

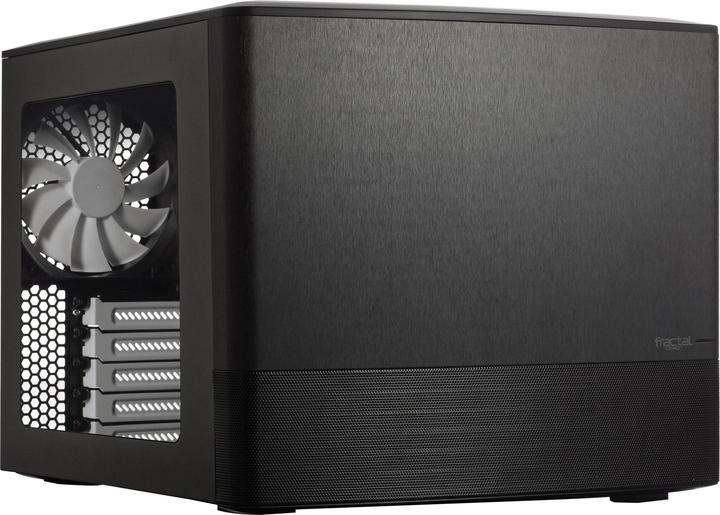

The Node 804 is a micro ATX chassis that focuses on cooling performance and maximum configurability, all packed in an interesting new form factor with Scandinavian elegant design.

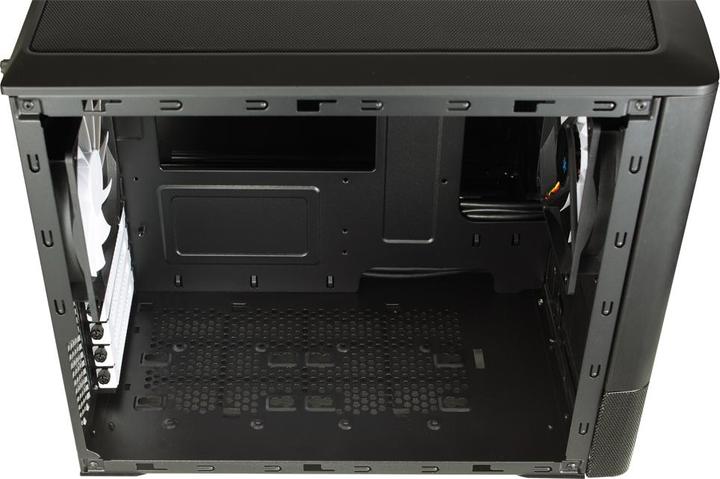

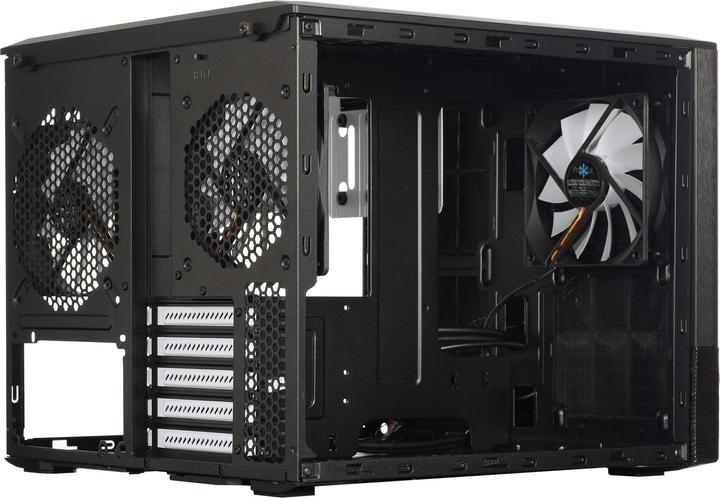

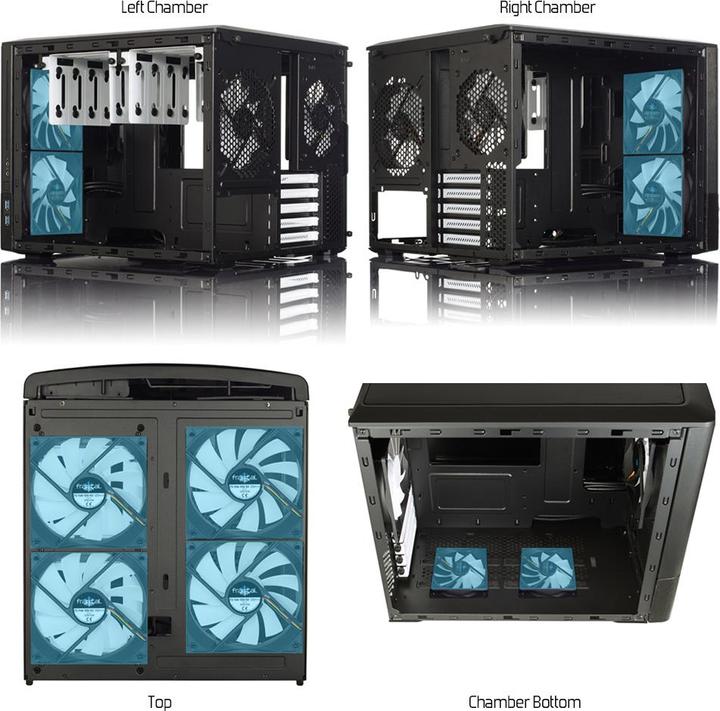

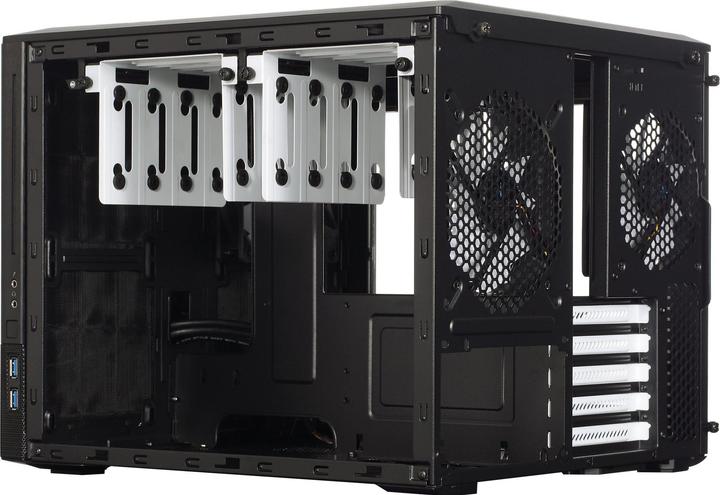

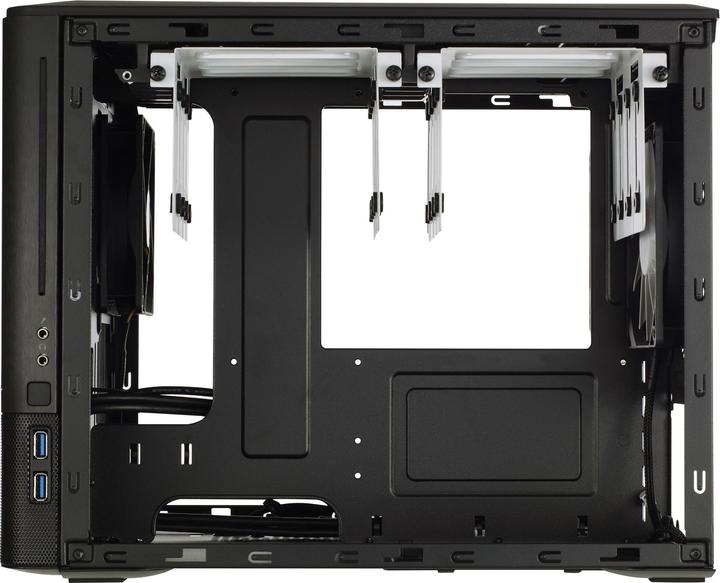

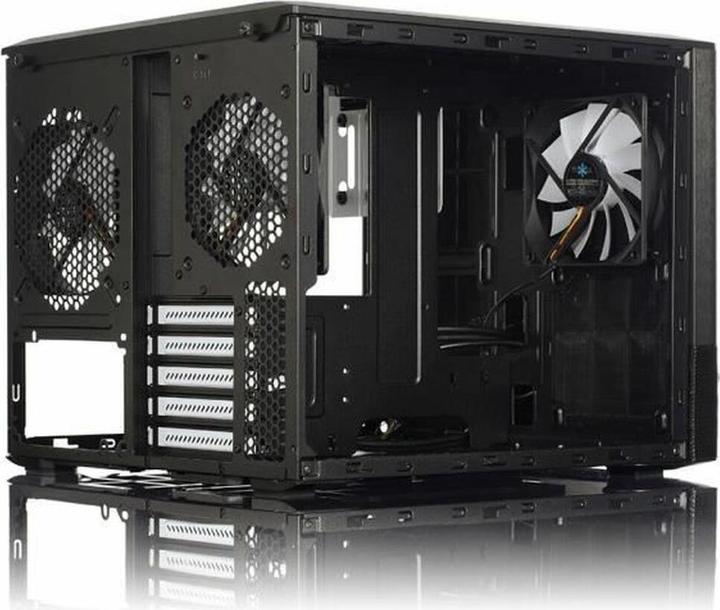

The dual chamber layout separates hot running components from cooler ones and allows for unrestricted airflow over the motherboard, processor, and graphics card.

The case comes with three excellent 120mm fans but can be upgraded with several additional fans if needed. It features plenty of options for placing water cooling components, tall heat sinks, and hard drives. The flexibility of this case really gives users the possibility to create their optimal system build.

Key specifications

PC case design
Cube housing
Number of 3.5" drive slots (internal)
8 x
"Number of 5.25"" drive slots"
0 x

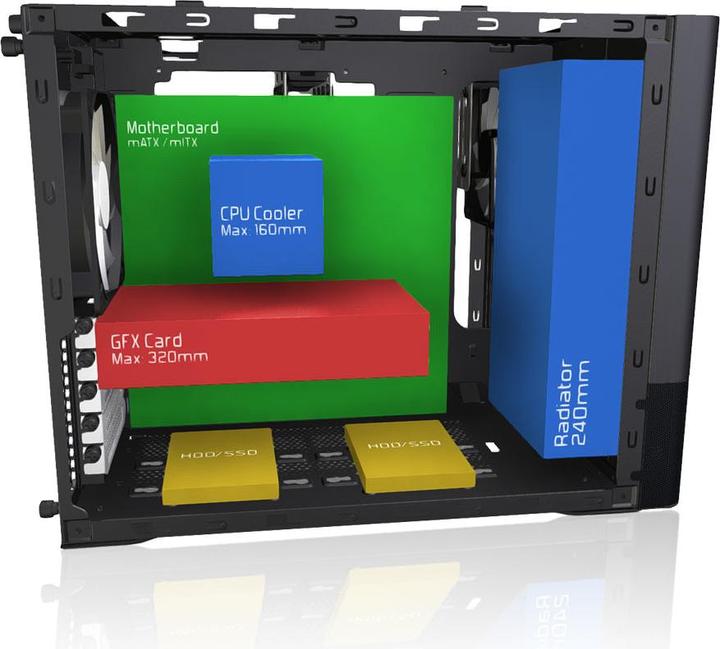

Max. length graphics card
320 mm

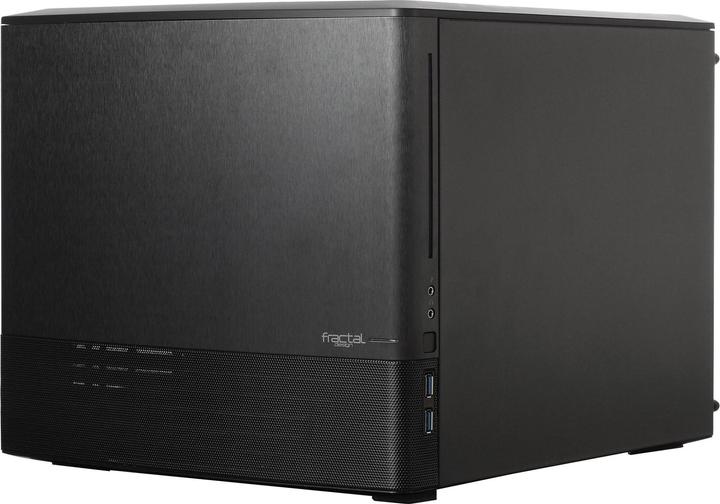

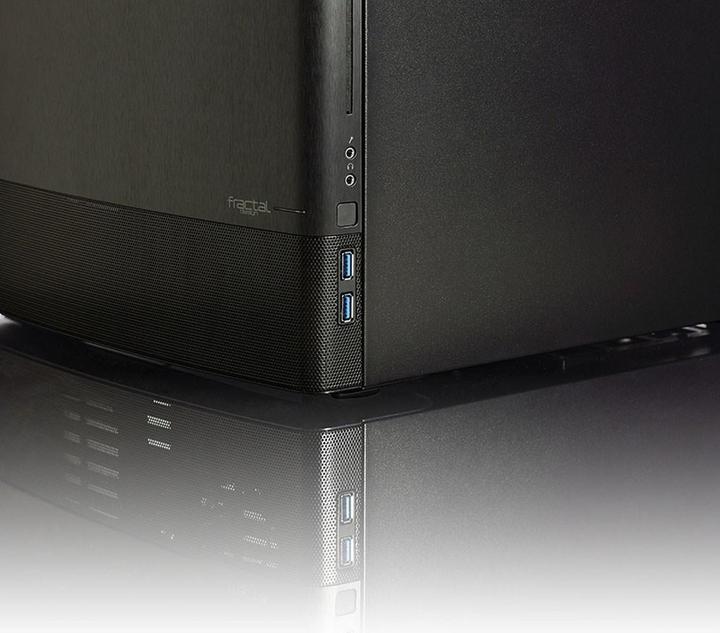

Front connectors
Headphones, Microphone, USB 3.0
PC case features
Quick-release fastener
Max. height CPU cooler
160 mm
Item number
2577009

General information

Manufacturer
Fractal
Category
PC case
Manufacturer no.
FD-CA-NODE-804-BL-W
Release date
19.11.2021
Sales rank in Category PC case
63 of 2677

Colour

Colour
Black
Exact colour description
Black

Material

Material
Plastic, Steel

PC case properties

PC case design
Cube housing
Form factor
Micro ATX (mATX), Mini-ITX
"Number of 5.25"" drive slots"
0 x
Number of 3.5" drive slots (external)
8 x
Number of 3.5" drive slots (internal)
8 x
"Number of 2.5""/3.5"" combination slots"
2 x
"Number of 2.5"" drive slots"
2 x
Number of expansion card slots
5 x
Max. length graphics card
320 mm
Max. height CPU cooler
160 mm
Max length of power supply
260 mm
PC case features
Quick-release fastener

Connections

Front connectors
Headphones, Microphone, USB 3.0

Cooling properties

Number of fans
3 x
Number of fan slots
10 x
Fan location
Front side, Rear side, Top side
Connectable fans (control)
3
Number of radiator mounts
1
Radiator locations
Front side, Top side

Front side

Fans included
1x 120mm
Fan mount locations
4x 120mm
Radiator mount locations
2x max. 240mm, up to 60mm height

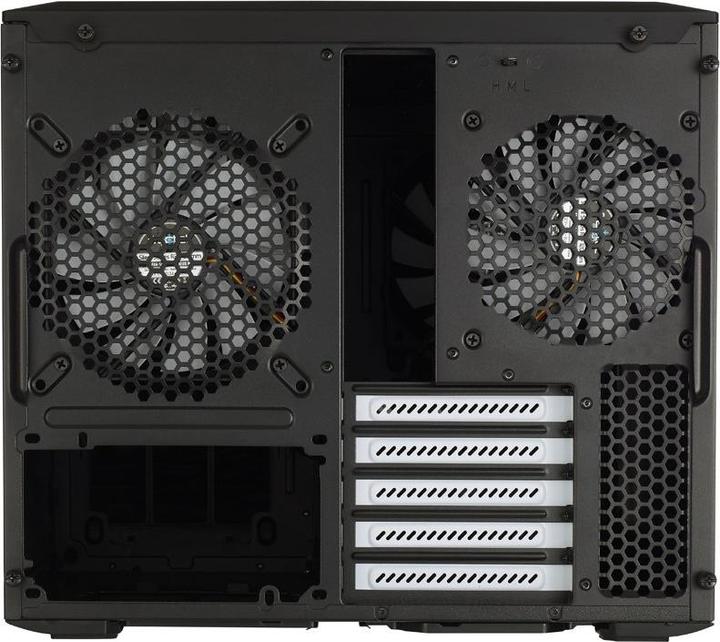

Rear side

Fans included
2x 120mm
Fan mount locations
2x 120mm
Radiator mount locations
No mounting possible

Top side

Fans included
Optional fan
Fan mount locations
4x 120mm
Radiator mount locations
2x max. 240mm

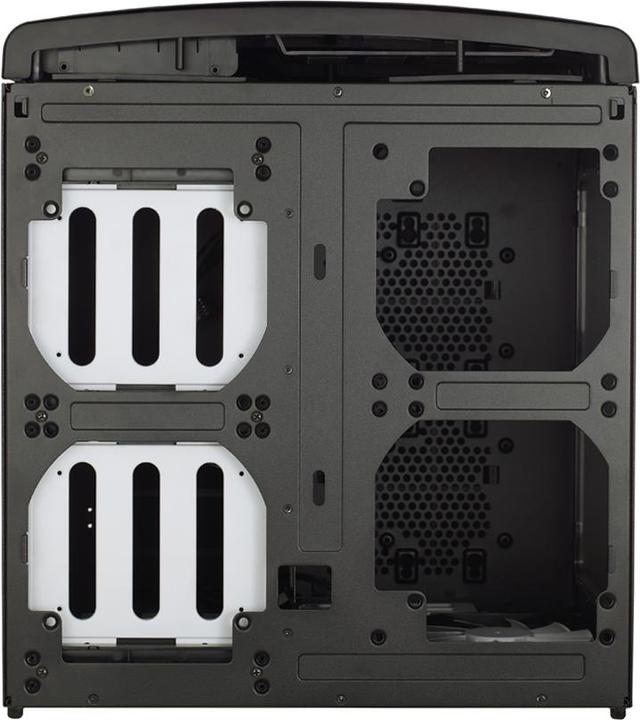

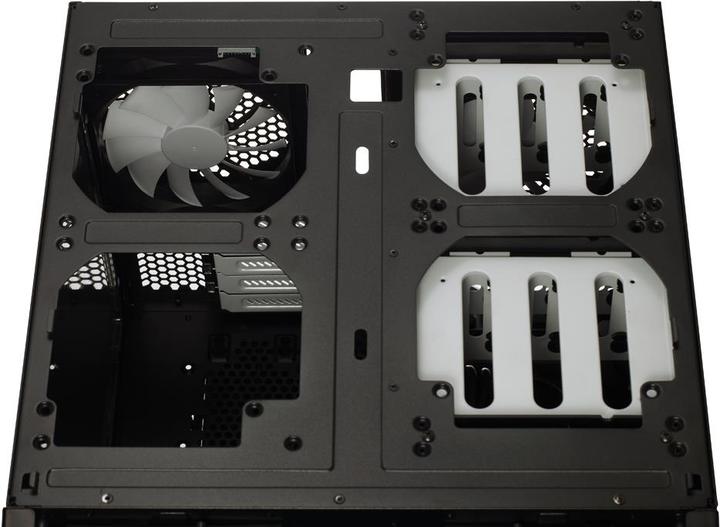

HDD Cage

Fan mount locations
2x 120mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Installation material

Product dimensions

Height
30.70 cm
Length
38.90 cm
Width
34.40 cm
Weight
6 kg

Package dimensions

Length
41 cm
Width
37.50 cm
Height
46 cm
Weight
7.49 kg
