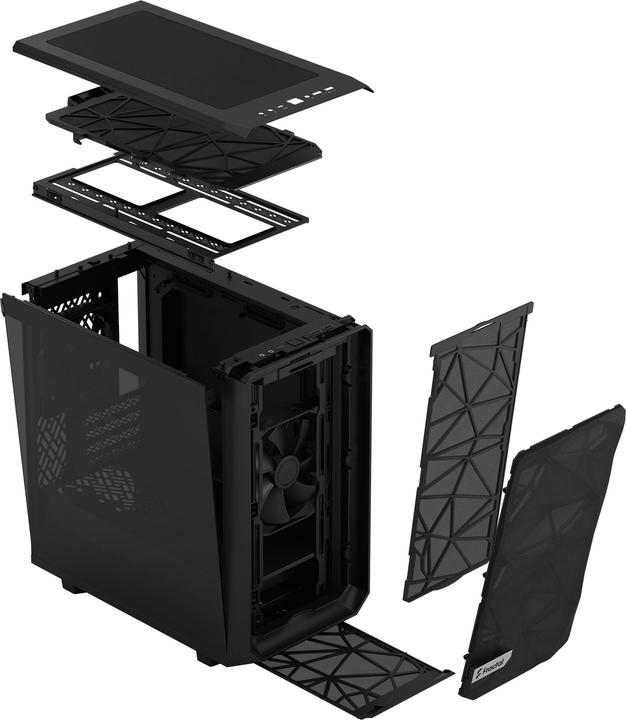

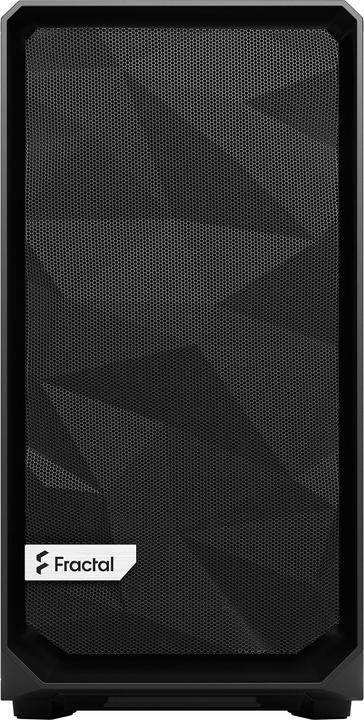

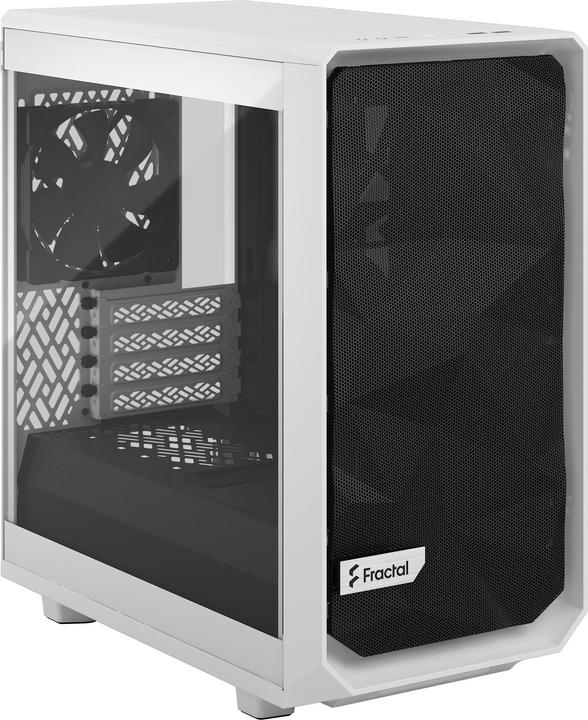

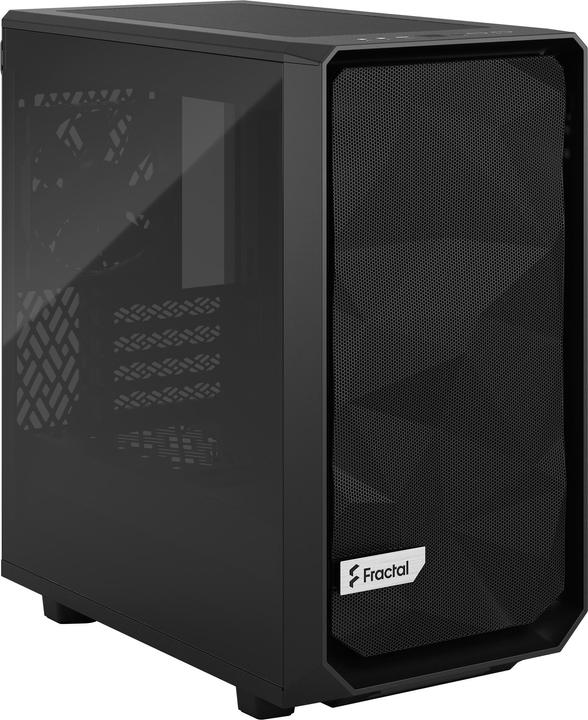

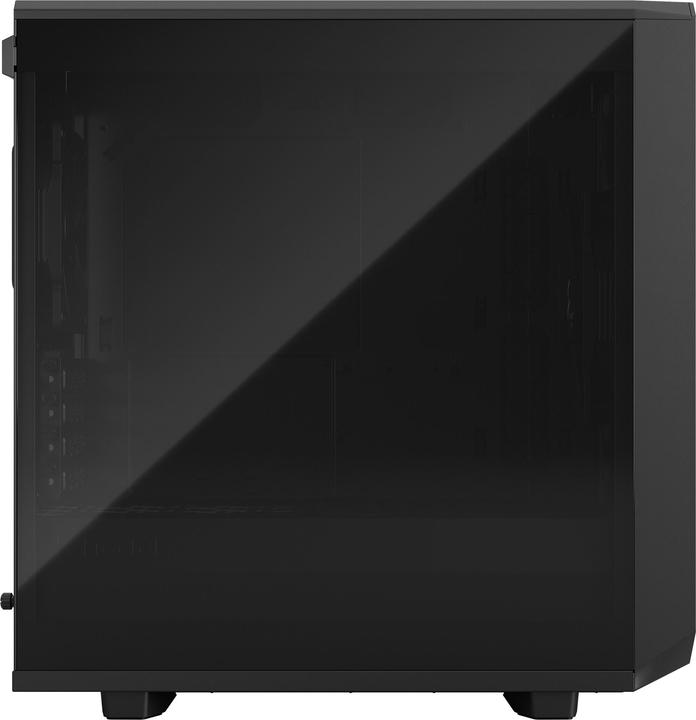

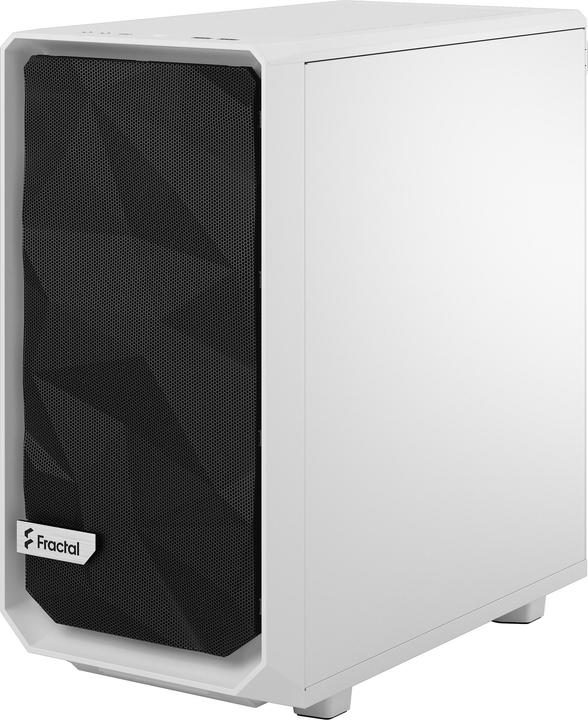

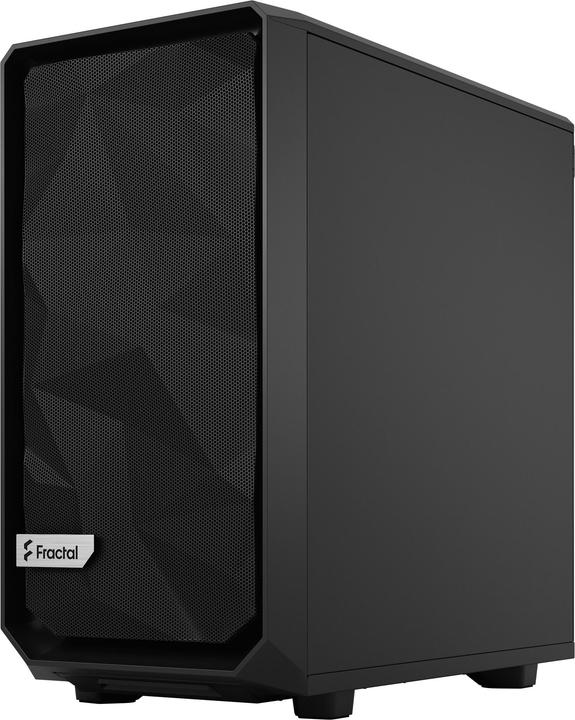

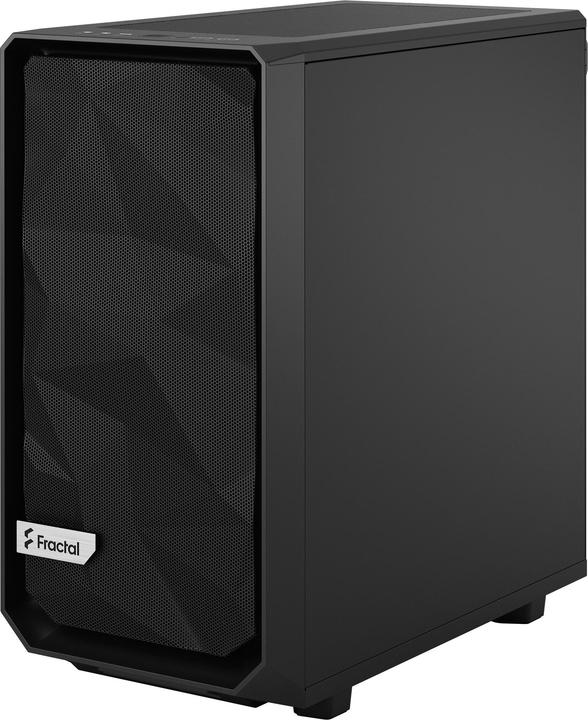

The Meshify 2 Mini offers an excellent combination of airflow and flexibility in an mATX-optimized form factor. The bold yet refined exterior design, featuring its asymmetrical, angular mesh front, is complemented by a flush TG panel and a fully removable top.
PC case design | Mini Tower |
Number of 3.5" drive slots (internal) | 2 x |
Max. length graphics card | 331 mm |

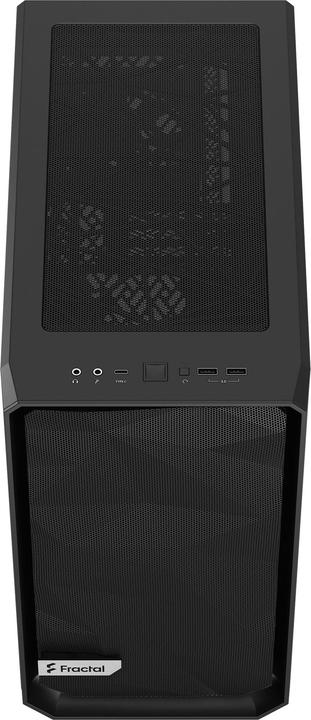

Front connectors | 2x USB 3.0, Headphones, Microphone, Power button, Reset button, USB 3.1 |
PC case features | Side windows |
Max. height CPU cooler | 167 mm |
Item number | 21635320 |
Manufacturer | Fractal |
Category | PC case |
Manufacturer no. | FD-C-MES2M-01 |
Release date | 2.8.2022 |
External links |
Colour | Black |
Exact colour description | Black |
Material group | Metal |
Material | Hardened glass, Steel |
PC case design | Mini Tower |
Form factor | DTX, Micro ATX (mATX), Mini-DTX, Mini-ITX |
Number of 3.5" drive slots (external) | 2 x |
Number of 3.5" drive slots (internal) | 2 x |
"Number of 2.5""/3.5"" combination slots" | 4 x |
"Number of 2.5"" drive slots" | 2 x |
Number of expansion card slots | 4 x |
Max. length graphics card | 331 mm |
Max. height CPU cooler | 167 mm |
Max length of power supply | 200 mm |
PC case features | Side windows |
Front connectors | 2x USB 3.0, Headphones, Microphone, Power button, Reset button, USB 3.1 |
Number of fans | 7 x |
Number of fan slots | 7 x |
Fan location | Bottom side, Front side |
Cooling properties | Water cooling possible |
Fans included | 1x 140mm |
Fans included | 1x 120mm |
Fans included | 1x 140mm |
Fans included | 1x 140mm |
Fan mount locations | 1x 140mm |
Radiator mount locations | 2x max. 120mm |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 120 mm fan, 140 mm fan, Meshify 2 Mini housing |
Height | 40.60 cm |
Length | 39.60 cm |
Width | 20.50 cm |
Weight | 6.62 kg |
Length | 46.30 cm |
Width | 45.70 cm |
Height | 28.40 cm |
Weight | 7.94 kg |
