Era is a testament to the pursuit of creating the perfect mini-ITX case. A compact enclosure that is free from the strict limitations of other small form factor systems. The result is a unique, elegant combination of design and outstanding craftsmanship.

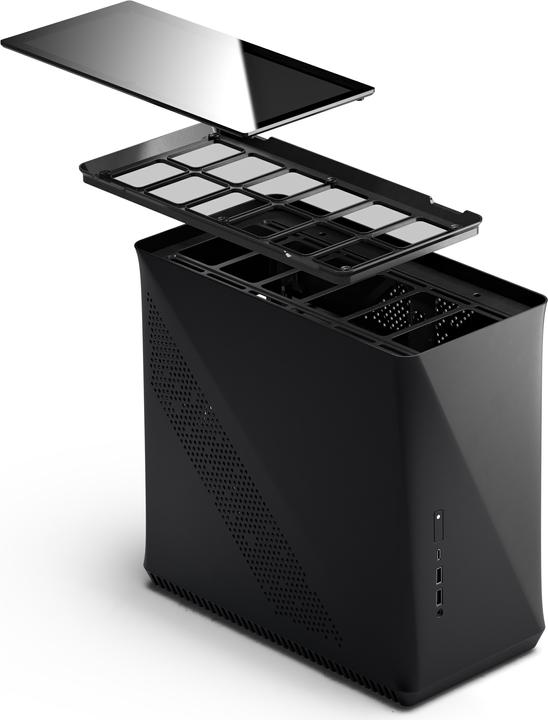

The chassis, made of steel and aluminum, is available in many colors and with various top panels, ranging from premium wood to tempered glass. Despite its small volume of 16 liters, the Era supports dual-slot GPUs, AiO water cooling with radiators up to 240 mm in length, high-end processors, and up to four drives, thanks to the innovative PSU mounting system. The efficient chimney design ensures optimal airflow and excellent cooling for the components.
Compact, refined, and stylish - Era sets impressive standards for small form factor cases and offers an unmatched design that fully utilizes the performance and functionality of high-end hardware.
PC case design | Mini Tower |
Number of 3.5" drive slots (internal) | 1 x |
"Number of 5.25"" drive slots" | 0 x |
Max. length graphics card | 295 mm |
Front connectors | 1x USB 3.2 Gen2 Type-C, 2x USB 3.0, Audio in/out |
Max. height CPU cooler | 120 mm |
Item number | 12860111 |
Manufacturer | Fractal |
Category | PC case |
Manufacturer no. | FD-CA-ERA-ITX-BK |
Release date | 6.3.2020 |
External links |
Colour | Black |
Exact colour description | Carbon |
Material group | Metal, Plastic |
Material | Aluminium, Steel |
PC case design | Mini Tower |
Form factor | Mini-ITX |
"Number of 5.25"" drive slots" | 0 x |
Number of 3.5" drive slots (internal) | 1 x |
"Number of 2.5"" drive slots" | 2 x |
Number of expansion card slots | 2 x |
Max. length graphics card | 295 mm |
Max. height CPU cooler | 120 mm |
Max length of power supply | 160 mm |
Front connectors | 1x USB 3.2 Gen2 Type-C, 2x USB 3.0, Audio in/out |
Number of fans | 2 x |
Number of fan slots | 5 x |
Fan location | Bottom side, Rear side, Top side |
Number of radiator mounts | 1 |
Radiator locations | Top side |
Cooling properties | Push/pull possible, Water cooling possible |
Fans included | 1x 80mm |
Fan mount locations | 1x 80mm |
Fans included | Optional fan |
Fan mount locations | 2x 140mm |
Fans included | Optional fan |
Fan mount locations | 2x 120mm |
Radiator mount locations | 1x max. 120mm, 1x max. 240mm |
Fan mount locations | 1x 80mm |
Radiator mount locations | 1x max. 240mm |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Installation material |
Height | 31 cm |
Length | 32.50 cm |
Width | 16.60 cm |
Weight | 4.20 kg |
Length | 43.70 cm |
Width | 39 cm |
Height | 25.20 cm |
Weight | 5.04 kg |
