Product details
Fluke Networks LinkIQ Cable and Network Tester LIQ-100
Manufacturer: Fluke Networks
Description: LinkIQ Cable and Network Tester
Type: LIQ-100
Suitable for: Other
Design: Connection Tester
Display Type: LCD/Monitor
The LinkIQ cable and network tester is the solution for checking cable performance up to 10G and troubleshooting network connection issues. LinkIQ validates cable performance using frequency-based measurements to calculate the maximum bandwidth (10BASE-T to 10GBASE-T) to ensure that tested connections meet performance requirements.
LinkIQ also provides diagnostics for the nearest switch, including offered data rate, switch name, port number, and VLAN information, as well as PoE and load testing up to Class 8 (90 W).
Additional features include: cable toning, port blinking, 802.1x authentication, remote office locators, and the ability to manage results via LinkWare PC.
Tests cable performance up to 10GBASE-T using frequency-based measurements. Included network functions: diagnostics of the nearest switch, including offered data rate, switch name, port number, and VLAN. PoE verification detects the PoE class (1-8) and power, and performs a load test of the available PoE from the connected switch.

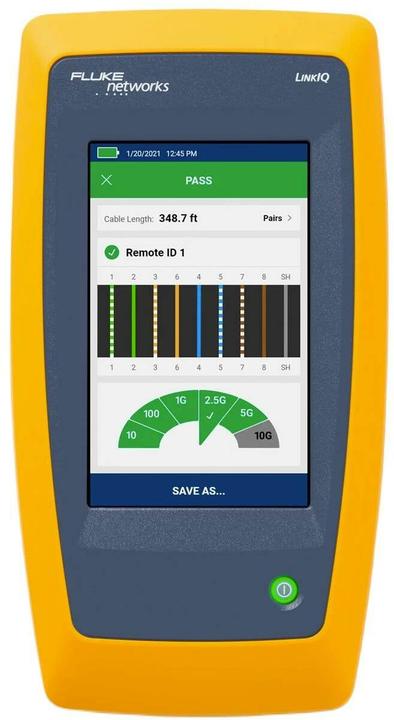

Displays cable length, wiremap, and distance to a break or short circuit. Manage results and print reports via LinkWare PC.

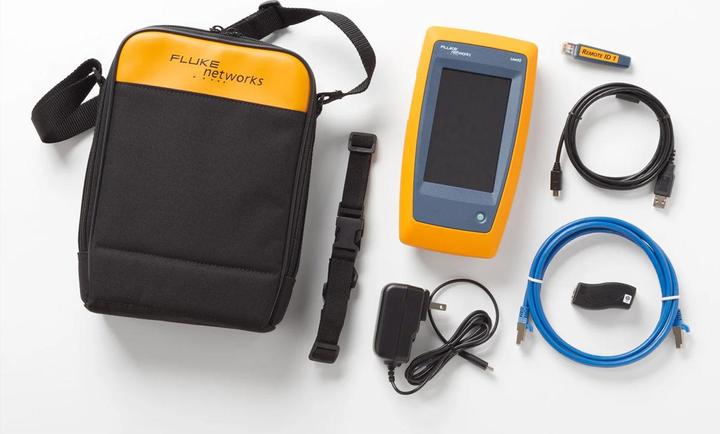

Included in the package: LinkIQ Cable and Network Tester with Remote ID 1, quick start guide, USB-C to USB-A cable, charging cable, Cat6A patch cable, RJ45/11 modular adapter, lanyard with remote ID holder, and carrying case. EAN: 0754082152163.
