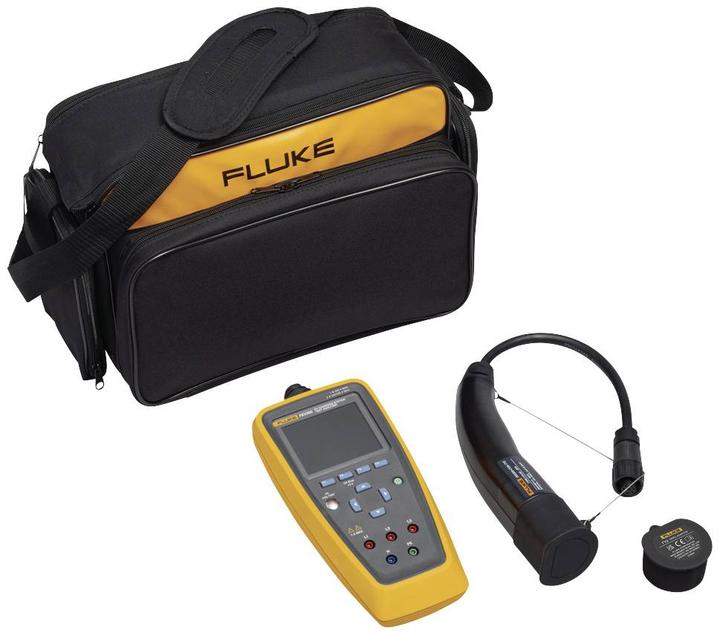

Fluke FLUK Analyser

The FEV350 analyzer for electric vehicle charging stations offers a complete solution for testing the safety and operational characteristics of AC charging stations for electric vehicles with Type 2 or Type 1 connectors. It is designed for technicians who need to quickly and efficiently conduct and document multiple tests without carrying several tools. Available measurements include: PE (protective earth) pre-check to ensure no hazardous voltage is present, visual inspection, tripping test of 30 mA residual current devices (RCD) and 6 mA RDC-DD, nominal voltage and phase sequence, pilot contact (CP) with signal form analysis, cable simulation via Proximity Pilot (PP), and fault testing. Supported measurements include protective earth resistance, insulation, and loop/network impedance with compatible Fluke multifunction installation testers for certification and inspection of installations via a wireless Bluetooth connection. Wiring configuration diagrams and information screens allow for seamless integration with the TruTest software for reporting. The solution includes the TruTest electric vehicle charging software module for documentation and reporting. The Fluke FEV350 analyzer provides predefined test plans and pass/fail indicators for measurement results to simplify analysis and reduce testing time.
