Fischertechnik Conveyor belt 24V Simulation model 24V
6 items in stock at third-party supplier
Product details

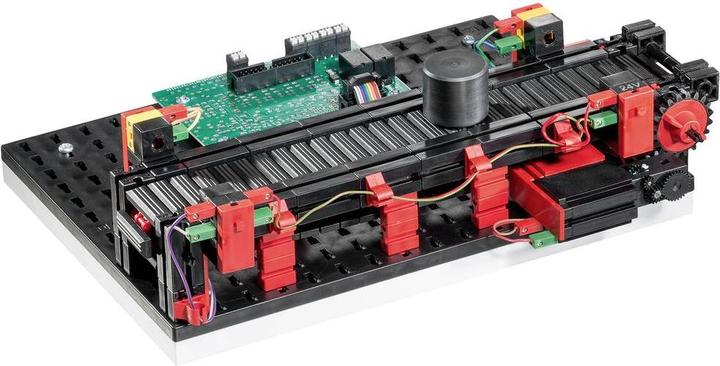

The conveyor belt, with a length of 275 mm, transports workpieces with a diameter of up to 29 mm. Multiple conveyor belts can be connected together to form a conveyor of any length. This model is ideally combinable with the training model 3-axis robot with a gripper. Connection to the PLC control: The model features a circuit board with relays for reversing the motor direction. All inputs and outputs are available on both a terminal block (26-pin, 2.54 mm pitch) and on terminal strips with push-in connections.
Development board type | Kit |
Item number | 35999097 |
Manufacturer | Fischertechnik |
Category | Development boards + Kits |
Manufacturer no. | 50464 |
Release date | 1.6.2023 |
Target group | Adults |
Development board type | Kit |
Operating voltage | 24 V |
Analogue outputs | 22 |
Analogue inputs | 1 |
Digital outputs | 35 |
Digital inputs | 22 |
CO₂-Emission | |
Climate contribution |

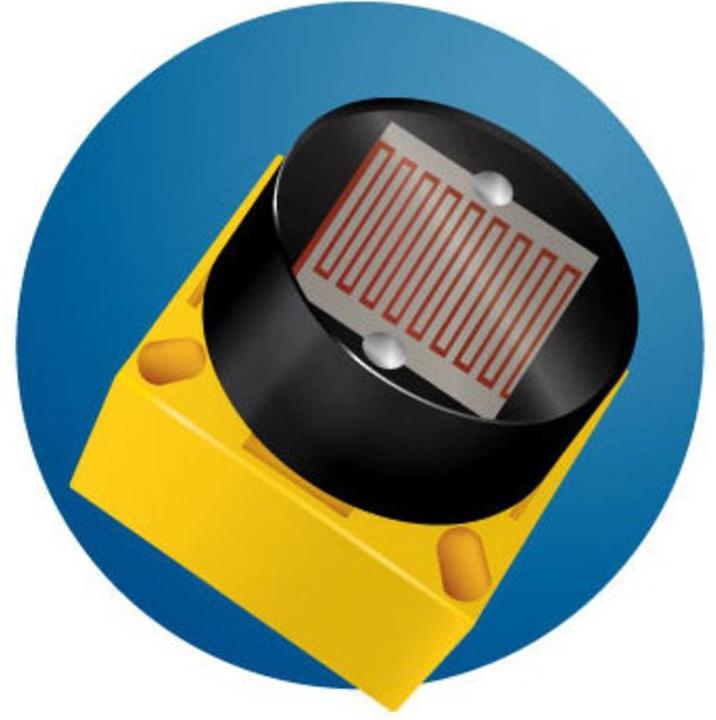

Scope of delivery | 2x light barriers LED, 2x phototransistor, Push-button (limit switch), XS motor (DC motor) |
Length | 275 mm |
