Fischer HEATSINK SK89-75KLSSR1

For use with: SSR1
Length: 75 mm
Width: 80 mm
Height: 78.6 mm

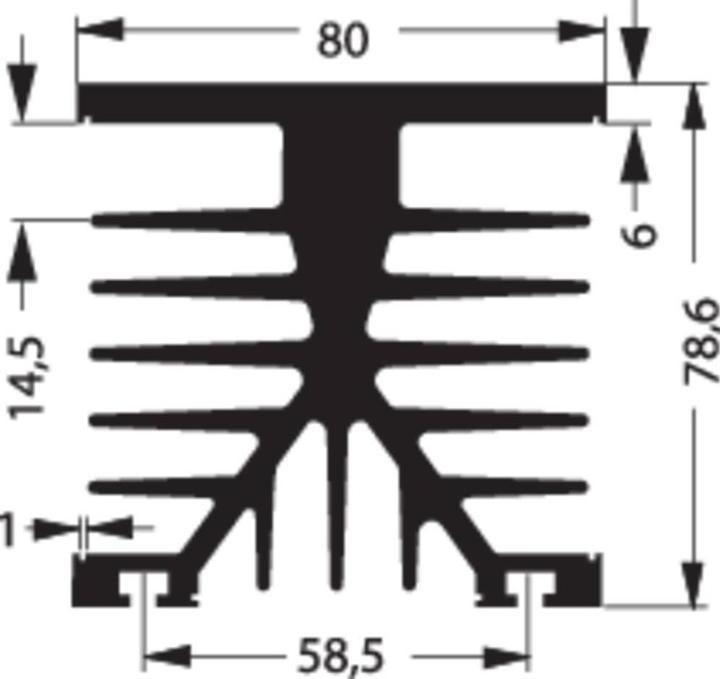

Dimensions: 75 x 80 x 78.6 mm
Thermal resistance: 1.3 K/W
Mounting: DIN rail
Color: Black
Material: Stainless steel

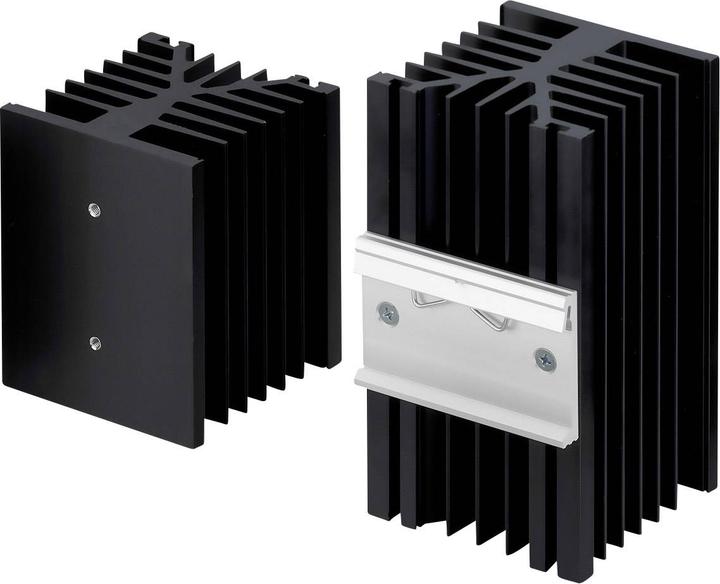

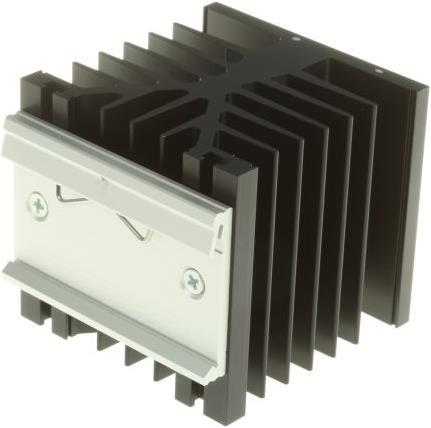

SK 89 - Strut cooler. The SK 89 cooler is equipped with guide grooves for cover plates or circuit boards and is available in lengths of 75 mm and 100 mm. The SSR types can be directly snapped onto the 35 mm DIN rail, and there are also threaded holes for mounting the components.
