Finder YESLY dimming actuator with PWM
Dimming actuatorOnly 1 piece in stock at supplier
Operating voltage2
Product details

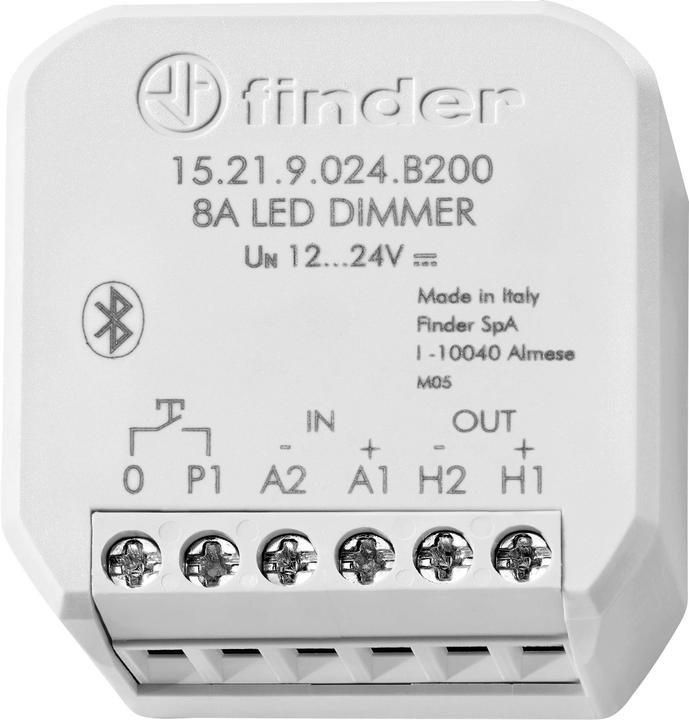

The YESLY dimmer from Finder is an advanced Bluetooth dimmer specifically designed for installation in wall boxes. With its PWM technology, it allows for precise control of LED light strips and offers a maximum load of 8 A. The dimmer is designed for an operating voltage of 12 to 24 V DC and features an input for a wired switch. The transmission range is up to 10 meters in open space, enabling flexible installation. The dimmer is equipped with various protection mechanisms, including overtemperature, overload, short circuit, and reverse polarity protection, to ensure safe use. Installation is simple and quick, and operation can be done via a push button or through app control via Bluetooth. The dimmer is made from high-quality thermoplastic and meets the IP20 protection rating.
- PWM technology for precise dimming of LED light strips
- Compatible with wired switches
- Transmission range of up to 10 meters in open space
- Protection mechanisms against overtemperature, overload, and short circuit
- Easy installation in wall boxes.
Actuator type | Dimming actuator |
Operating voltage | 12 V |
Mounting type | Flush-mounted |
communicating | Bluetooth |
Items per sales unit | 1x |
Item number | 32051139 |
Manufacturer | Finder |
Category | Actuator |
Manufacturer no. | 15.21.9.024.B200 |
Release date | 25.10.2022 |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | Plastic |
Actuator type | Dimming actuator |
Max. Switching capacity | 300 W |
rated current | 8 A |
Operating voltage | 12 V |
Number of switching outputs | 1x |
Mounting type | Flush-mounted |
Protection type (IP code) | IP20 |
Smart home | Compatible |
communicating | Bluetooth |
Requires Smart Home Hub | No |
Country of origin | China |
CO₂ emissions | 16.89 kg |
Climate contribution | CHF 0.40 |
Items per sales unit | 1x |
Length | 21.90 mm |
Width | 43 mm |
Height | 44.10 mm |
