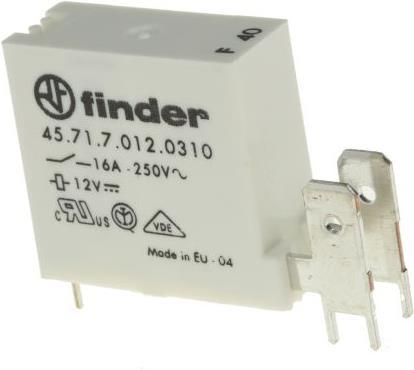

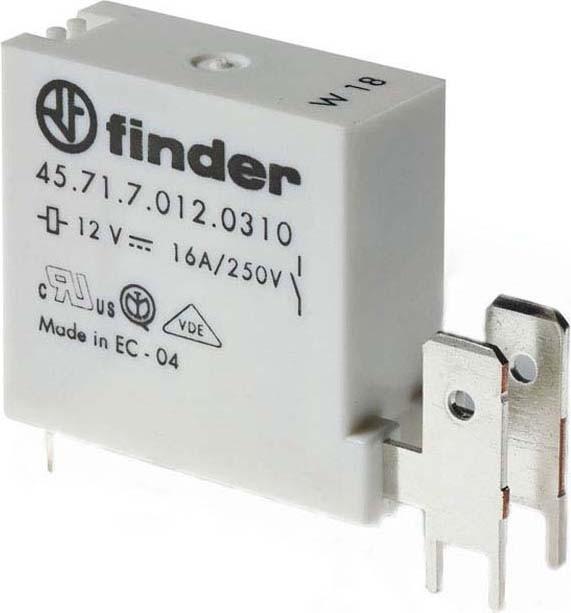

Finder SPNO PCB power relay,16A 12Vdc coil

Coil voltage: 12V DC
Contact arrangement: 1 pole normally open
Mounting type: PCB mounting
Connection type: Through hole mounting
Coil resistance: 400 Ω
Switching voltage AC max: 250V AC
Application type: Printed circuit board
Length: 40.7mm
Depth: 12.5mm
Height: 28.5mm
Dimensions: 40.7 x 12.5 x 28.5mm
Switching capacity DC max: 4 W

C-UL approval; SEMKO; SEV. Stock numbers 494-6348 and 494-6360 have an ambient temperature range of -40°C to +125°C, while stock number 749-5130 has a range of -40°C to +105°C. Stock numbers 494-6348 and 494-6360 feature 6.3mm Faston/Quick Connect style tab terminals. Finder's 45 series of miniature PCB relays are designed for photovoltaic (PV) inverters, domestic appliances, and other equipment requiring reinforced insulation, high ambient temperature, and full disconnection contacts. The 45 series has SPST-NO contacts rated up to 16A. With an extended 3mm contact gap, stock number 749-5130 meets the requirements of the EN60730-1 standard for household use and is rated for operation at an ambient temperature up to 105ºC. All Finder's miniature 45 series PCB relays have high sensitivity DC coils rated at 360mW and are designed with an 8mm clearance and creepage distance, ensuring safe separation of supply and output, and reinforced insulation between coil and contacts, meeting the requirements of EN60335-1. Choose between the 45.31 series (stock number 749-5130) which has PCB terminals or the 45.71 series (stock numbers 494-6348 and 494-6360) which have PCB and 0.25 inch Faston style terminals. Faston 250 terminals. Contact material: AgCdO. Insulation between coil and contact: 4000 V. Dimensions: 28.5 x 12.5 x 40.5mm. Operating temperature: -40 to +125°C.
