Product details

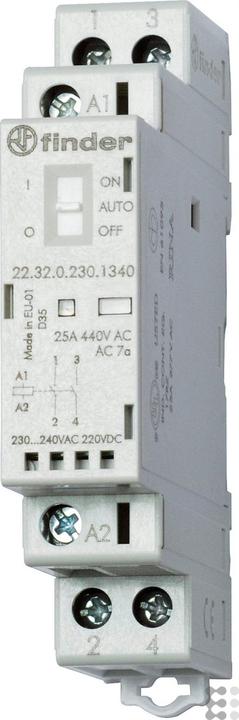

Installation contactor series 22, 25 A installation contactors according to DIN EN 61095: 2009. Designed for switching high inrush currents up to 120 A for 5 ms at the make contacts (lamp loads). Features contacts with double break and internal circuitry for AC/DC control (hum-free). It offers reinforced insulation between coil and contacts. An auxiliary switch with 1 NO + 1 NC or 2 NO contacts can be mounted on the side. Compatible with DIN EN 60715 TH35 rail.
Features include a mechanical indicator and an electrical indicator (LED) with an on/auto off switch.
Technical data:
- Drop-out time: 20 ms
- Response time: 30 ms
- Inrush current (5 ms): Max. 120 A
- Contact type: 1 NO/1 NC
- Contact material: AgSnO2
- Lifetime (electrical): 30 x 10^3 operations
- Lifetime (mechanical): 2 x 10^6 operations
- Rated voltage: 230 V DC/AC
- Rated current (AC-7b, AC-7c): 10 A
- Product dimension, width: 17.5 mm
- Product dimension, height: 60.8 mm
- Switching capacity (AC1/AC-7a): Max. 6250 VA / (AC15, 230 V/AC): 1800 VA
- Switching voltage: 250 V/AC / Max. 440 V.
