Finder Contactor

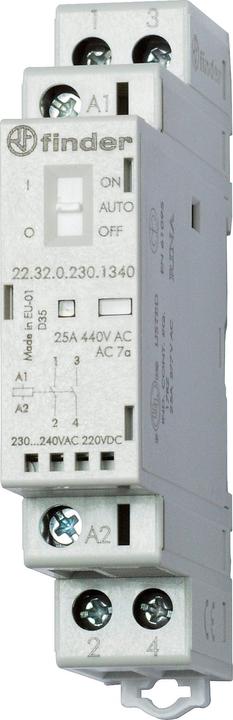

Finder contactor 22.32.0.230.1540
Manufacturer: Finder
Designation: Contactor 1S, 1Ö, 25A
Type: 22.32.0.230.1540
Rated operational voltage: 250...440 V
Rated operational current: 25 A
Utilisation category: 1
Rated actuating voltage: 230 V
Type of operating voltage: AC
Type of actuating voltage: AC/DC
Number of contacts as make contacts: 1
Number of contacts as break contacts: 1
Max. incandescent lamp load: 800 W
Incandescent lamp load: 800 W
Max. fluorescent lamp load: 300 VA
Max. fluorescent lamp load (duo circuit): 300 VA
Max. fluorescent lamp load (parallel compensated): 300 VA
Fluorescent lamp load (parallel compensated): 200 VA
Slider for manual switching: yes
Width in pitch units: 1
Installation depth: 60.8 mm
Additional devices possible: yes
Protection class (IP): IP20

Finder contactor 22.32.0.230.1540: further details
Installation contactor for 35 mm rail, 1 NO and 1 NC contact for 25 A / 250 V AC, contact material AgNi, max. switching capacity at 230 V AC: AC switching capacities at 230 V AC: AC1 6250 VA, AC15 1800 VA, 1-phase motor load, AC3 (230 V AC) 1 kW, energy-saving lamps 100 W, LED (230 V AC) 100 W, LV halogen lamps or LED with electronic ballast 100 W, LV halogen lamps or LED with electronic ballast 300 W. Coil: 230 V AC/DC, width 17.5 mm, with On-Auto-Off switch, LED and mechanical switch position indicator, relay protection class: IP 20, EAN: 8012823356556.
