Product details

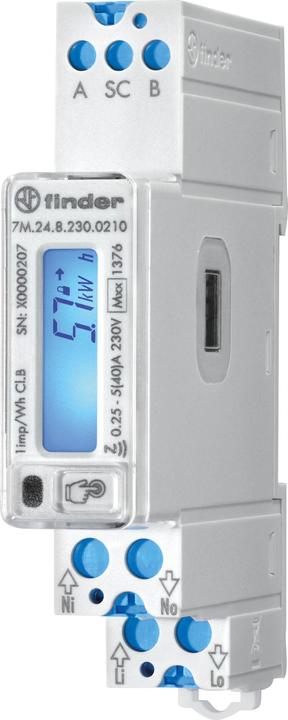

The Finder AC meter is a highly advanced electronic measuring device designed for the precise measurement of energy and reactive power consumption in single-phase AC systems. With a maximum current of 40 A and a rated voltage of 230 V AC, this meter provides a reliable solution for monitoring energy consumption. The digital 7-digit LCD display allows for clear and easy reading of consumption data, while the backlighting enhances visibility under various lighting conditions. The meter supports multi-tariff billing and is equipped with various communication interfaces, including RS-485, NFC, and infrared, enabling flexible integration into existing systems. Additionally, the meter is MID-certified, underscoring its accuracy and reliability.
- Bidirectional communication via Modbus (RS485), NFC, and IR
- Display of total and partial consumption as well as instantaneous values
- LED consumption indicator with 1000 impulses per kWh
- Calibrated and MID-certified for precise measurements
- Easy mounting on a DIN rail with a width of 17.5 mm.
Maximum current | 40 A |
Energy meter type | Energy meter |
mounting style | Top-hat rail |
Nominal voltage | 184 V |
Item number | 21013238 |
Manufacturer | Finder |
Category | Energy monitors |
Manufacturer no. | 7M2482300210 |
Release date | 28.5.2022 |
External links |
Energy meter type | Energy meter |
mounting style | Top-hat rail |
Maximum current | 40 A |
Nominal voltage | 184 V |
Display type | Digital |
Tariff execution | Multitariff |
Pulse output | Optical |
Polar type | 1-phase |
Accuracy class | B |
Protection type (IP code) | IP50 |
Country of origin | Italy |
CO₂-Emission | |
Climate contribution |
Height | 90.40 mm |
Length | 95.40 mm |
Width | 17.50 mm |
Length | 11 cm |
Width | 8 cm |
Height | 3 cm |
Weight | 106 g |
