Product details
Housing material: Polycarbonate
Dimensions outside: 255 x 180 x 100 mm
Length outside: 255 mm
Width outside: 180 mm
Height outside: 100 mm
IP protection class: IP66, IP67
Color: Gray
Shielded: No

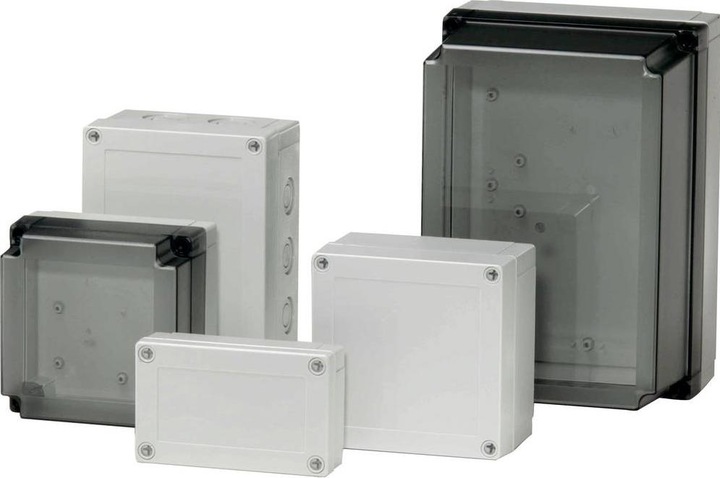

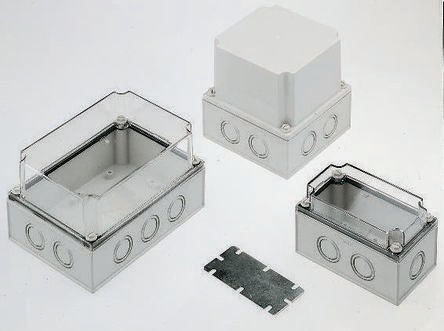

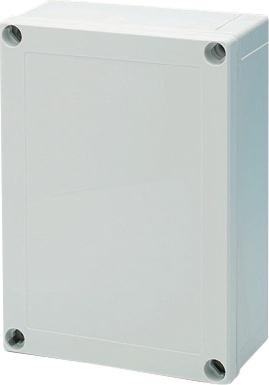

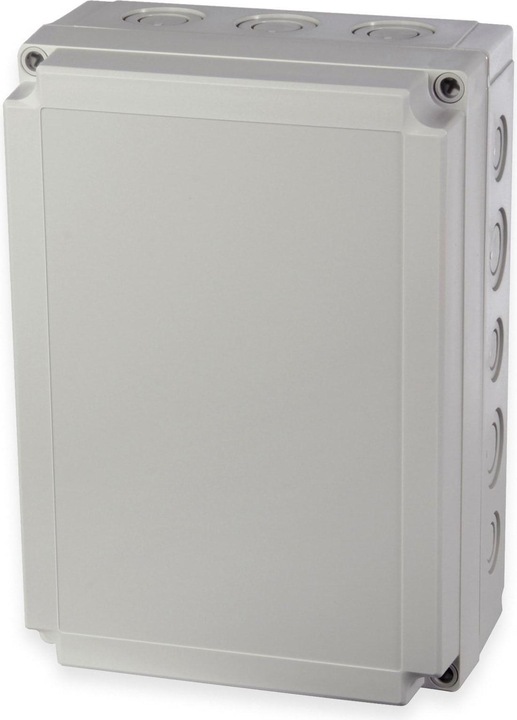

The MNX PCM series is an excellent choice for housing electronic and electrical components. The housing is made of light gray polycarbonate (RAL7035). This universal meter cabinet solution provides daily indoor and outdoor protection with the added value of metric knockouts.
Features and benefits include 50 mm deep shelves with various cover depths, an oil, water, and acid resistant PUR/TPE rubber gasket, lids secured with captive polyamide screws, and it is equipped with knockouts. It has flame resistance to UL94-V5, is self-extinguishing, and offers protection against media penetration to IP66/67. The temperature range is -40 to +80 °C (-40 to +120 °C short-term).
Typical applications include test and measurement system instruments, medical tools, transportation equipment, industrial control systems, and lighting applications.
This meter cabinet comes complete with a TPE gasket, screws for mounting plate/DIN rail, and cover screws for the lid.
