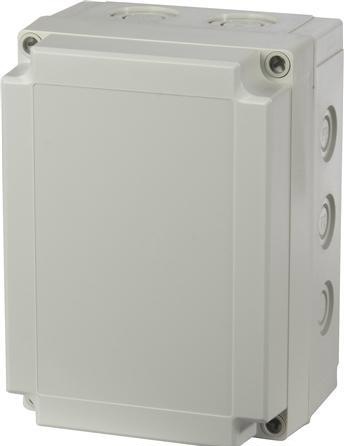

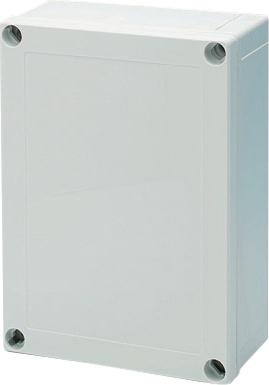

Fibox MNX Enclosure, Grey Lid, 180x130x100mm

Housing material: Polycarbonate
Dimensions outside: 180 x 130 x 100 mm
Length outside: 180 mm
Width outside: 130 mm
Height outside: 100 mm
IP protection class: IP66, IP67
Color: Gray
Shielded: No

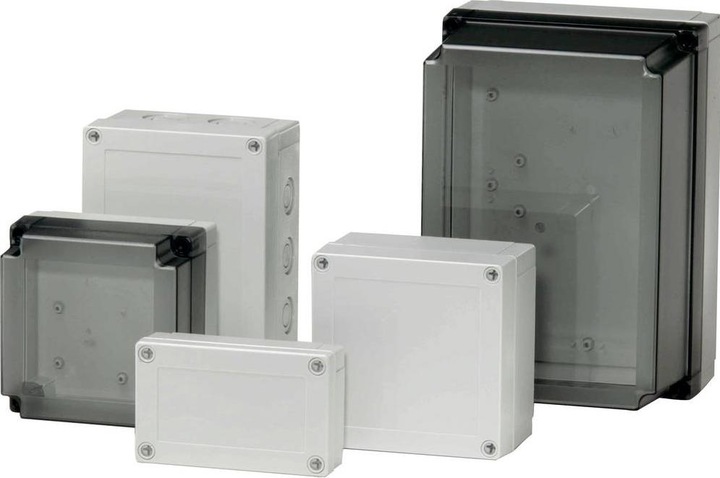

MNX PCM series - IP66/67. The Fibox PCM series is an excellent choice for housing electronic and electrical components. The housing is made of light gray polycarbonate (RAL7035). This universal meter cabinet solution provides daily indoor and outdoor protection with the added value of metric knockouts.

Features and benefits:

• 50 mm deep shelves with various cover depths
• Oil, water, and acid resistant PUR/TPE rubber gasket
• Lids secured with captive polyamide screws

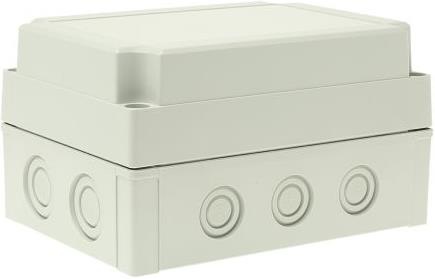

• Equipped with knockouts
• Flame resistance to UL94-V5
• Self-extinguishing
• Protection against media penetration to IP66/67
• Temperature range: -40 to +80 °C (-40 to +120 °C short-term)

Typical applications:

• Test and measurement system instruments
• Medical tools
• Transportation equipment
• Industrial control systems
• Lighting applications

What is included in the delivery?

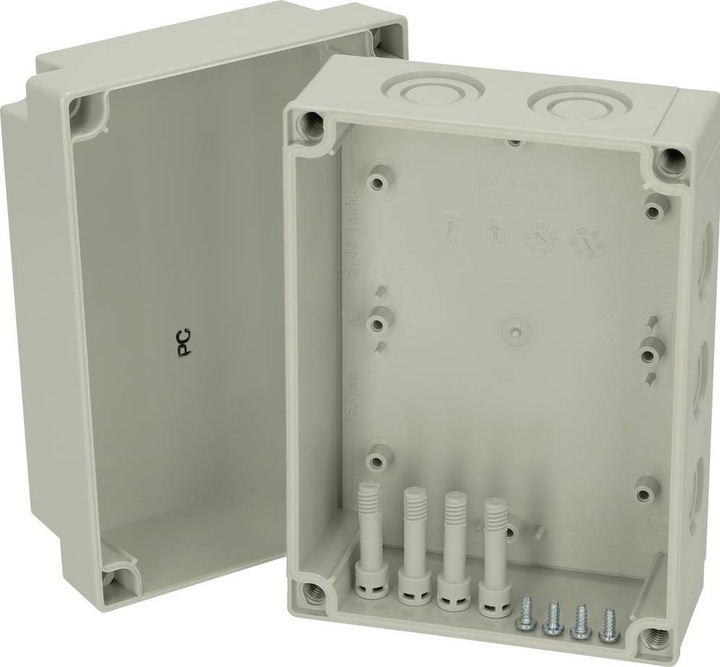

This meter cabinet comes complete with TPE gasket, screws for mounting plate/DIN rail, and cover screws for the lid.
