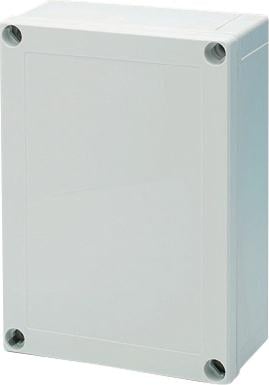

Fibox Box Mnx Abs

Enclosure material: ABS
External dimensions: 180 x 130 x 75 mm
External length: 180 mm
External width: 130 mm
External height: 75 mm
IP protection class: IP66, IP67
Color: Gray
Shielded: No

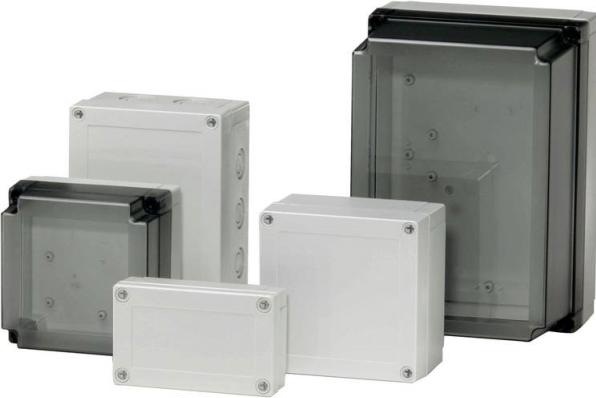

NEMA, ULC, EN50298, EN60950, and AS3132-1991. FIBOX MNX ABS series enclosures. The MNX ABS enclosures utilize world-class injection molding technology. They are designed to house and protect electrical and electronic components in the most demanding applications.

Features and benefits: Ideal for housing electrical and electronic components. The lid features a cutout and is perfect for membrane keypads. Protection class IP66/67 and compliant with EN60529. Temperature range: -40 °C to +80 °C for short periods, -40 °C to +60 °C for continuous operation. Dimensions: 100 x 100 x 35 mm to 255 x 180 x 175 mm, RAL 7035.

The IP protection class classifies the degree of protection against the ingress of solid objects (including body parts such as hands and fingers), dust, accidental contact, and water in electrical enclosures.

Frequently asked questions:
Can the box be used outdoors? Yes, the MNX series enclosures have an IP66/67 protection class.
Are they mountable? Yes, they are suitable for wall mounting or portable applications.
What is included in the delivery? Base body with screws for mounting plate/DIN rail, lid with silicone gasket, and lid screws made of polyamide.
