Product details
Height outside = 800 mm
Outer width = 600 mm
Outer depth = 300mm
Outer dimensions = 800 x 600 x 300mm
Housing material = Polycarbonate
Transparent door = No
IP protection class = IP66
Chassis plate = No
Door lock type = Key
Shield end plate = No
Color = Gray
Series = ARCA
Mounting kit = Yes
For protection of = Switchgear

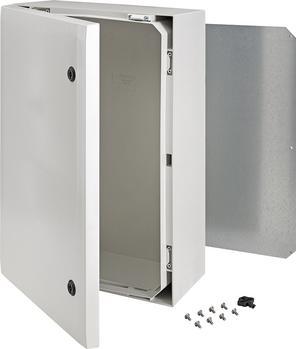

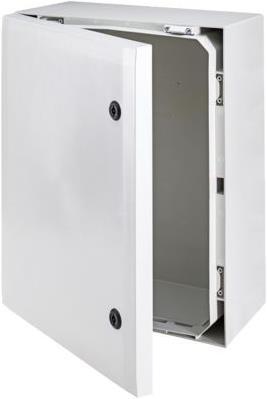

EN/IEC 62208, EN/IEC 61439-1-4 RoHS Directive 2011/65/EU Low Voltage Directive 2006/95/EC (up to 1500 V dc) FIMKO certificate. Cabinet, door with PUR seal and 3 mm double bit lock(s) with key. Fibox ARCA cabinet for wall mounting. Fibox ARCA cabinet is an ideal solution for harsh and demanding environments. The main body of the cabinet is made of rugged, UV-resistant, corrosion-protected polycarbonate and has high impact resistance. Door opens 120° for easy access to contents and features pre-molded mounting bolts inside Inclined design on base for improved weather resistance Patented hinge design for easy installation and pleasing appearance Double-bit locking and interchangeable lock inserts Mounting hardware on base, Cover and four sides Large and secured basket with PUR material for high quality sealing Specially formed ribbed construction and double corners provide added strength and rigidity All wall mounting options outside sealing area help maintain IP66 rating and IK10 fire resistance: UL 94-5VA Electrically isolated up to 1500 V dc Light gray RAL 7035 Halogen free, UV resistant with good chemical resistance.
