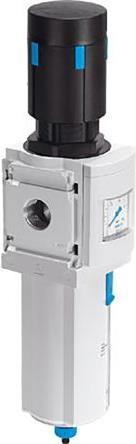

Festo G3/8 Filter Regulator

Manufacturer series = MS6-LFR
Connection connection = G3/8
Drain type = manual
Filter size = 40µm
Gauge connection = G 3/8
Gauge connection thread size = 3/8 inch
Connection thread size = 3/8 inch
Operating pressure max = 10 bar (UL), 20 bar
Operating ambient temperature max. = +60°C
Process operating temperature min. = 0 (UL) °C, -10 °C
Operating pressure min. = 0.8bar
Ambient temperature range = -10 to +60°C

MS-LFR Series Filter Regulator. A combined pressure regulator and filter from Festo. The MS4 and MS6 pneumatic filter regulators remove contaminants from compressed air up to a particle size of 5 μm or 40 μm (depending on the filter cartridge). Available in pressure ranges of 0.3 bar to 7 bar and 0.5 bar to 12 bar, the MS series filter regulators have a high flow rate and integrated return for draining air from port 2 to port 1. Available with G1/8 or G1/4 connections. Features and Benefits. Constant outlet pressure with return Choice of fully automatic or manual drain Plastic or fully integrated metal shell protection Can be equipped with analog pressure gauge or sensor with LCD display Rotary knob with detent can be locked to prevent change settings.
