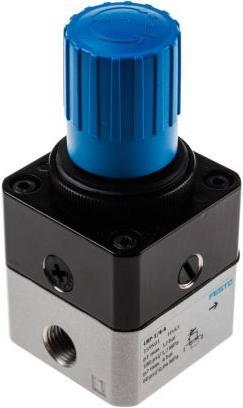

Festo 0.05 to 2.5 bar Precision Regulator G1/4

Connector = G1/4
Outlet pressure min. = 0.05bar
Outlet pressure max. = 4bar
Inlet pressure max. = 12bar
Gauge connection size = G1/4
connection thread size = 1/4 inch
pressure gauge connection thread size = 1/4 inch
Flow rate max. = 2300l/min
Flow rate typ. = 2000l/min
Connection standard thread = G
Operating temperature min. = -10°C
Operating temperature max. = +60°C
Overall dimensions = 50 x 50 x 111mm

LRP Series Precision Pressure Regulator. The Festo LRP series precision pressure regulator is suitable for sensitive applications where hysteresis of 0.02 bar is required. The outlet pressure can be adjusted within the pressure control range. In the event of a compressed air supply failure, the outlet pressure is vented through the secondary vent connection. Precise pressure adjustment possible in both static and dynamic applications Operating pressure fluctuations are almost fully compensated Good response to rapid changes in operating pressure and flow rate.
