Ferrofish A32pro Multimode

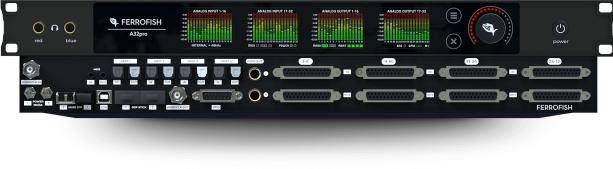

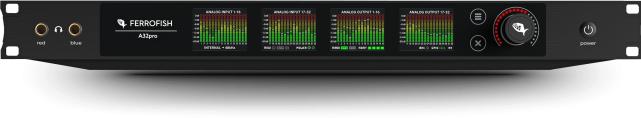

The A32pro is based on a new modular hardware platform and is packed with analog and digital interfaces. In addition to the 32 x 32 symmetrical analog inputs and outputs in studio quality and the stereo main out with up to 192 kHz, the A32pro offers the most widely used digital audio interfaces with ADAT and MADI. In addition to the optical first MADI module, another SFP-MADI module can be added. Various modes allow for redundant operation of both interfaces: if one fails, the other is automatically activated. Speaking of redundancy: if desired, two power supplies can be connected to the device. All power supplies and interfaces are continuously monitored: in the event of a failure, an error message is displayed on the TFT screens and on the General Purpose Output to connect it with additional hardware. The compact 1U converter is equipped with 32 x 32 symmetrical analog channels that terminate in eight D-SUB connectors. They deliver studio levels of up to +20 dBu, individually adjustable in 1 dB steps. The sophisticated design with state-of-the-art ESS converters, accompanied by a temperature-compensated clock and jitter reduction PLL, guarantees the best crystal-clear sound up to 192 kHz. The A32pro is not just a converter, but also a digital format converter for integrating your existing and future MADI and ADAT devices, thanks to its flexibility with the help of an advanced routing matrix.
