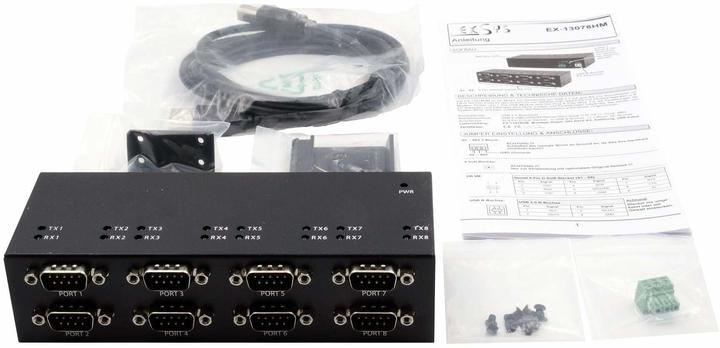

Exsys USB 2.0 to 8S serial RS-232 ports, metal housing, with FTDI chip set

Ratings
BrandMore from Exsys
Delivered between Tue, 7.4. and Wed, 8.4.
5 pieces in stock at supplier
free shipping

Product details

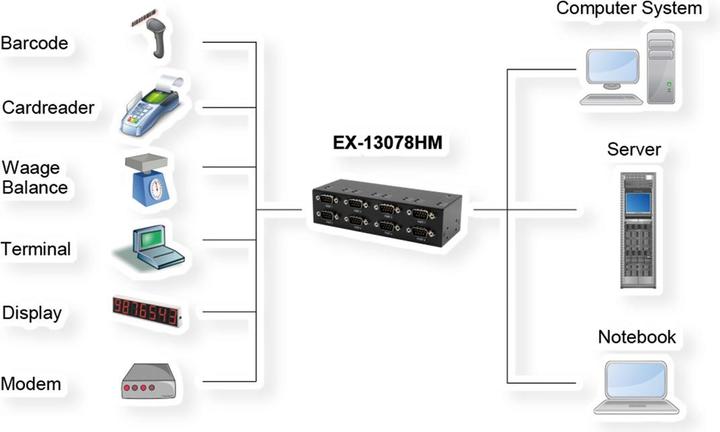

The EX-13078HM USB 2.0 to Serial RS-232 in a metal housing provides eight serial RS-232 high-performance UART 16C550 outputs. It is designed to expand eight additional serial outputs in a robust metal enclosure for desktop computers or laptops via the USB 2.0 bus. The EX-13074HM features LED indicators for data transmission on each port and comes with two brackets for wall mounting and a DIN rail kit for attachment to a carrier rail in a 19" rack. An optional power supply is available via a terminal block and a DC socket.

Interface: RS-232 V.24
FIFO Buffer: 16C550 with 16 bytes
I/O Addresses and Interrupts: assigned by the operating system
Data Bits: 7 and 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
RS-232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power Supply from USB Bus (Bus Power)

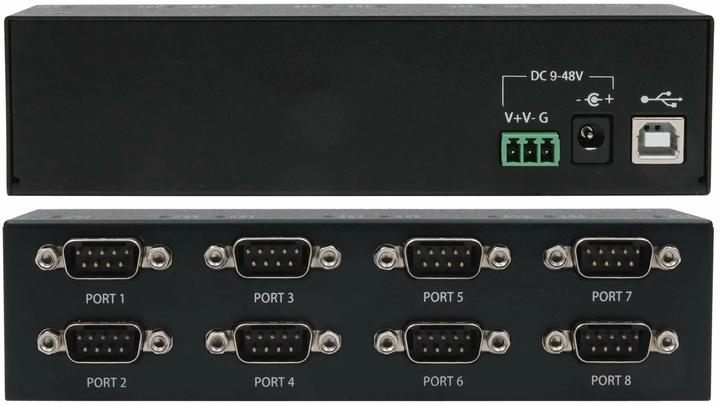

Terminal Block 9~48VDC and DC socket for optional power supply
LED indicator for TX and RX active
Chipset: FTDI.

Key specifications

Connection A
USB-A
Connection B
RS-232
Documents
Technical data sheet.pdf, Manual.pdf

General information

Item number
23214868
Manufacturer
Exsys
Category
Converters
Manufacturer no.
EX-13078HM
Release date
27.7.2022

Converter properties

Connection A
USB-A
Connection B
RS-232

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
74.75 kg
Climate contribution
CHF 1.77

Package dimensions

Length
24.60 cm
Width
17.70 cm
Height
5.40 cm
Weight
662 g
