Product details

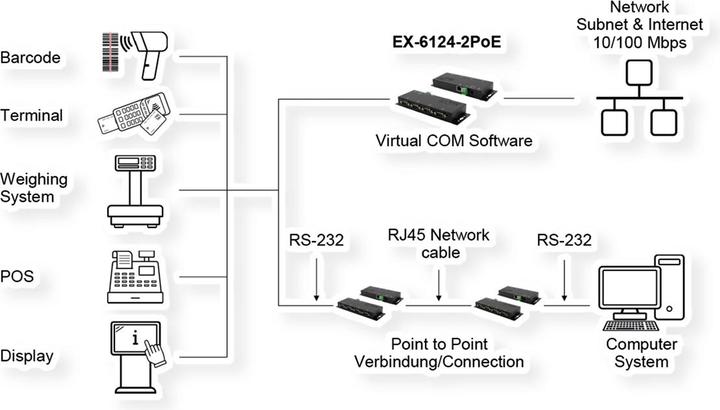

The EX-6124-2 is a serial multiprotocol RS-232/422/485 device server designed to connect serial RS-232/422/485 devices, including point-of-sale systems, barcode scanners, sensors, measuring devices, weighing systems, CNC controls, and PLCs, to an IP-based Ethernet network. The serial devices are connected via Ethernet and are available for sharing within the subnet and the Internet. Remote configuration is accomplished through extensive network protocols such as TCP Server, TCP Client, UDP, VCOM, serial Telnet, RFC2217, Remote-Pair-Master-Slave, or Modbus RTU. To ensure backward compatibility with serial legacy devices running existing COM port application software, the EX-6124-2 provides a virtual COM port (VCOM) that perfectly migrates your serial application without modifying the software. Additionally, serial devices can communicate with each other in peer-to-peer mode without the need for an intermediary PC or conversion software.
Interface RS-232/422/485 V.24
15 kV ESD surge protection for all serial signals
Data Bits: 5, 6, 7, 8 / Parity: None, Even, Odd, Mark, Space
RS-232/422/485 Signals: TXD, RXD, RTS, CTS, DTR, DSR, DCD, and GND
Ethernet Protocols:
TCP Server, TCP Client, UDP, VCOM, serial Telnet
RFC2217, Remote-Pair-Master-Slave, Modbus Server, Modbus Client
Direct access via socket port
Point-to-point connection, requires no software
Virtual-COM software available for download
Robust metal housing
For desktop or wall mounting, DIN rail kit available as an option

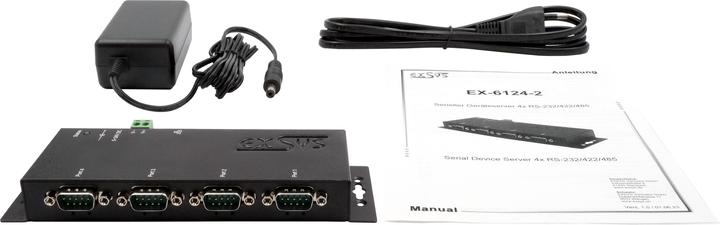

Package includes:
EX-6124-2, 12V/3A power supply, manual.
