Exsys Serial Device Server 4x RS232, PoE

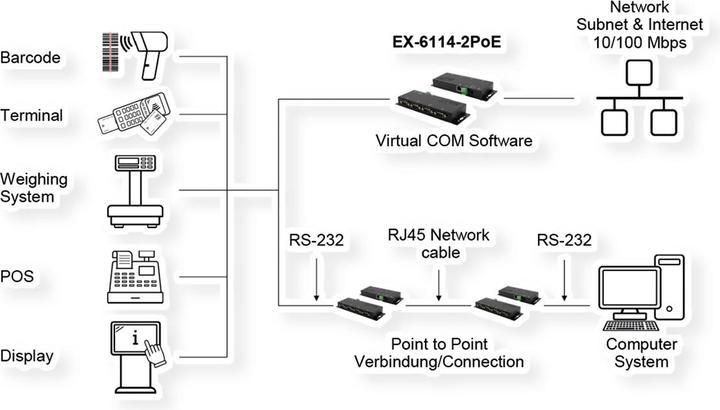

The EX-6114-2PoE is a serial multiprotocol RS-232 device server designed to connect serial RS-232 devices, including cash registers, barcode scanners, sensors, measuring instruments, weighing systems, CNC controllers, and PLCs, to an IP-based Ethernet network. The serial devices are connected via Ethernet and are available for sharing within the subnet and the internet. Remote configuration is carried out through extensive network protocols such as TCP Server, TCP Client, UDP, VCOM, and serial Telnet/RFC2217. To ensure backward compatibility with serial legacy devices running existing COM port application software, the EX-6114-2PoE provides a virtual COM port (VCOM) that perfectly migrates your serial application without modifying the software. The EX-6114-2PoE supports Power over Ethernet and can be powered directly through the Ethernet cable by a PoE-compliant power supply (PSE). Additionally, serial devices can communicate with each other in peer-to-peer mode without the need for an intermediary PC or conversion software.

Interface RS-232 V.24
15 kV ESD surge protection for all serial signals
Data Bits: 5, 6, 7, 8 / Parity: None, Even, Odd, Mark, Space
Fully compatible with IEEE 802.3af PoE (PSE) Type 1 = 15.40 W and IEEE 802.3af PoE+ (PSE) Type 2 = 34.20 W

RS-232 Signals: TXD, RXD, RTS, CTS, DTR, DSR, DCD, and GND

Ethernet Protocols:
TCP Server, TCP Client, UDP, VCOM, serial Telnet/RFC2217

Direct access via socket port
Point-to-point connection, requires no software
Virtual-COM software available for download
Robust metal housing
For desktop or wall mounting, DIN-rail kit available as an option

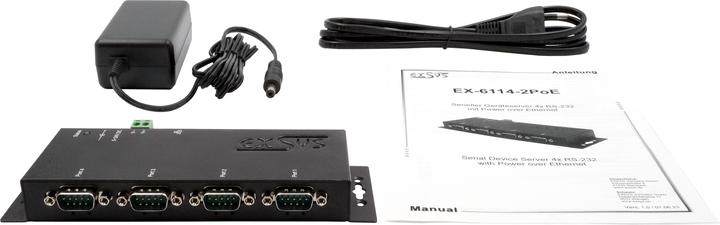

Package contents:
EX-6114-2PoE, power supply 12V/3A, manual.
